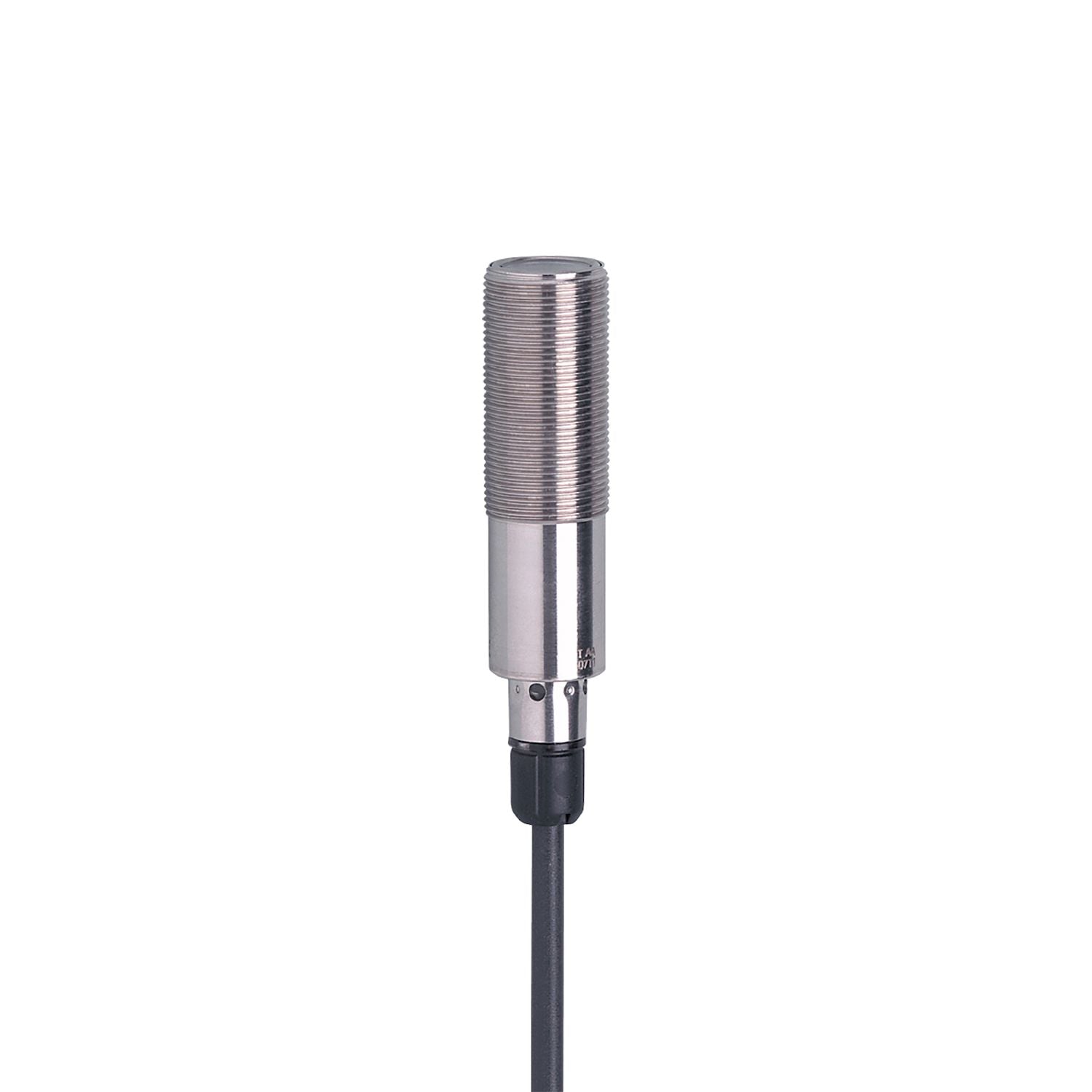

IFM OGS501 - Through-beam sensor transmitter OGS-OOKG/2M

Robust stainless steel housing for use in harsh industrial environments.
Very long range.
Ready for operation immediately thanks to fixed setting.
Wide range of fixing components for quick and easy mounting.
Excellent price/performance ratio

Type of light	red light
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	20
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 25
Max. light spot diameter [mm]	1000
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	629

Weight [g]	125.1
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 80.4
Thread designation	M18 x 1
Materials	stainless steel (1.4404 / 316L); PA; EPDM
Lens material	PMMA

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	lock nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PUR; 3 x 0.34 mm²
