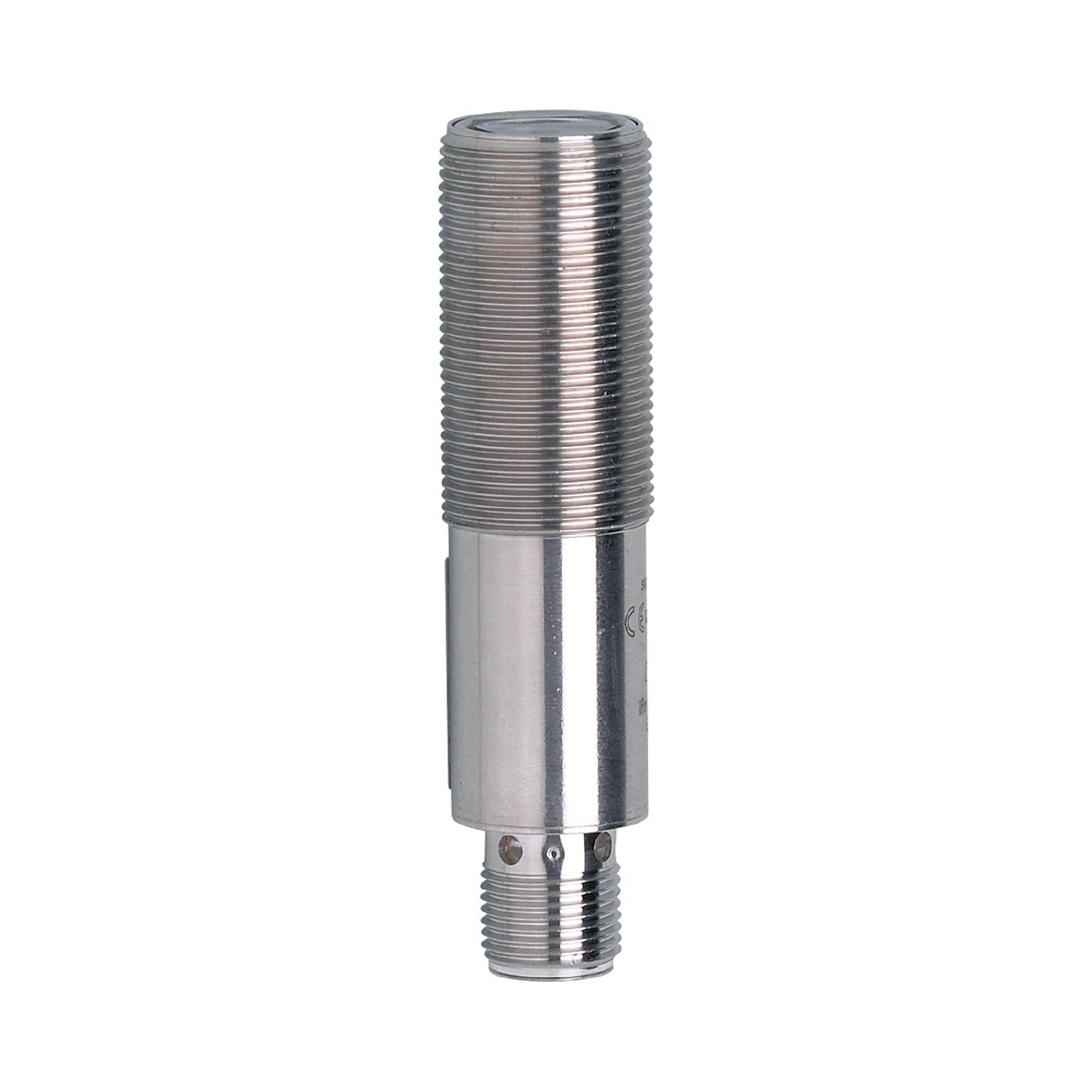

IFM OGS702 - Through-beam laser sensor transmitter OGSLOOKG/US100

Reliable detection of tiny objects.
Robust stainless steel housing for use in harsh industrial environments.
Very long range.
Simple alignment due to visible laser light spot.
Excellent price/performance ratio

Type of light	red light
Laser protection class	1
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	13
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Typ. lifetime [h]	50000

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 60
Range adjustable	no
Diameter of the smallest detectable object [mm]	3;(60 m)
Max. light spot diameter [mm]	150
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	1018

Weight [g]	63.9
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 72
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); PA; Sealing: EPDM
Lens material	PMMA

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
