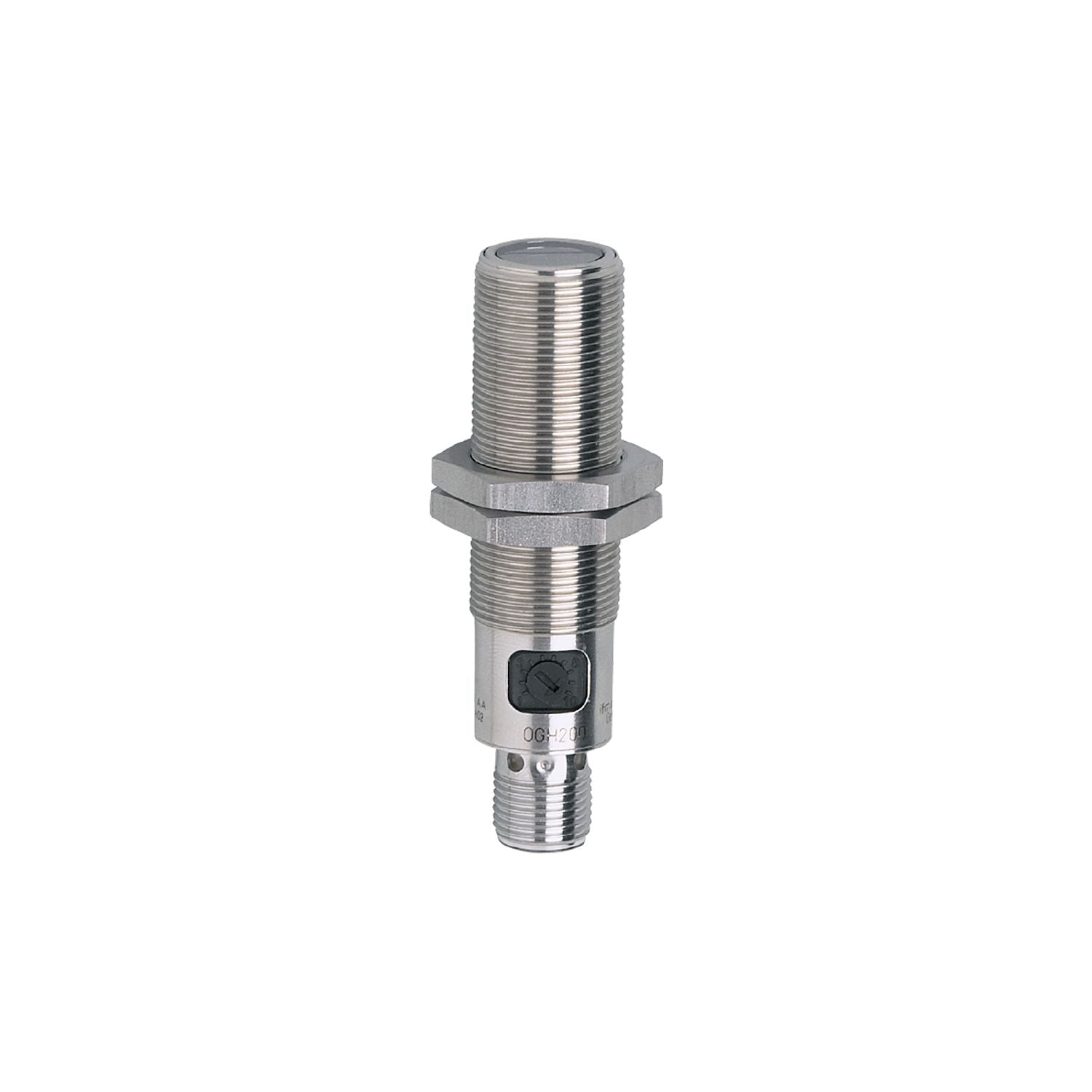

IFM OGT200 - Diffuse reflection sensor OGT-HPKG/US100

Robust stainless steel housing for use in harsh industrial environments.
Very long range.
Intuitive setting of the sensitivity via potentiometer.
Wide range of fixing components for quick and easy mounting.
Excellent price/performance ratio

Type of light	red light
Housing	threaded type

Function principle	Diffuse reflection sensor

Operating voltage [V]	10...36 DC;("supply class 2" to cULus)
Current consumption [mA]	20
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	800
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	2...600;(white paper 200 x 200 mm 90% remission)
Setting range [mm]	150...600
Range adjustable	yes
Max. light spot diameter [mm]	50
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	428

Weight [g]	53.6
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 72
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); operator interface: TPE
Lens material	PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow
Operating elements	potentiometer

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
