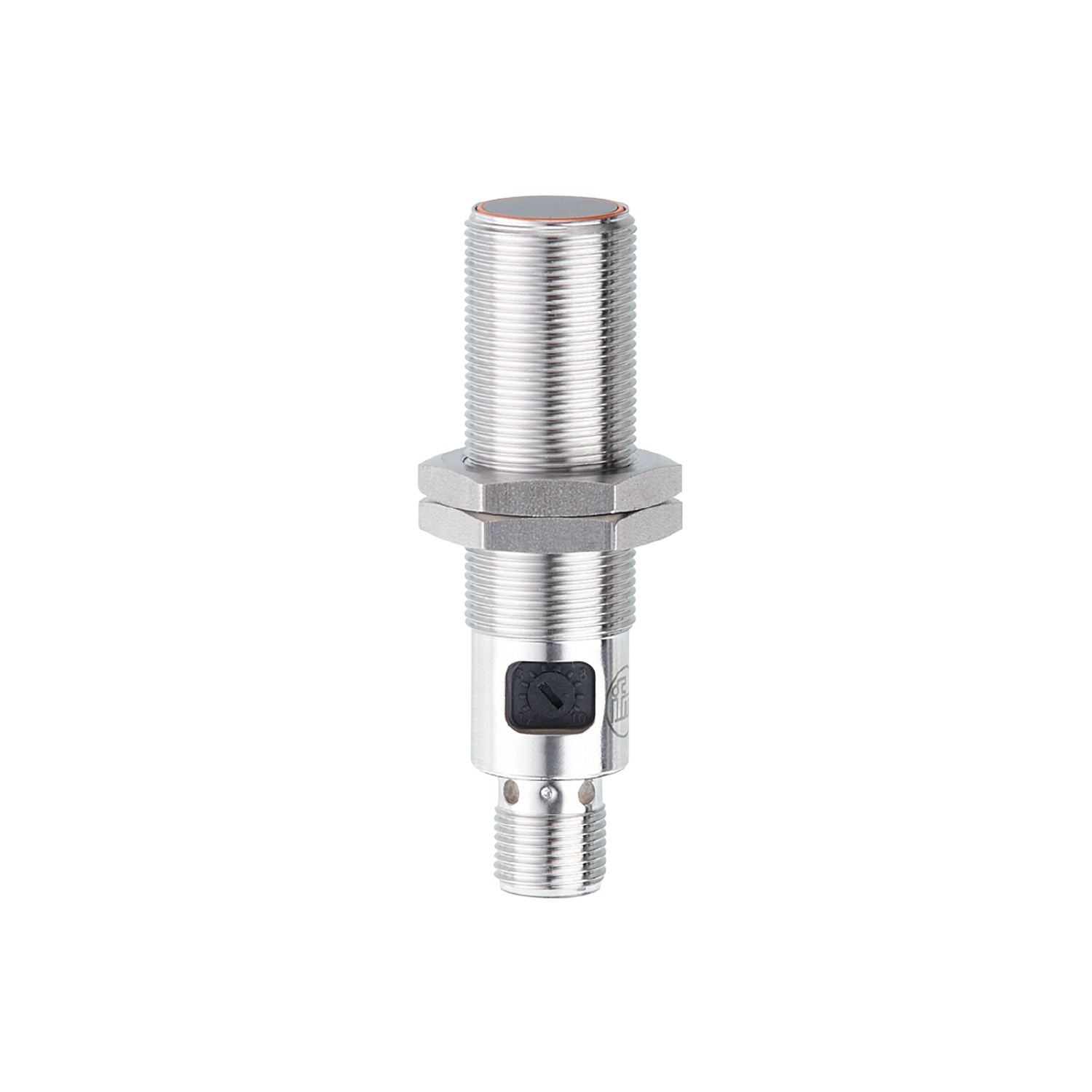

IFM OGW202 - Diffuse reflection sensor with background suppression OGWIHPKG/US/IO-LINK

Robust stainless steel housing for use in harsh industrial environments.
Precise background suppression.
Intuitive setting of the sensitivity via potentiometer.
Wide range of fixing components for quick and easy mounting.
Excellent price/performance ratio

Type of light	infrared light
Housing	threaded type

Special feature	Background suppression
Application [m]	0.025...2
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300
Type of light	infrared light
Wave length [nm]	940

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	25...400
Range adjustable	yes
Max. light spot diameter [mm]	200
Light spot dimensions refer to	at maximum range
Background suppression available	yes
Background suppression [m]	2

Measuring/setting range

Sampling rate [Hz]	10

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification; Switching Signal Channel; Process Data Variable; Device Diagnosis; Tech Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	10
Supported DeviceIDs	Type of operation DeviceID default 1161

Operating conditions

Ambient temperature [°C]	-20...55
Storage temperature [°C]	-40...85
Protection	IP 65
Max. immunity to extraneous light [klx]	8

Tests / approvals

EMC	EN 60947-5-2
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	690
UL approval	Ta -20...55 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	55.2
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 72
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); sensor surface: PMMA; ABS; operator interface: TPE; lock nuts: brass white bronze coated
Lens material	PMMA

Displays / operating elements

Display	switching status 4 x 90° LED, yellow
Operating elements	potentiometer

Accessories

Items supplied	lock nuts: 2 x M18

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	1 < 8 kLux 2 < 3 kLux 3 < 1 kLux

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]
