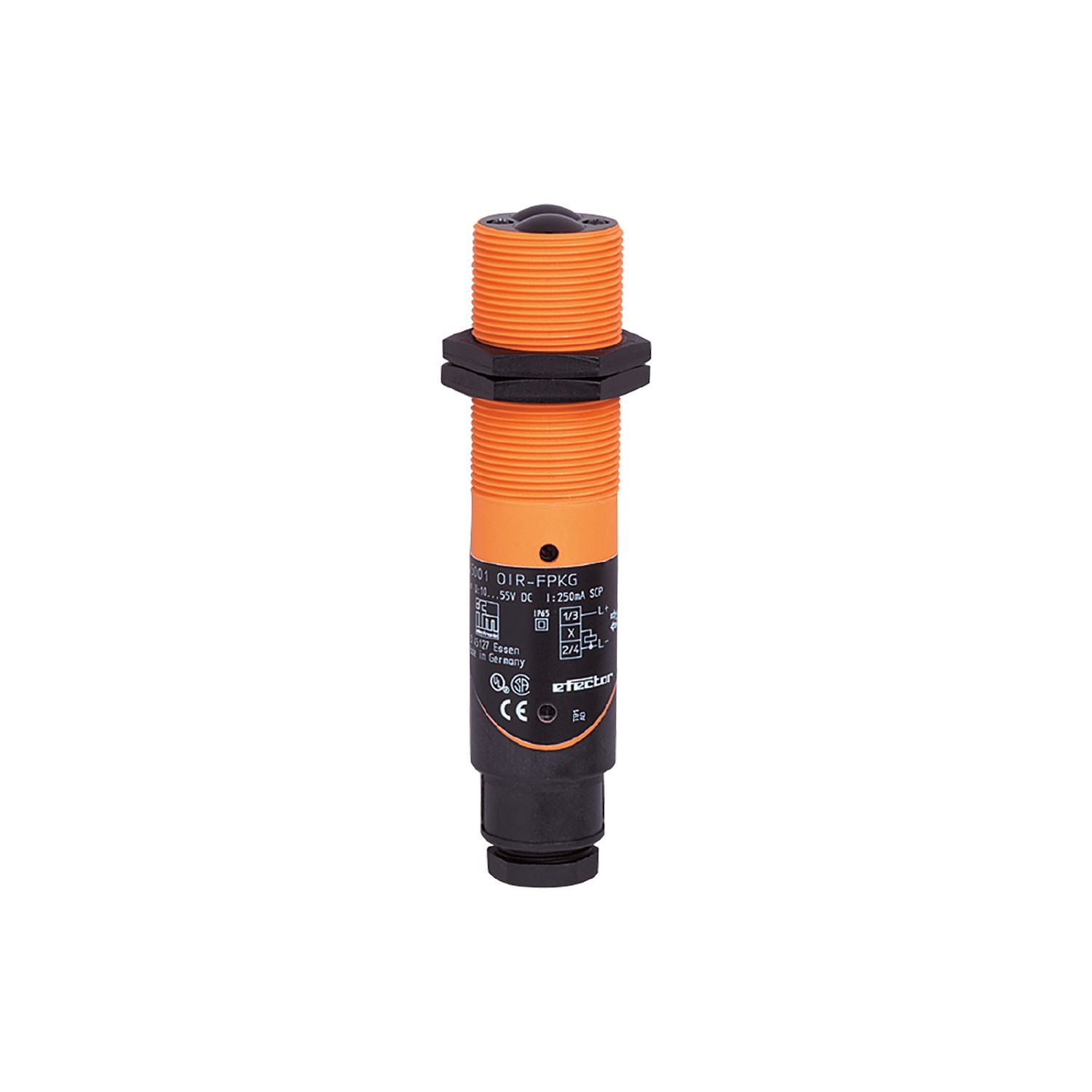

Very long range. With terminal chamber that can be rotated by 90°. Programmable light-on/dark-on mode. With combined AC/DC output and two-wire technology
Type of light
infrared light
Housing
threaded type
Function principle
Retro-reflective sensor
Operating voltage [V]
20...250 AC/DC
Protection class
II
Reverse polarity protection
no
Type of light
infrared light
Wave length [nm]
950
Outputs
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
10.5
Max. voltage drop switching output AC [V]
10.5
Minimum load current [mA]
15
Max. leakage current [mA]
6
Permanent current rating of switching output AC [mA]
250;(350 (...50 °C))
Permanent current rating of switching output DC [mA]
250;(350 (...50 °C))
Short-time current rating of switching output [mA]
2200;(10 ms / 0,5 Hz)
Switching frequency AC [Hz]
25
Switching frequency DC [Hz]
35
Short-circuit proof
no
Overload protection
no
Detection zone
Range referred to prismatic reflector [m]
0.1...4;(Prismatic reflector Ø 80 E20005)
Range adjustable
yes
Max. light spot diameter [mm]
280
Light spot dimensions refer to
at maximum range
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
309
Weight [g]
120.5
Housing
threaded type
Dimensions [mm]
M30 x 1.5 / L = 125
Thread designation
M30 x 1.5
Materials
PBT; PPO modified
Lens material
PMMA
Displays / operating elements
Display
switching status
1 x LED, yellow
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
lock nuts: 2
screwdrivers
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
