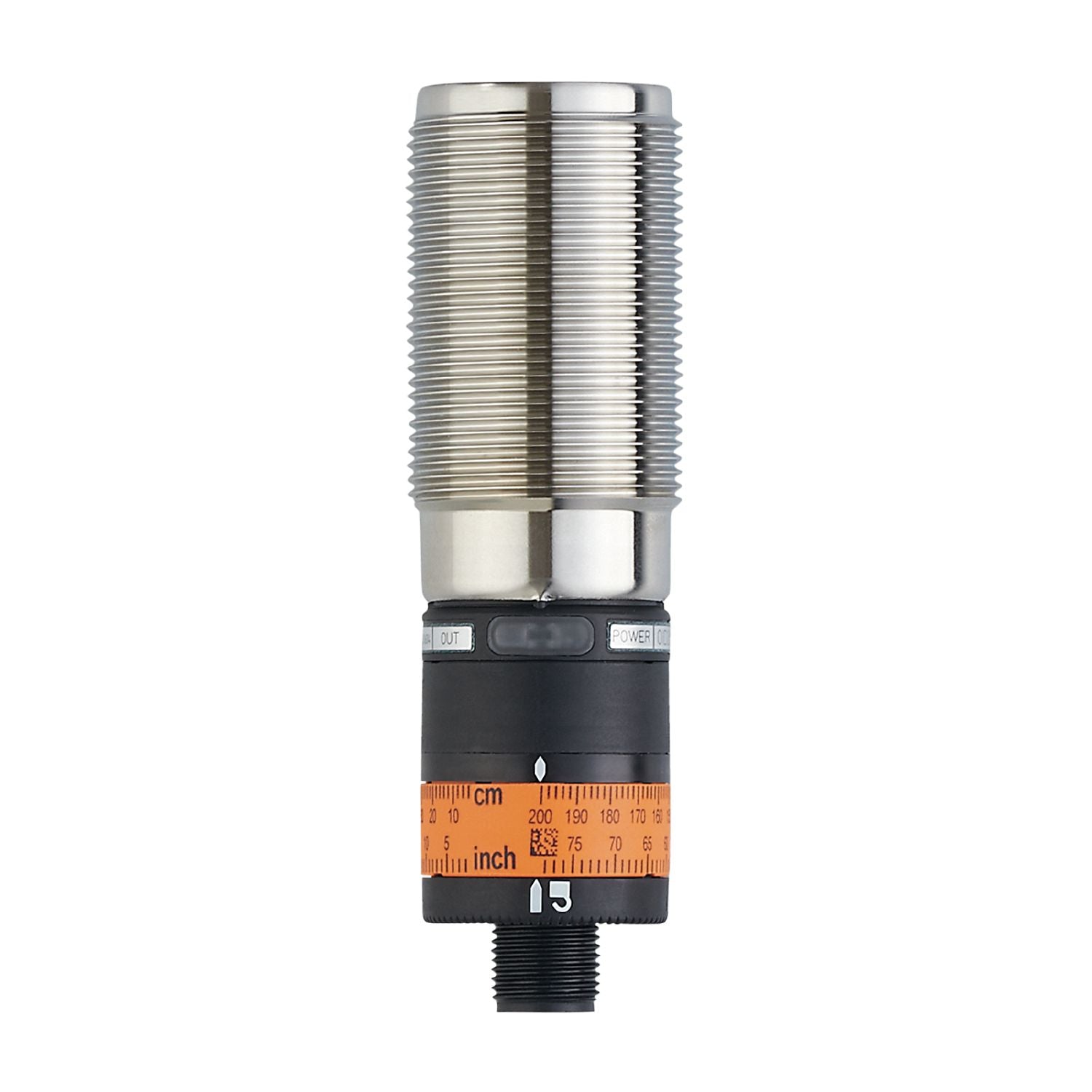

Very long range due to time-of-flight measurement. Reliable background suppression and colour-independent detection. Easy parameter setting via turnable, lockable setting ring. Laser protection class 1 for the requirements of the automotive industry
Type of light
red light
Laser protection class
1
Special feature
Background suppression
Operating voltage [V]
10...30 DC
Current consumption [mA]
75;(24 V)
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
650
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Electrical design
PNP
Number of digital outputs
2
Output function
normally open / normally closed;(complementary)
Max. current load per output [mA]
100
Switching frequency DC [Hz]
11
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot diameter [mm]
5
Light spot dimensions refer to
2 m
Detection range hysteresis [%]
< 5
Note on monitoring range hysteresis
black 6% remission
Background suppression available
yes
Background suppression [m]
< 20
Measuring/setting range
Measuring range [m]
0.03...2
Sampling rate [Hz]
33
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode
yes
Process data analogue
1
Process data binary
1
Min. process cycle time [ms]
6.6
Supported DeviceIDs
Type of operation
DeviceID
default
394
Operating conditions
Ambient temperature [°C]
-25...60
Note on ambient temperature
at ta < -10 °C warm-up is necessary, laser is off
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
239
Weight [g]
206.5
Dimensions [mm]
M30 x 1.5 / L = 100
Thread designation
M30 x 1.5
Materials
housing: stainless steel; front pane: PMMA; LED window: PC; PBT; PC; FKM
Displays / operating elements
Display
switching status
LED, yellow
operation
LED, green
Display unit
cm
Operating elements
setting ring
Accessories
Items supplied
lock nuts: 2 x M30, stainless steel
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
hysteresis graph
x:
distance [mm]
y:
Hysteresis [mm]
1 =
object black 6% remission
2 =
object white 90% remission
