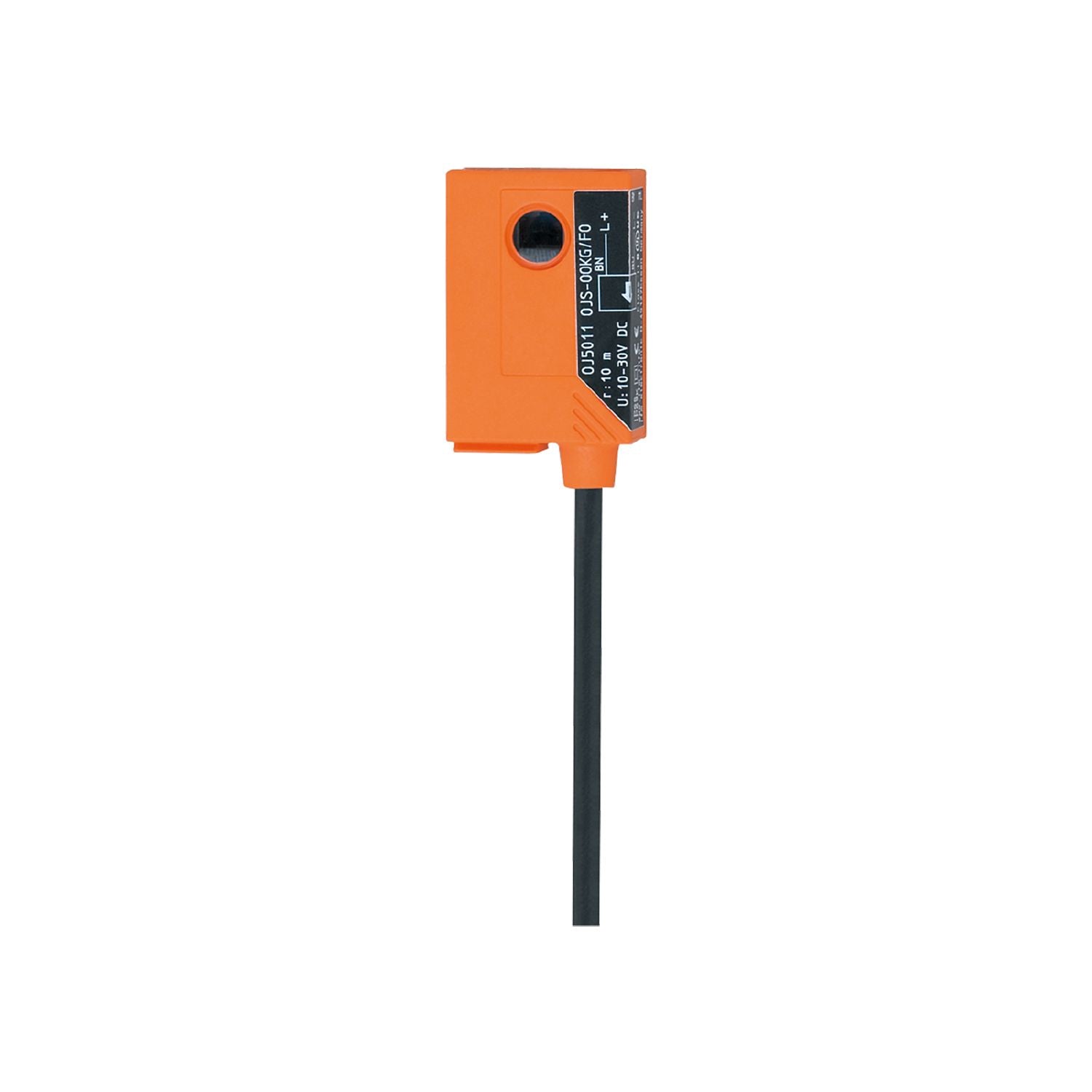

IFM OJ5011 - Through-beam sensor transmitter OJS-OOKG/FO

Particularly compact housing for use where space is restricted.
Very long range.
Simple alignment due to visible red light.
Easy mounting by clipping onto a mounting base

Type of light	red light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 19
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Overload protection	yes

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 10
Max. light spot diameter [mm]	1000
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1773

Weight [g]	71.5
Housing	rectangular
Dimensions [mm]	35 x 24 x 11
Materials	housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material	glass
Lens alignment	front lens

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	Basic clip: 1, E20964 screws: 2 x M3 x 16 spring washers: 2 Nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.14 mm²

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5011-01 — 13.04.2023 —
