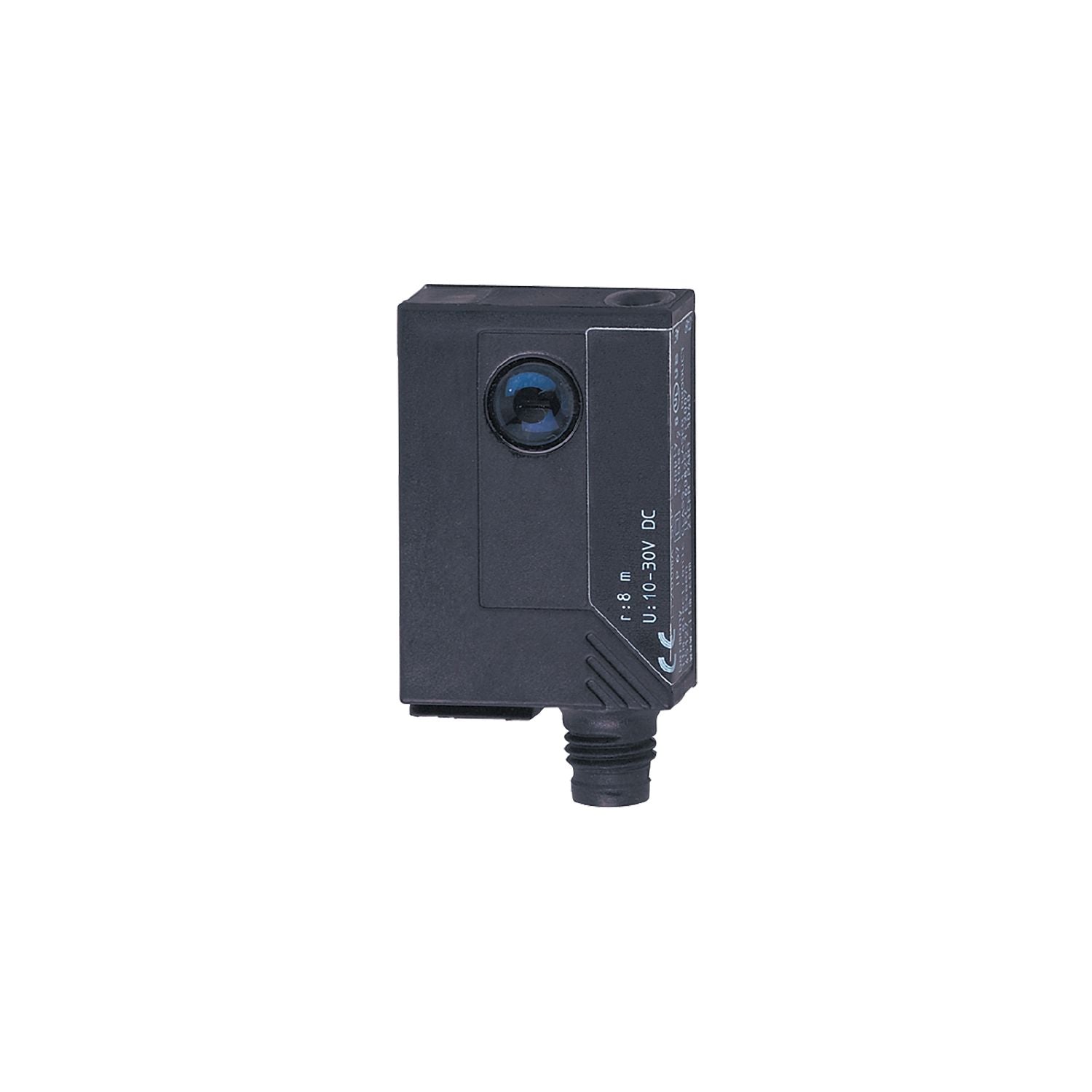

Reliable detection of tiny objects. Particularly compact housing for use in robotics, assembly and handling technology. Very long range. Intuitive setting of sensitivity and output function. Simple alignment due to visible laser light spot
Type of light
red light
Laser protection class
1
Housing
rectangular
Special feature
polarisation filter
Function principle
Retro-reflective sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 15
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
650
Typ. lifetime [h]
50000
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range referred to prismatic reflector [m]
8;(Prismatic reflector 50 x 50 mm E20722)
Range adjustable
yes
Diameter of the smallest detectable object [mm]
2.5;(0,1 m; 2,5 m: 4; 5 m: 8)
Max. light spot diameter [mm]
12
Light spot dimensions refer to
at maximum range
Polarisation filter available
yes
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
706
Weight [g]
28
Housing
rectangular
Dimensions [mm]
35 x 24 x 11
Materials
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment
front lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electronic lock
yes
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5014-03 — 13.04.2023 —
