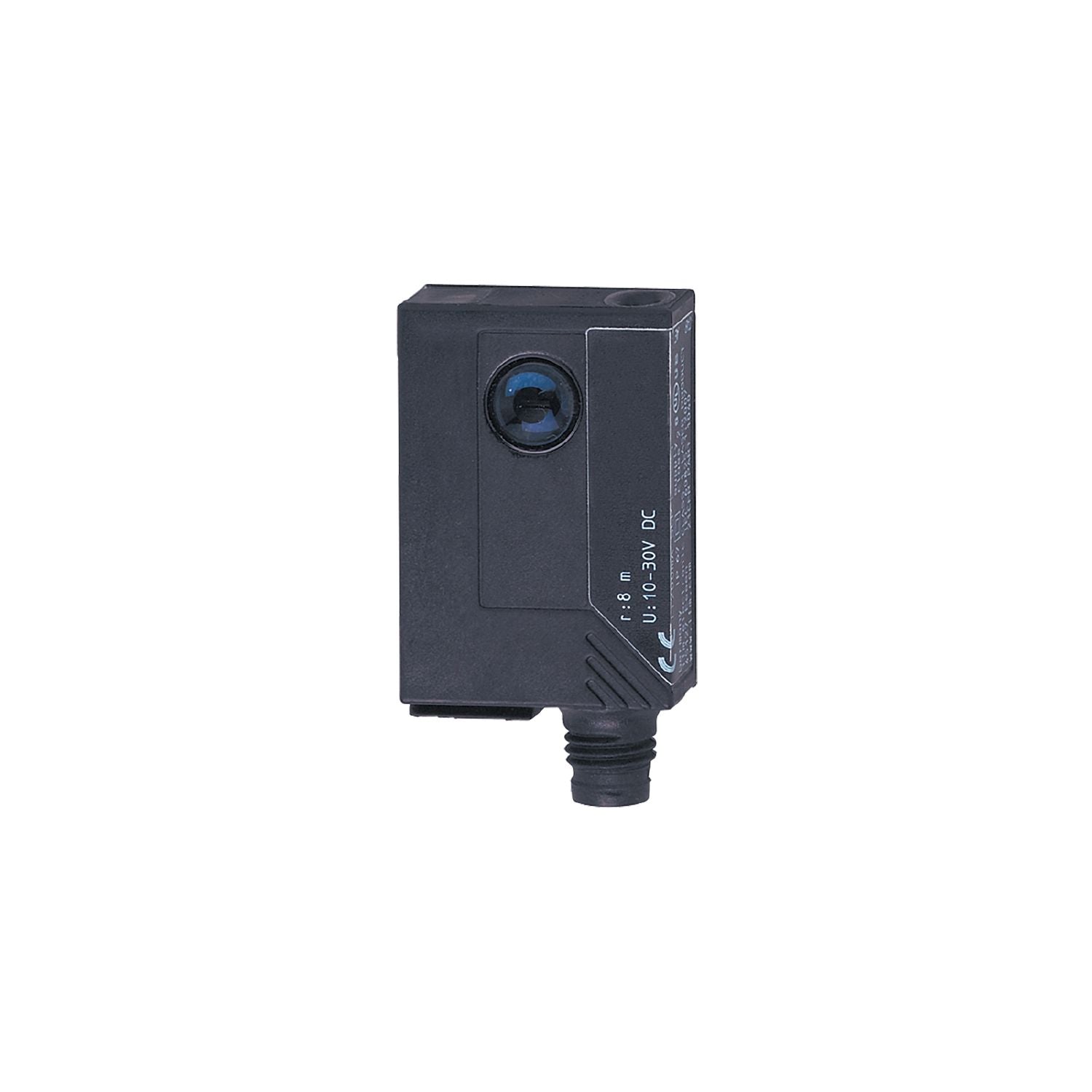

Reliable detection of tiny objects. Particularly compact housing for use in robotics, assembly and handling technology. Laser protection class 1 for the requirements of the automotive industry. Intuitive setting of sensitivity and output function. Easy mounting by clipping onto a mounting base
Type of light
red light
Laser protection class
1
Housing
rectangular
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 12
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
650
Typ. lifetime [h]
50000
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1200
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Transmitter / receiver
receiver
Range [m]
< 1
Range adjustable
yes
Diameter of the smallest detectable object [mm]
0.8
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
968
Weight [g]
27.2
Housing
rectangular
Dimensions [mm]
35 x 24 x 11
Materials
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment
front lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electronic lock
yes
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5020-03 — 13.04.2023 —
