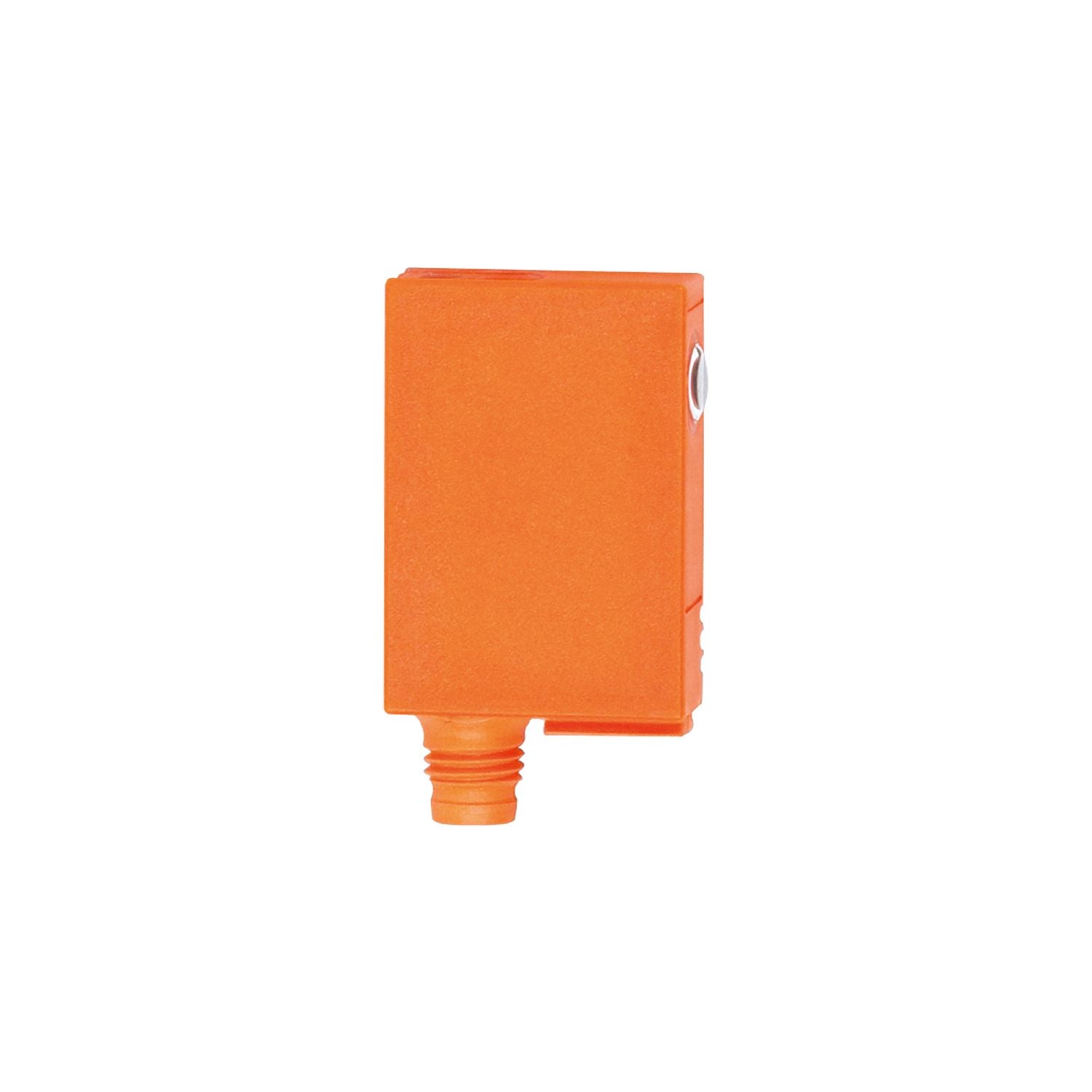

Particularly compact housing for use where space is restricted. Very long range. Simple alignment due to visible red light. Intuitive setting of sensitivity and output function. Easy mounting by clipping onto a mounting base
Type of light
red light
Housing
rectangular
Special feature
polarisation filter
Function principle
Retro-reflective sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 22
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
660
Outputs
Electrical design
NPN
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range referred to prismatic reflector [m]
0...2;(Prismatic reflector Ø 80 E20005)
Range adjustable
yes
Max. light spot diameter [mm]
64
Light spot dimensions refer to
at maximum range
Polarisation filter available
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
897
Weight [g]
38.8
Housing
rectangular
Dimensions [mm]
35 x 11 x 24
Materials
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electronic lock
yes
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5027-01 — 13.04.2023 —
