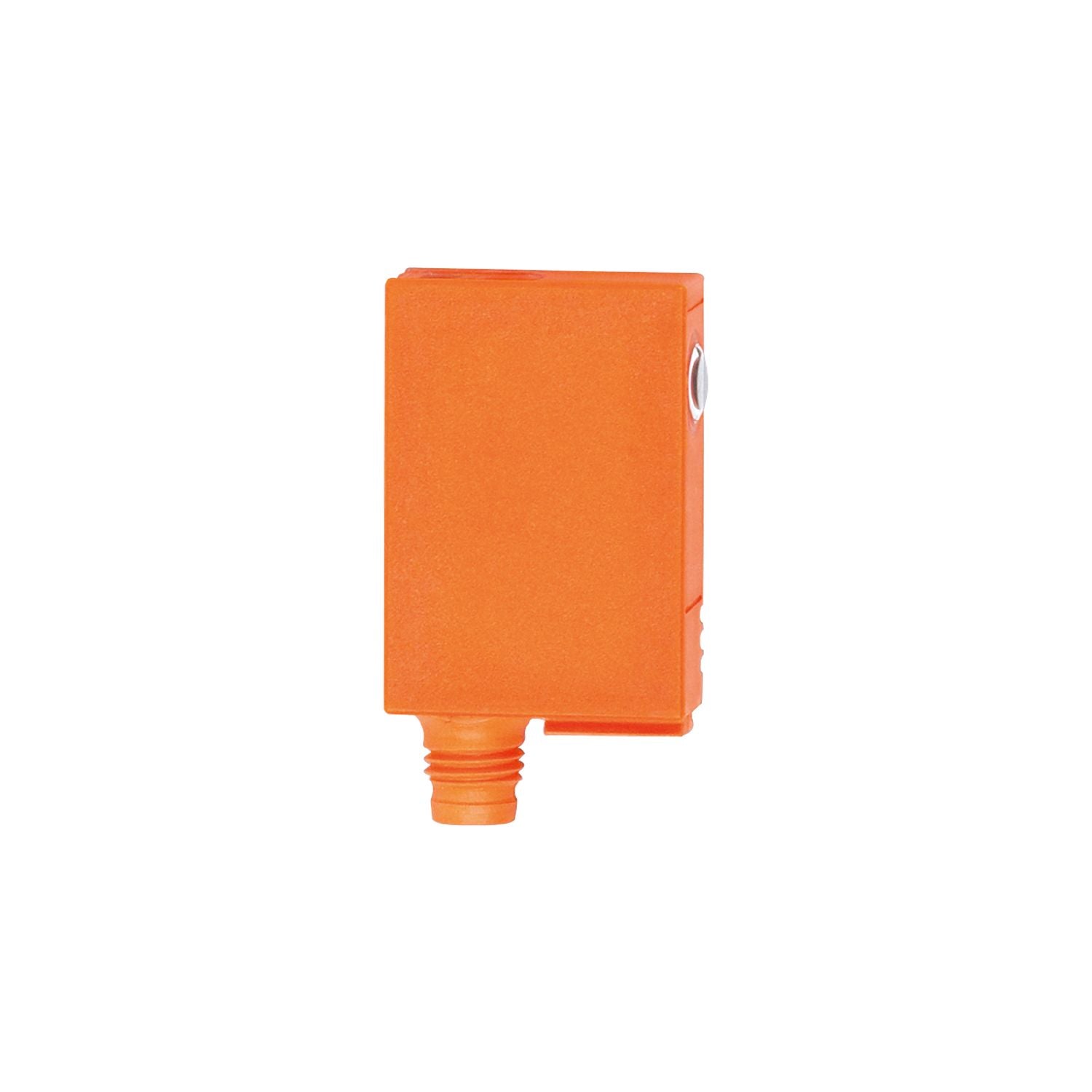

Particularly compact housing for use where space is restricted. Very long range. Intuitive setting of sensitivity and output function. Easy mounting by clipping onto a mounting base. LED display to check operation, switching status and function
Type of light
red light
Housing
rectangular
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 12
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
660
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1200
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Transmitter / receiver
receiver
Range [m]
< 10
Range adjustable
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
952
Weight [g]
26.8
Housing
rectangular
Dimensions [mm]
35 x 11 x 24
Materials
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electronic lock
yes
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5031-01 — 13.04.2023 —
