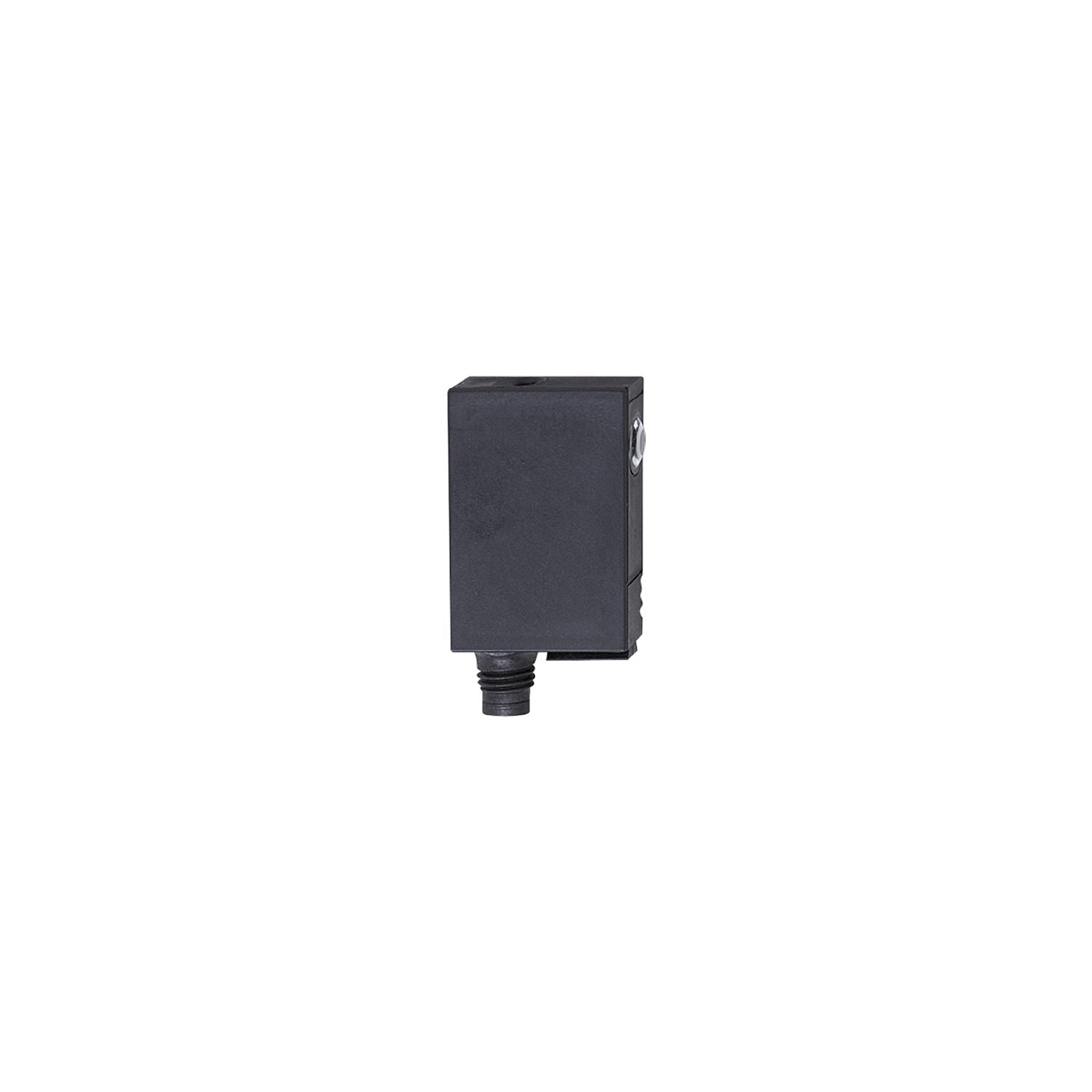

Reliable detection of tiny objects. Particularly compact housing for use in robotics, assembly and handling technology. Intuitive setting of sensitivity and output function. Very long range. Easy mounting by clipping onto a mounting base
Type of light
red light
Laser protection class
1
Housing
rectangular
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 12
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
650
Typ. lifetime [h]
50000
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1200
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Transmitter / receiver
receiver
Range [m]
< 15
Range adjustable
yes
Diameter of the smallest detectable object [mm]
2
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
952
Weight [g]
26.85
Housing
rectangular
Dimensions [mm]
35 x 11 x 24
Materials
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electronic lock
yes
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
