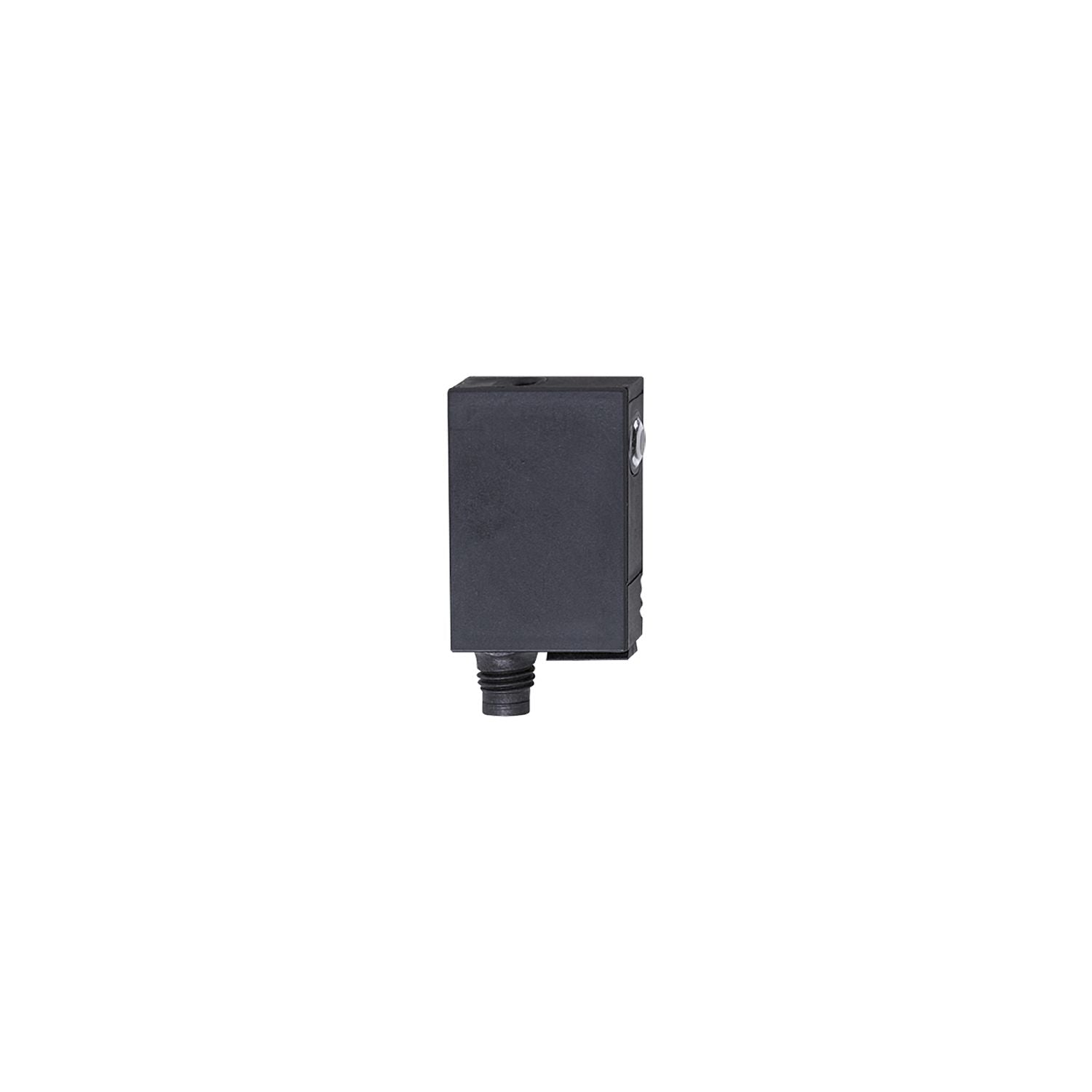

IFM OJ5041 - Through-beam laser sensor transmitter OJSLOOKG/SO/AS

Reliable detection of tiny objects.
Particularly compact housing for use in robotics, assembly and handling technology.
Simple alignment due to visible laser light spot.
Laser protection class 1 for the requirements of the automotive industry.
Easy mounting by clipping onto a mounting base

Type of light	red light
Laser protection class	1
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 12
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650
Typ. lifetime [h]	50000

Outputs

Overload protection	yes

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 1
Range adjustable	no
Max. light spot diameter [mm]	4
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	918

Weight [g]	27.55
Housing	rectangular
Dimensions [mm]	35 x 11 x 24
Materials	housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	Basic clip: 1, E20964 screws: 2 x M3 x 16 spring washers: 2 Nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5041-03 — 13.04.2023 —
