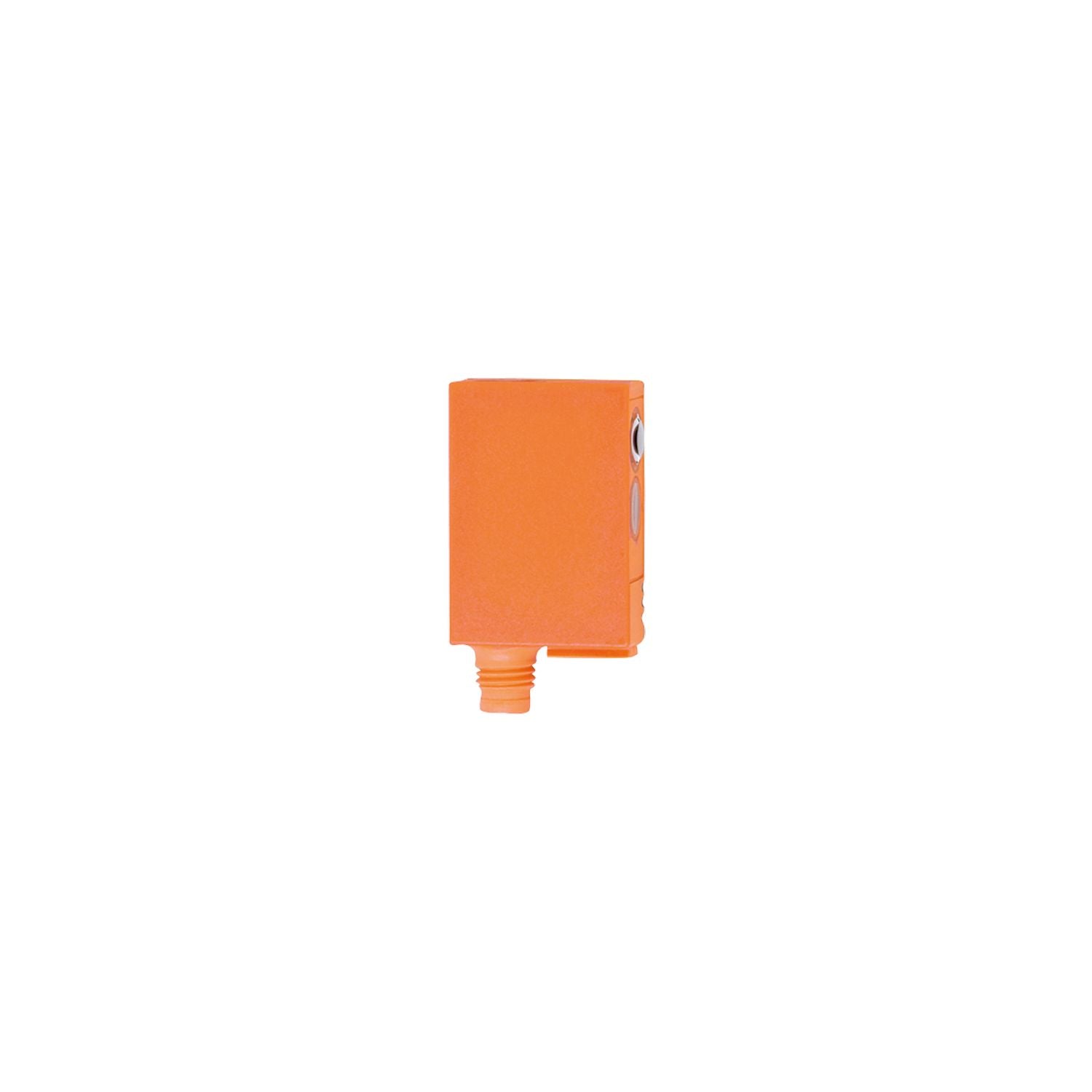

Particularly compact housing for use in robotics, assembly and handling technology. Very long range. LED display to check operation, switching status and function. Intuitive setting of sensitivity and output function. Easy mounting by clipping onto a mounting base
Type of light
infrared light
Housing
rectangular
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 32
Protection class
III
Reverse polarity protection
yes
Type of light
infrared light
Wave length [nm]
880
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
2000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range [mm]
1...1000;(white paper 200 x 200 mm 90% remission)
Range adjustable
yes
Max. light spot diameter [mm]
150
Light spot dimensions refer to
at maximum range
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
851
Weight [g]
27.3
Housing
rectangular
Dimensions [mm]
35 x 11 x 24
Materials
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electronic lock
yes
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
