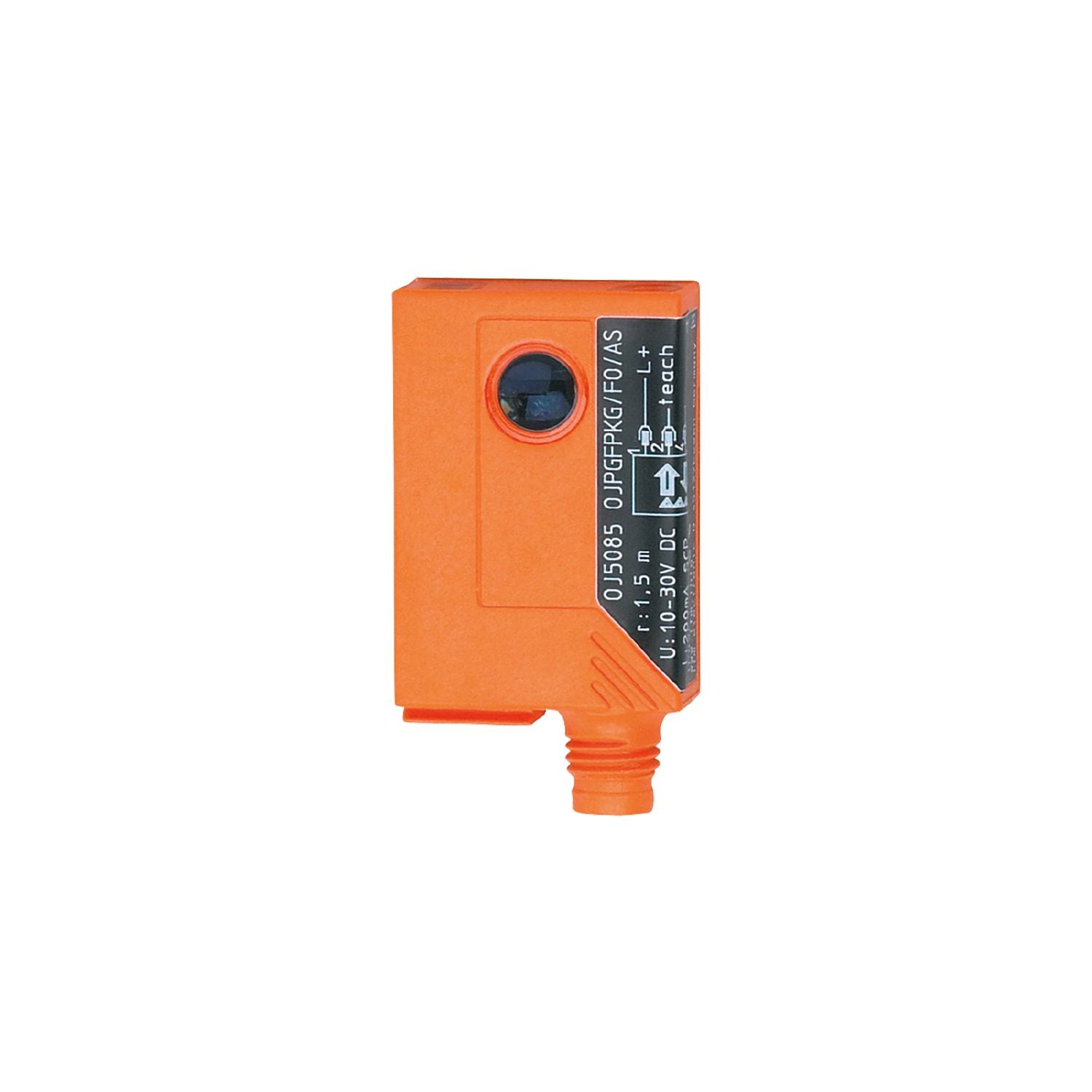

IFM OJ5085 - Retro-reflective sensor for the detection of transparent objects OJPGFPKG/FO/AS

Reliable detection of glass, film, PET bottles and transparent packaging.
Very long range.
Intuitive setting of sensitivity and output function.
High switching frequency for fast processes.
Simple alignment due to visible red light

Type of light	red light
Housing	rectangular

Special feature	polarisation filter
Function principle	Retro-reflective sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 22
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range referred to prismatic reflector [m]	0.2...1.5;(Prismatic reflector 50 x 50 mm E20722)
Range adjustable	yes
Max. light spot diameter [mm]	64
Light spot dimensions refer to	at maximum range
Polarisation filter available	yes

Operating conditions

Ambient temperature [°C]	0...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	867

Weight [g]	27.4
Housing	rectangular
Dimensions [mm]	35 x 24 x 11
Materials	housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material	glass
Lens alignment	front lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red
Electronic lock	yes

Accessories

Items supplied	Basic clip: 1, E20964 screws: 2 x M3 x 16 spring washers: 2 Nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A
