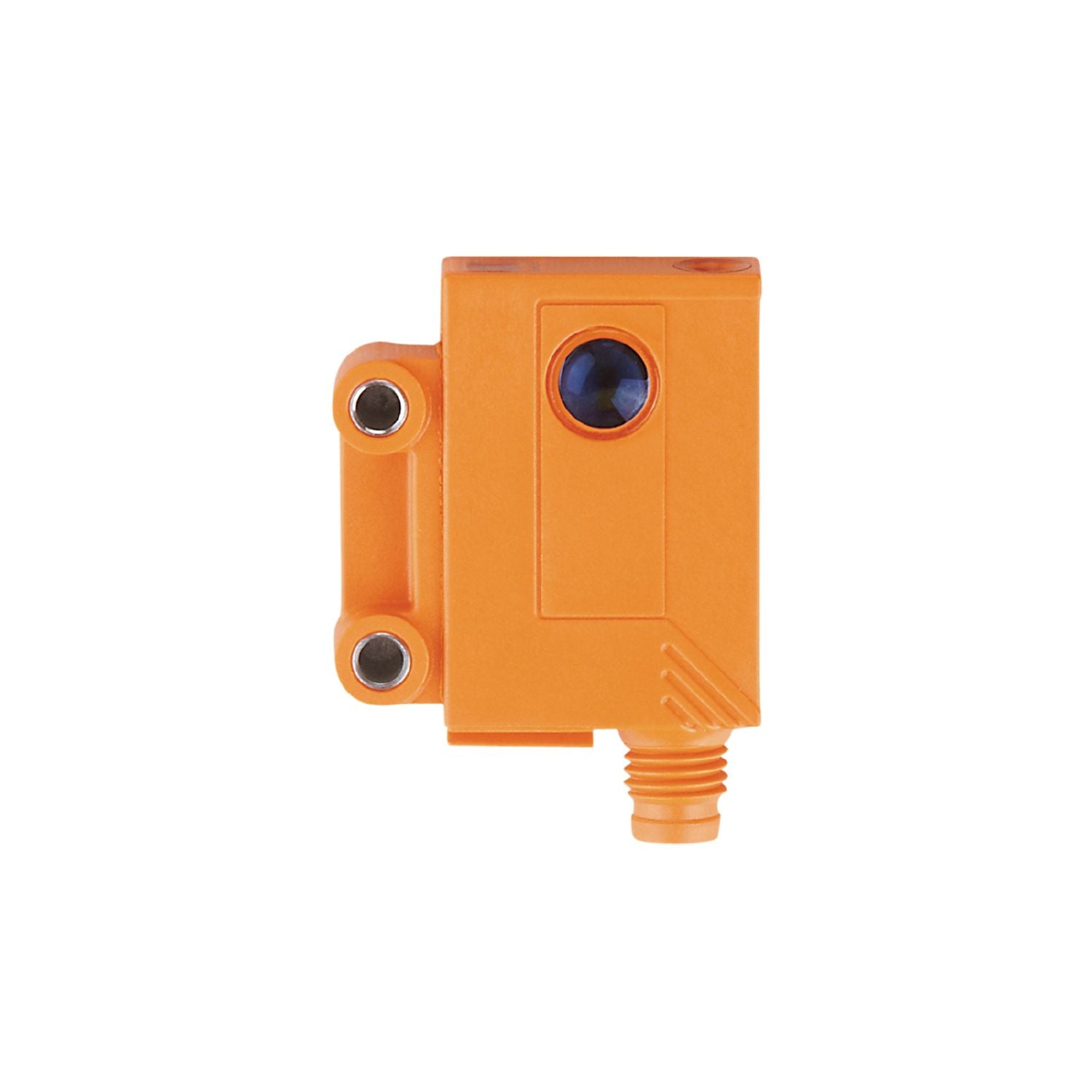

Particularly compact housing for use where space is restricted. Very long range. Intuitive setting of sensitivity and output function. Fast mounting by means of mounting holes with robust stainless steel sleeve. LED display to check operation, switching status and function
Type of light
red light
Housing
rectangular
Function principle
Through-beam sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 12
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
660
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1200
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Transmitter / receiver
receiver
Range [m]
< 10
Range adjustable
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
968
Weight [g]
27
Housing
rectangular
Dimensions [mm]
35 x 24 x 11
Materials
housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS
Lens material
glass
Lens alignment
front lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electronic lock
yes
Accessories
Items supplied
Basic clip: 1, E20964
screws: 2 x M3 x 16
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
excess gain graph
