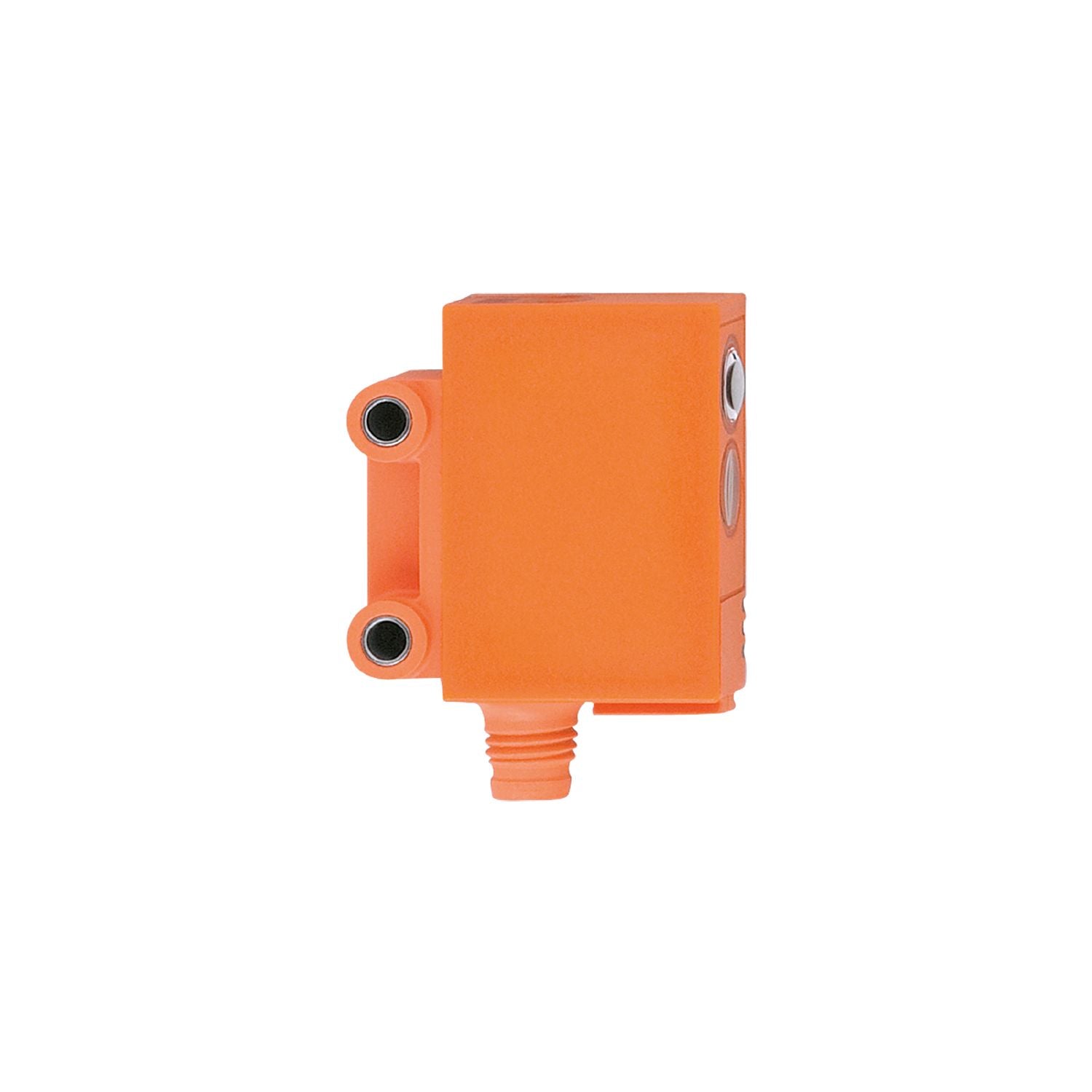

IFM OJ5122 - Diffuse reflection sensor OJB-FPKG/SO/AS

Particularly compact housing for use where space is restricted.
Very long range.
Simple alignment due to visible red light.
Intuitive setting of sensitivity and output function.
Fast mounting by means of mounting holes with robust stainless steel sleeve

Type of light	red light
Housing	rectangular

Function principle	Diffuse reflection sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 22
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	1...600;(white paper 200 x 200 mm 90% remission)
Range adjustable	yes
Max. light spot diameter [mm]	60
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	854

Weight [g]	27.3
Housing	rectangular
Dimensions [mm]	35 x 11 x 24
Materials	housing: ABS; LED window: SEPS; pushbutton: SEPS
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red
Electronic lock	yes

Accessories

Items supplied	screws: 2 spring washers: 2 Nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

excess gain graph
