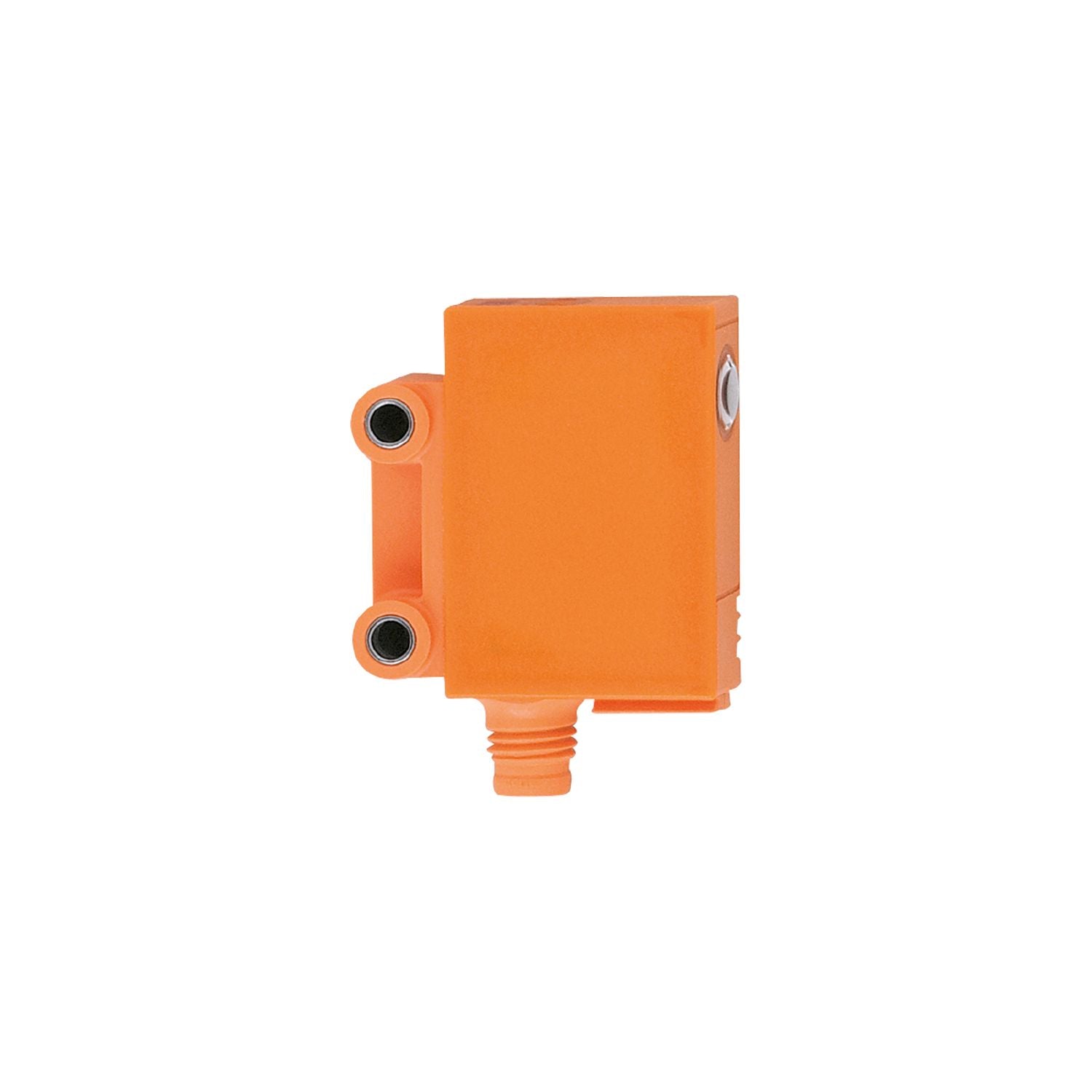

IFM OJ5130 - Through-beam sensor transmitter OJS-OOKG/SO/AS

Particularly compact housing for use where space is restricted.
Very long range.
Simple alignment due to visible red light.
Robust stainless steel sleeves in the fixing holes

Type of light	red light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 19
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Overload protection	yes

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 10
Max. light spot diameter [mm]	1000
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1764

Weight [g]	26.75
Housing	rectangular
Dimensions [mm]	35 x 11 x 24
Materials	housing: ABS; LED window: SEPS; pushbutton: SEPS
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	screws: 2 spring washers: 2 Nuts: 2

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A
