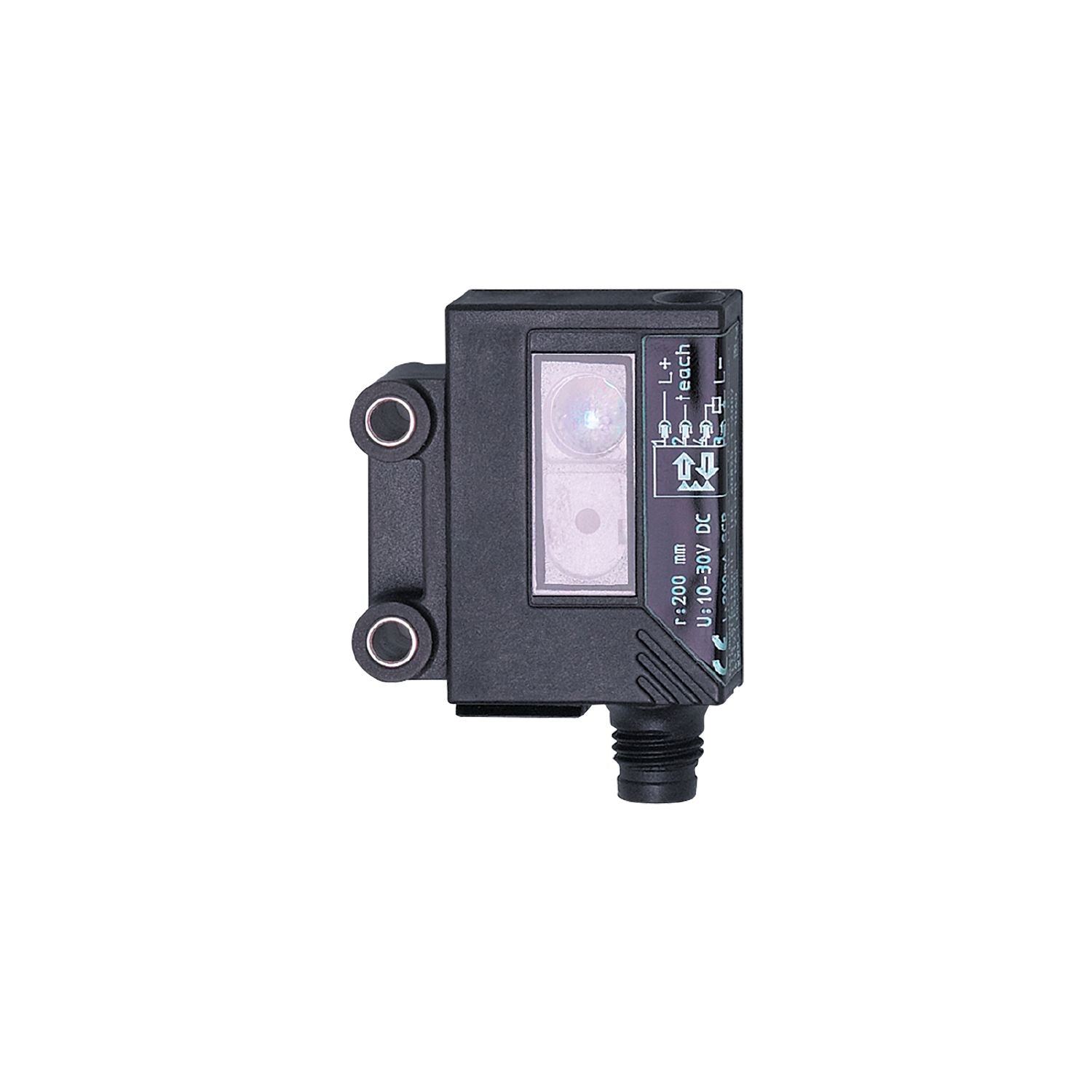

Reliable detection of tiny objects. Particularly compact housing for use in robotics, assembly and handling technology. Precise background suppression. Simple alignment due to visible laser light spot. Intuitive setting of sensitivity and output function
Type of light
red light
Laser protection class
1
Housing
rectangular
Special feature
Background suppression
Function principle
Diffuse reflection sensor
Operating voltage [V]
10...30 DC
Current consumption [mA]
13
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
650
Typ. lifetime [h]
50000
Outputs
Electrical design
PNP
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
200
Switching frequency DC [Hz]
1000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range [mm]
15...200;(white paper 200 x 200 mm 90% remission)
Range adjustable
yes
Diameter of the smallest detectable object [mm]
2
Max. light spot width [mm]
2
Max. light spot height [mm]
1
Background suppression available
yes
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
501
Weight [g]
28.6
Housing
rectangular
Dimensions [mm]
35 x 24 x 11
Materials
housing: ABS; LED window: SEPS; pushbutton: SEPS
Lens material
PMMA
Lens alignment
front lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
Electronic lock
yes
Accessories
Items supplied
screws: 2
spring washers: 2
Nuts: 2
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M8; coding: A
Diagrams and graphs
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
accuracy graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
object black (6 % remission) , background white (90 % remission)
2 =
object grey (18 % remission) ,background white (90 % remission)
3 =
object white (90 % remission) ,background white (90 % remission)
