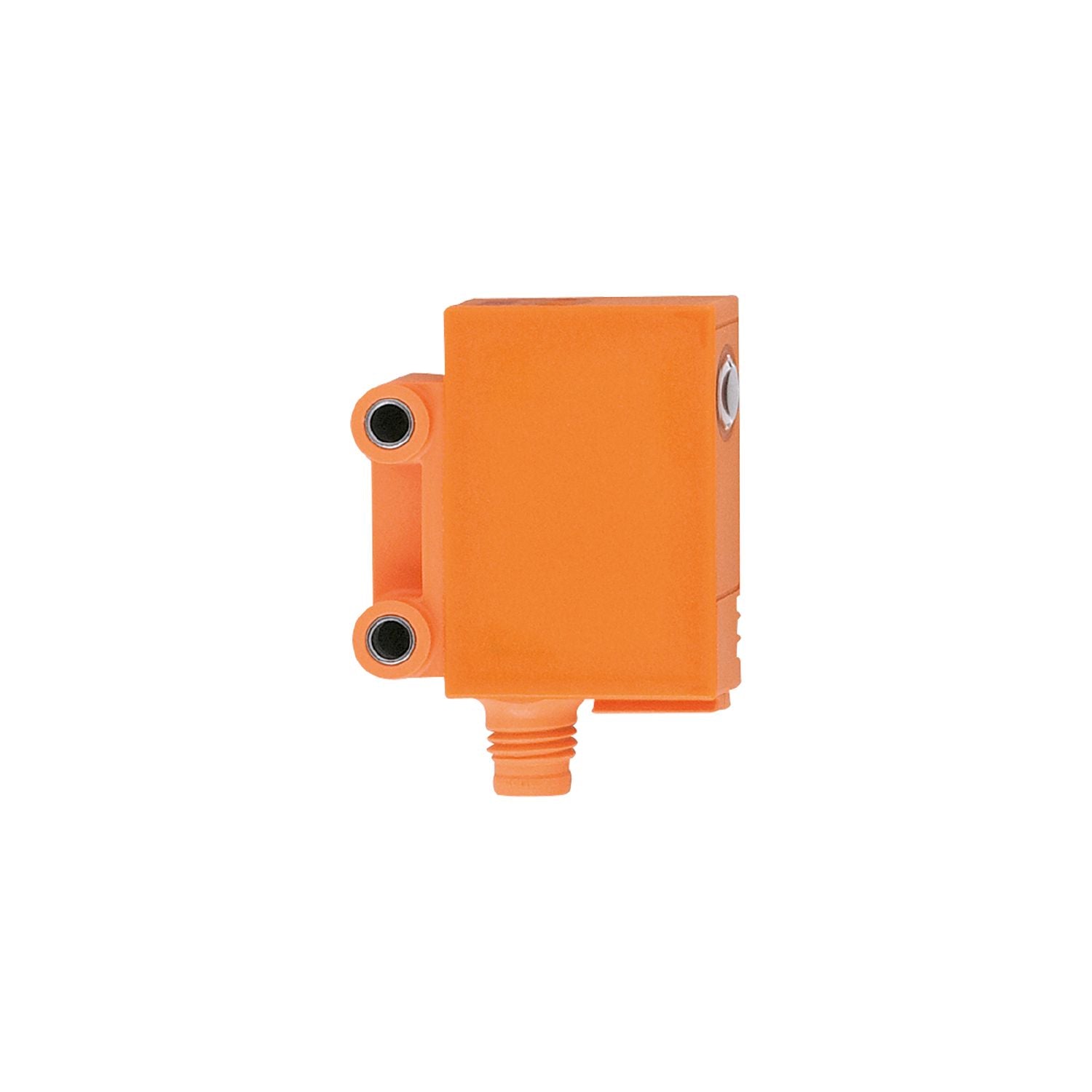

IFM OJE200 - Through-beam sensor receiver OJE-DPKG/SO/AS

Particularly compact housing for use where space is restricted.
Very long range.
Simple alignment due to visible red light.
Ready for operation immediately thanks to fixed setting.
Fast mounting by means of mounting holes with robust stainless steel sleeve

Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 10
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 10
Range adjustable	no

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1152

Weight [g]	15
Housing	rectangular
Dimensions [mm]	35 x 11 x 24
Materials	ABS; SEPS
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJE200-01 — 13.04.2023 —
