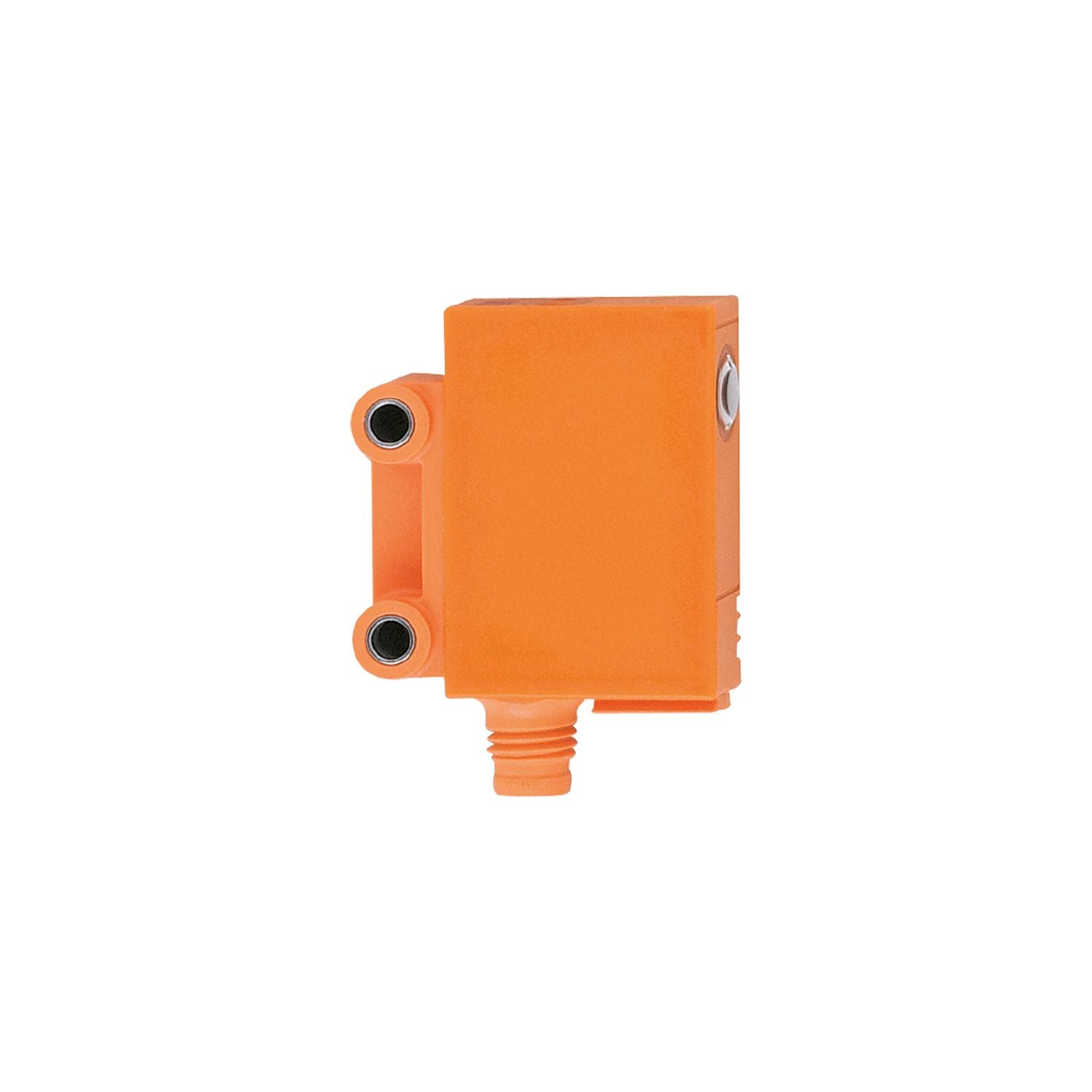

IFM OJS200 - Through-beam sensor transmitter OJS-OOKG/SO/AS

Particularly compact housing for use where space is restricted.
Very long range.
Simple alignment due to visible red light.
Ready for operation immediately thanks to fixed setting.
Fast mounting by means of mounting holes with robust stainless steel sleeve

Type of light	red light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Type of light	red light

Detection zone

Transmitter / receiver	transmitter
Range [m]	0...10
Range adjustable	no
Max. light spot diameter [mm]	1000
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	2230

Weight [g]	16.6
Housing	rectangular
Dimensions [mm]	35 x 11 x 24
Materials	ABS; SEPS
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJS200-01 — 13.04.2023 —
