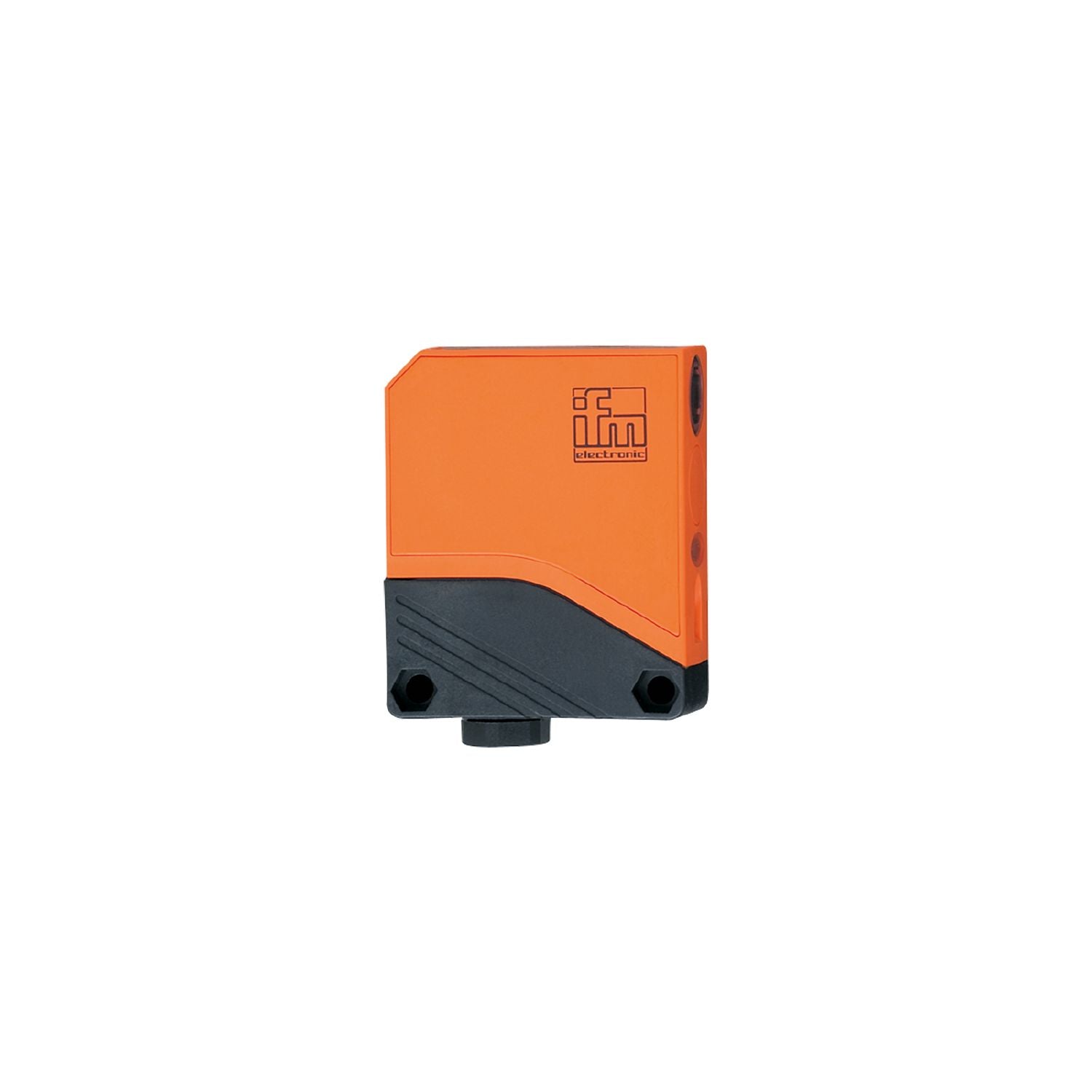

IFM OL0007 - Through-beam sensor receiver OLE-FKOA

Very long range.
Intuitive setting of the sensitivity.
Programmable light-on/dark-on mode.
Robust housing for use in harsh industrial environments.
LED display to check operation, switching status and function

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Max. power consumption [VA]	4
Protection class	II
Reverse polarity protection	no
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	relay
Output function	light-on/dark-on mode;(programmable)
Contact rating	250 V AC / 3 A / 950 VA, 125 V DC / 5 A / 120 W
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit proof	no
Overload protection	no

Detection zone

Transmitter / receiver	receiver
Range [m]	< 25

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	233

Weight [g]	166.5
Housing	rectangular
Dimensions [mm]	75 x 27 x 62
Materials	PA; PBT
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

Diagrams and graphs

excess gain graph
