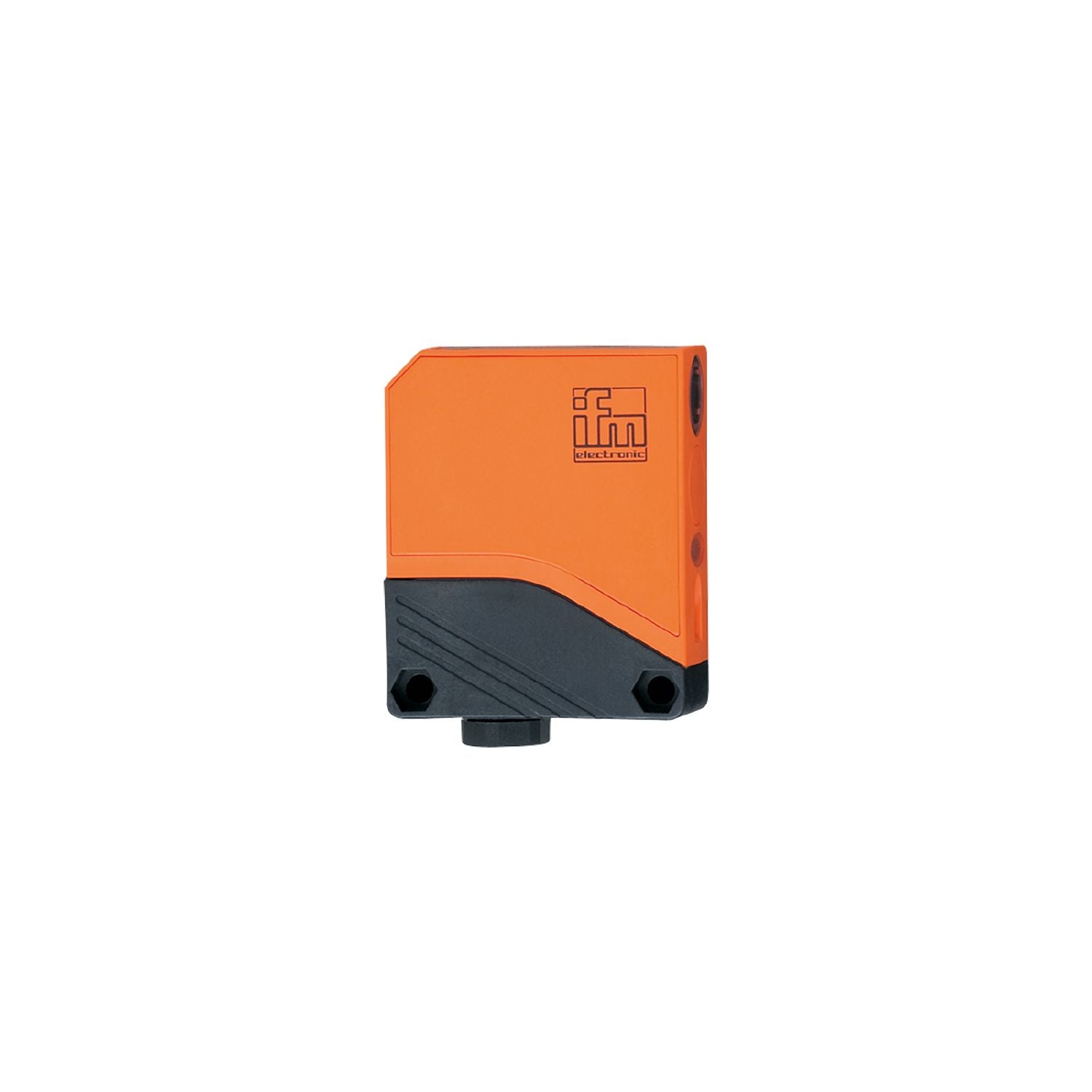

Very long range. Intuitive setting of the sensitivity. Programmable light-on/dark-on mode. Robust housing for use in harsh industrial environments. LED display to check operation, switching status and function
Type of light
infrared light
Housing
rectangular
Function principle
Diffuse reflection sensor
Frequency AC [Hz]
47...63
Operating voltage [V]
20...250 AC/DC
Max. power consumption [VA]
4
Protection class
II
Reverse polarity protection
no
Type of light
infrared light
Wave length [nm]
880
Outputs
Electrical design
relay
Output function
light-on/dark-on mode;(programmable)
Contact rating
250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W
Switching frequency AC [Hz]
10
Switching frequency DC [Hz]
10
Short-circuit proof
no
Overload protection
no
Detection zone
Range [mm]
1...800;(white paper 200 x 200 mm 90% remission)
Range adjustable
yes
Max. light spot diameter [mm]
80
Light spot dimensions refer to
at maximum range
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
255
Weight [g]
171.5
Housing
rectangular
Dimensions [mm]
75 x 27 x 62
Materials
PA; PBT
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
