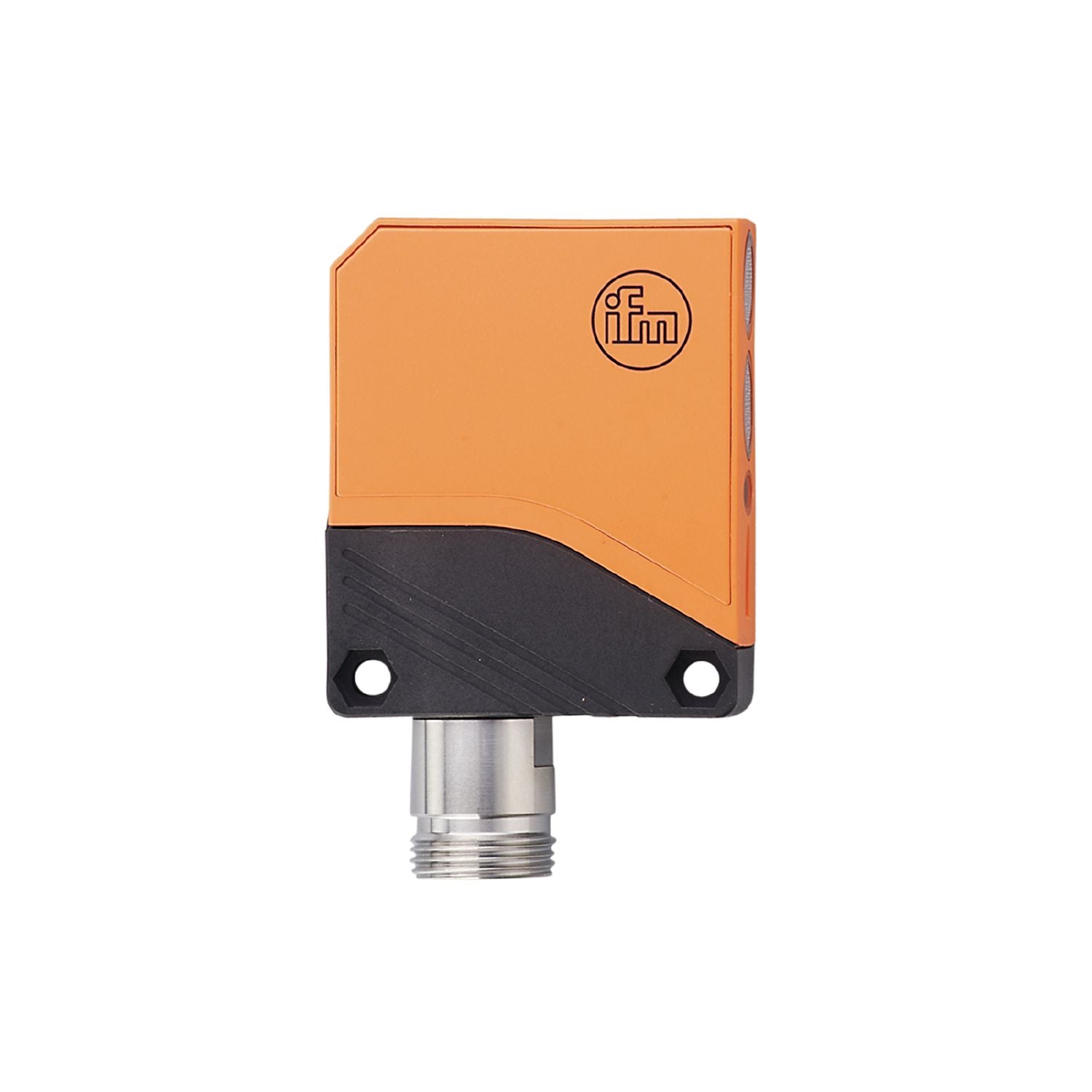

Very long range. Programmable light-on/dark-on mode via pushbutton. With combined AC/DC output and relay output. LED display to check operation, switching status and function. Robust housing for use in harsh industrial environments
Type of light
red light
Housing
rectangular
Special feature
polarisation filter
Function principle
Retro-reflective sensor
Frequency AC [Hz]
47...63
Operating voltage [V]
20...250 AC/DC
Max. power consumption [VA]
4
Protection class
I
Reverse polarity protection
no
Type of light
red light
Wave length [nm]
660
Typ. lifetime [h]
100000
Reference temperature for service life [°C]
25
Outputs
Electrical design
relay
Output function
light-on/dark-on mode;(programmable)
Contact rating
250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W
Switching frequency AC [Hz]
10
Switching frequency DC [Hz]
10
Short-circuit proof
no
Overload protection
no
Detection zone
Range referred to prismatic reflector [m]
0.3...5;(Prismatic reflector Ø 80 E20005)
Range adjustable
yes
Polarisation filter available
yes
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
256
Weight [g]
202.5
Housing
rectangular
Dimensions [mm]
75 x 27 x 62
Materials
PA; PBT
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x 7/8"; coding: A
Diagrams and graphs
excess gain graph
x:
distance [mm]
y:
Funktionsreservefaktor
