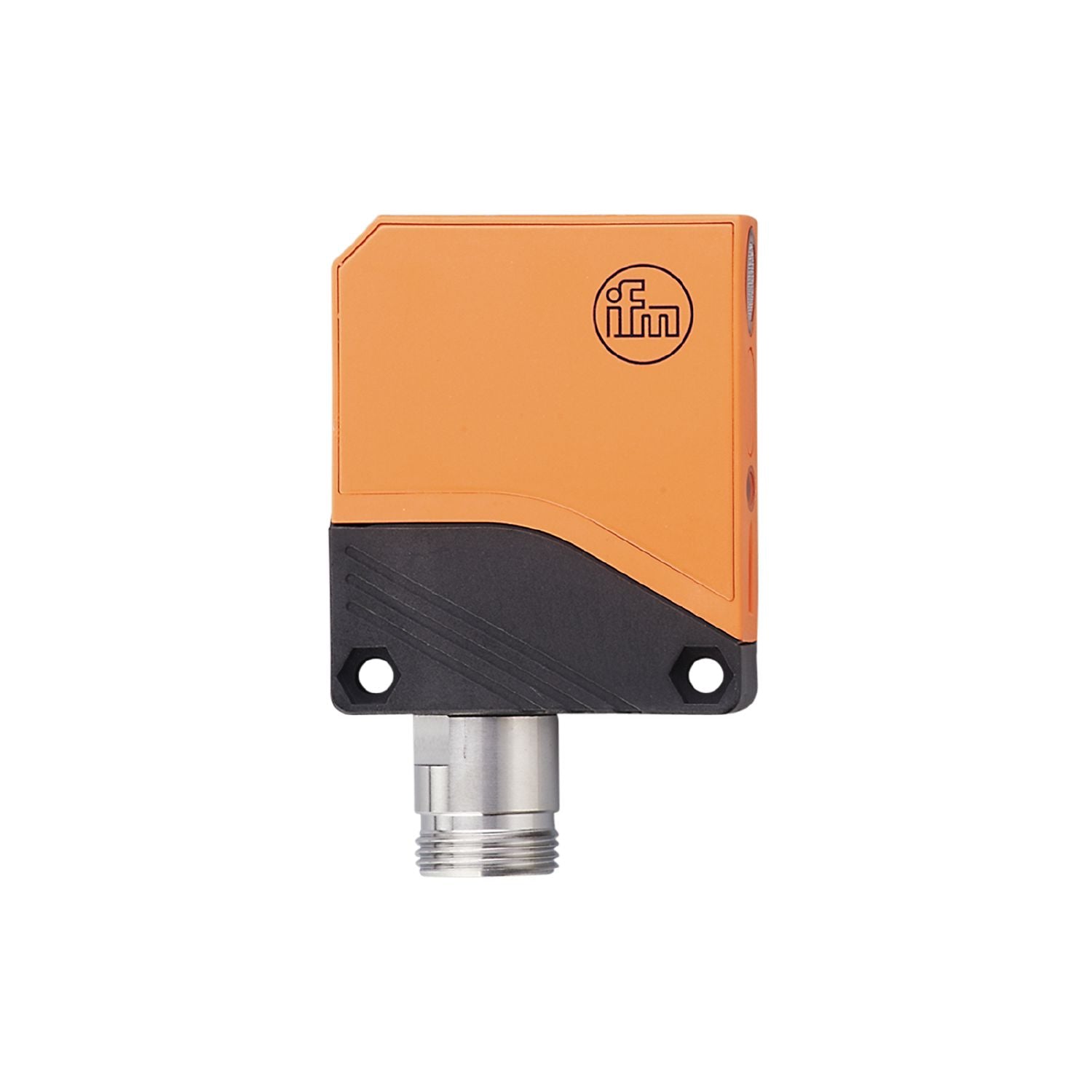

IFM OL0014 - Diffuse reflection sensor OLB-FKOA/SL/LS-500

Very long range.
Programmable light-on/dark-on mode via pushbutton.
With combined AC/DC output and relay output.
LED display to check operation, switching status and function.
Robust housing for use in harsh industrial environments

Type of light	infrared light
Housing	rectangular

Function principle	Diffuse reflection sensor

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Max. power consumption [VA]	4
Protection class	I
Reverse polarity protection	no
Type of light	infrared light
Wave length [nm]	880
Typ. lifetime [h]	100000
Reference temperature for service life [°C]	25

Outputs

Electrical design	relay
Output function	light-on/dark-on mode;(programmable)
Contact rating	250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit proof	no
Overload protection	no

Detection zone

Range [mm]	1...800;(white paper 200 x 200 mm 90% remission)
Range adjustable	yes
Max. light spot diameter [mm]	80
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	255

Weight [g]	203.5
Housing	rectangular
Materials	PA; PBT
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting

Remarks	Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x 7/8"; coding: A
