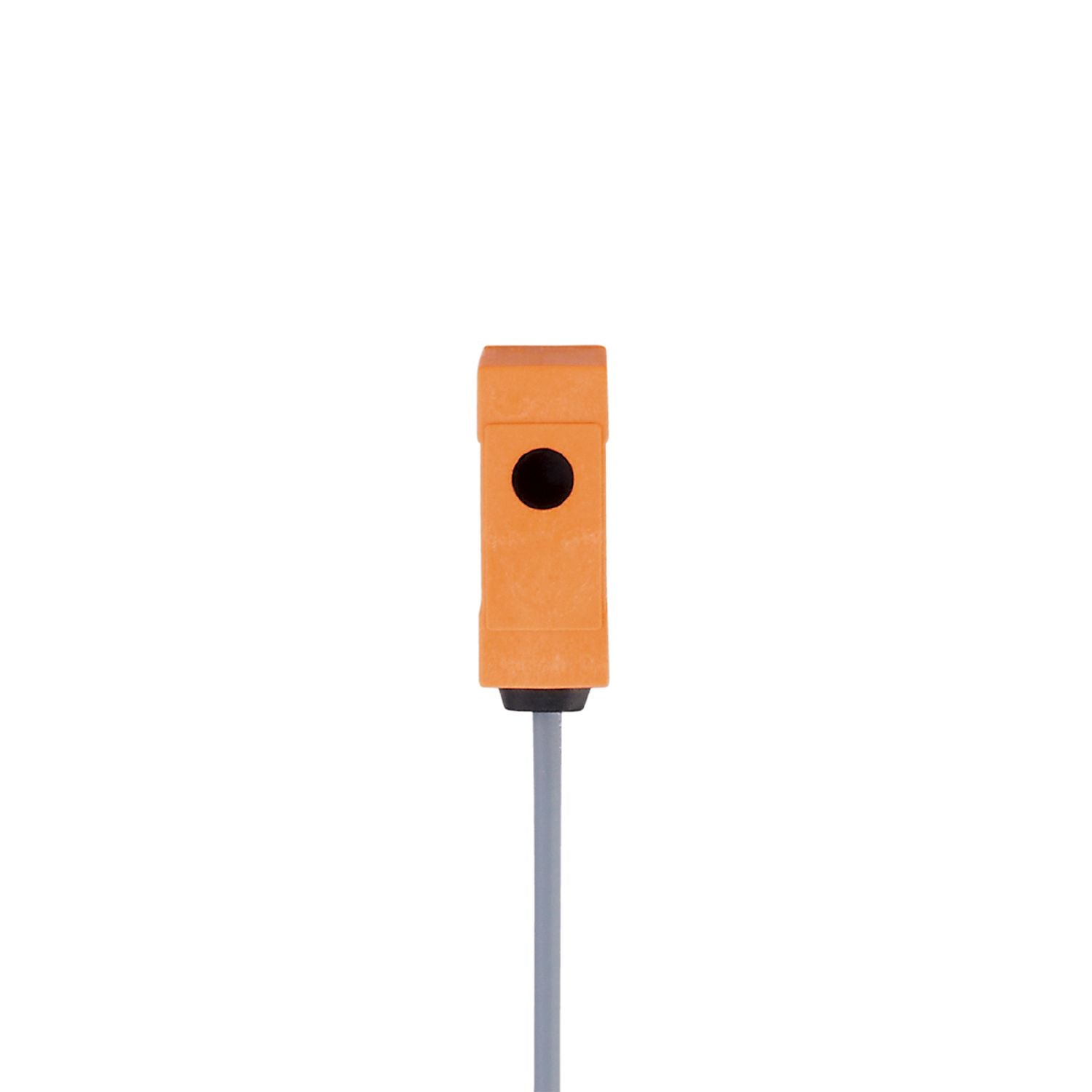

IFM OR0003 - Through-beam sensor transmitter ORS-V

Particularly compact housing for use where space is restricted.
Very long range.
For connection to a switching amplifier.
Ready for operation immediately thanks to fixed setting

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Connection to switching amplifiers	yes
Switching amplifiers	Connection to switching amplifiers OV5012, OV0010
Type of light	infrared light
Wave length [nm]	950

Outputs

Short-circuit protection	no
Overload protection	no

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 2

Operating conditions

Ambient temperature [°C]	-20...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	57078

Weight [g]	59.5
Housing	rectangular
Materials	PPO modified
Lens alignment	side lens

Accessories

Items supplied	Angle bracket: 1, E20212

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m; 1 x 0.14 mm²
