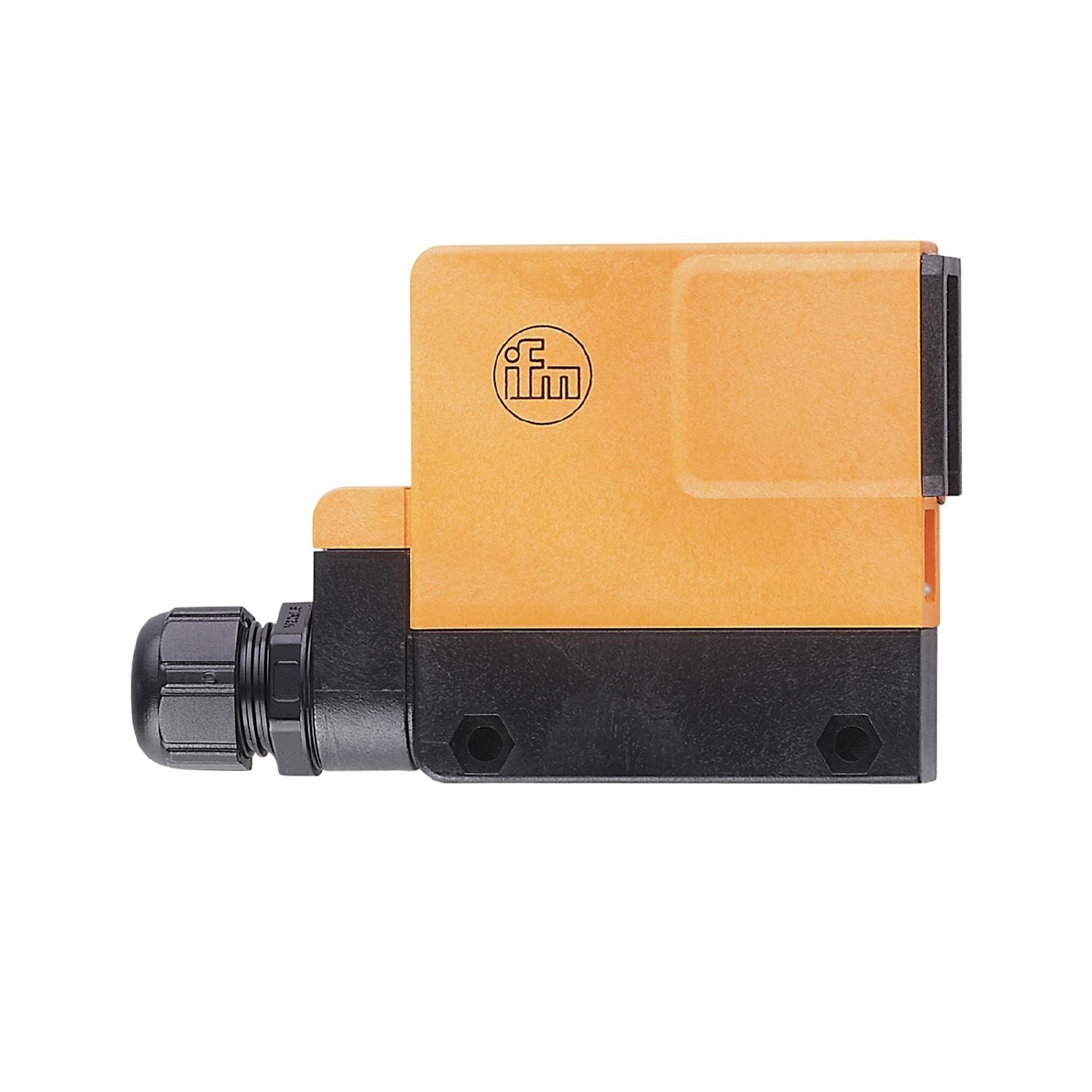

IFM OS0023 - Through-beam sensor receiver OSE-FBOA

Very long range.
Programmable light-on/dark-on mode.
With combined AC/DC output and two-wire technology.
Robust housing for use in harsh industrial environments.
Intuitive setting of the sensitivity via potentiometer

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	20...250 AC/DC
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	10.5
Max. voltage drop switching output AC [V]	10.5
Minimum load current [mA]	15
Max. leakage current [mA]	4
Permanent current rating of switching output AC [mA]	250;(350 (...50 °C))
Permanent current rating of switching output DC [mA]	250;(350 (...50 °C))
Short-time current rating of switching output [mA]	2200;(10 ms / 0,5 Hz)
Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	100
Short-circuit proof	no
Overload protection	no

Detection zone

Transmitter / receiver	receiver
Range [m]	< 20
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	300

Weight [g]	277
Housing	rectangular
Dimensions [mm]	80 x 28 x 95
Materials	PPO modified
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow

Electrical connection

Required protection	miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting

Accessories

Items supplied	Angle bracket: 1, E20210 screwdrivers

Remarks	Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable gland: M20 X 1.5

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OS0023-00 — 13.04.2023 —
