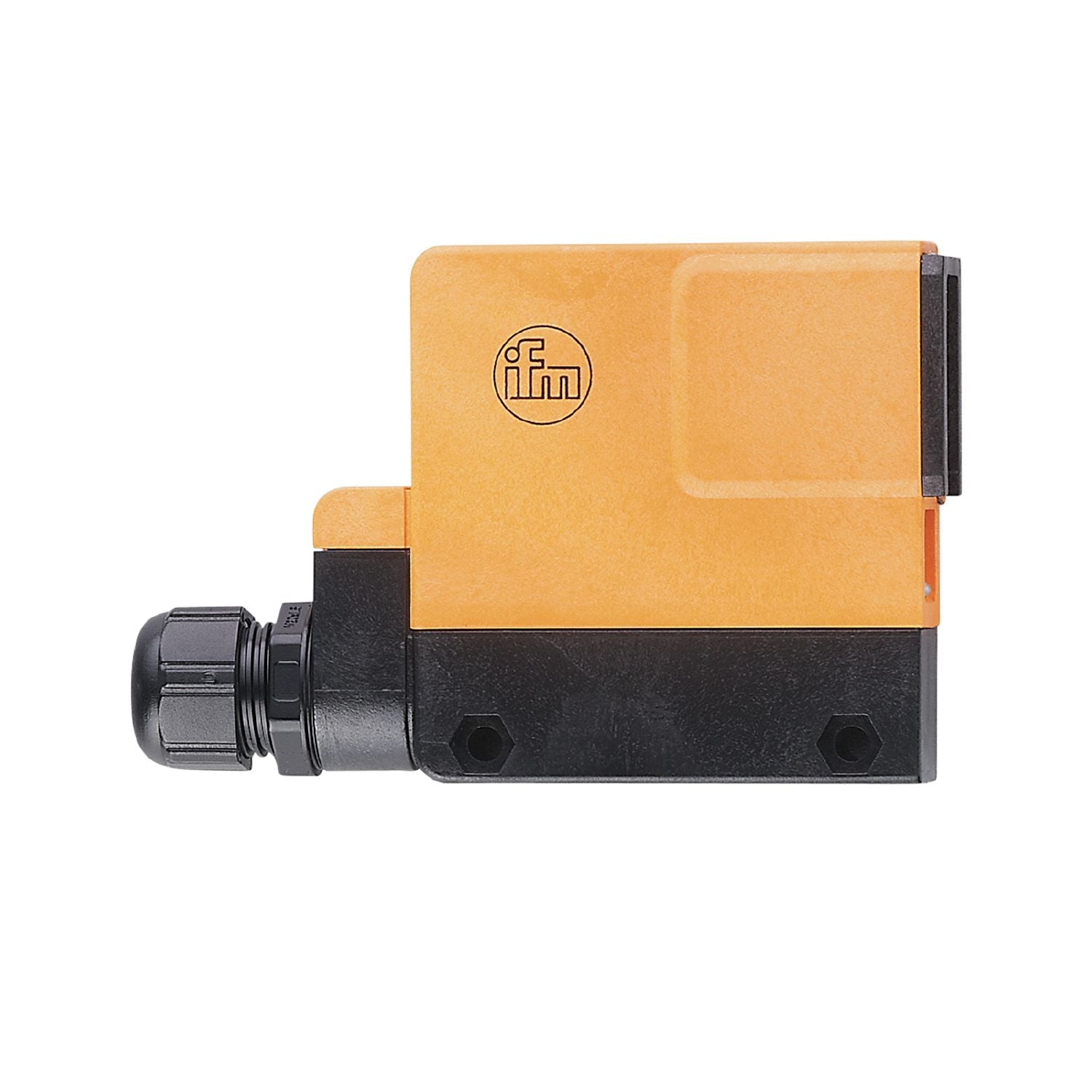

IFM OS0024 - Through-beam sensor transmitter OSS-OOOA

Very long range.
With combined AC/DC output and two-wire technology.
Robust housing for use in harsh industrial environments.
Intuitive setting of the sensitivity via potentiometer

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Current consumption [mA]	18
Protection class	II
Type of light	infrared light
Wave length [nm]	880

Outputs

Switching frequency AC [Hz]	25
Switching frequency DC [Hz]	100
Short-circuit protection	no
Overload protection	no

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 20
Range adjustable	no

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1036

Weight [g]	265
Housing	rectangular
Dimensions [mm]	80 x 28 x 95
Materials	PPO modified
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, yellow

Accessories

Items supplied	Angle bracket: 1, E20210 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable gland: M20 X 1.5
