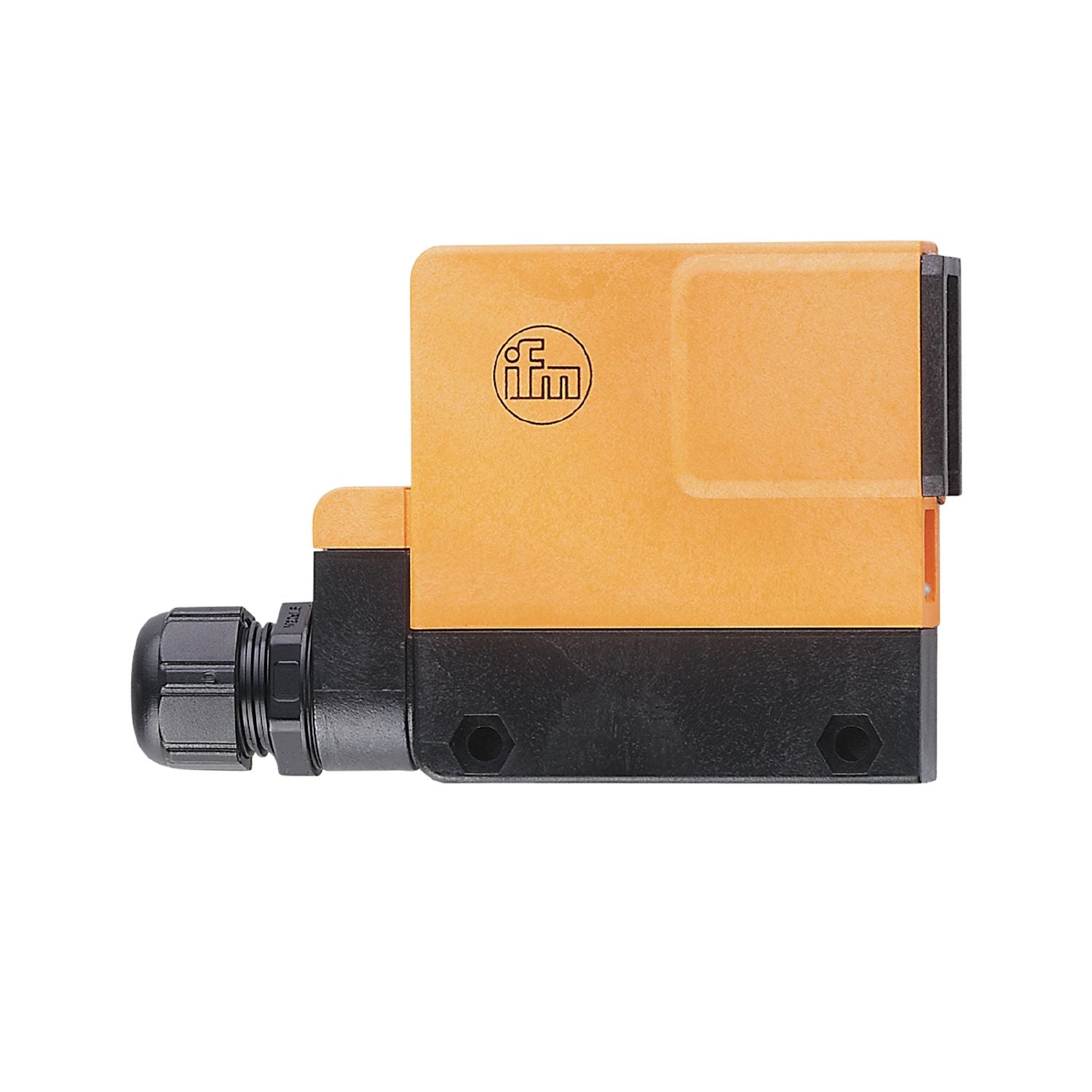

IFM OS5015 - Through-beam sensor transmitter OSS-OOKG

Very long range.
Robust housing for use in harsh industrial environments

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...55 DC
Current consumption [mA]	20;((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 20
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1801

Weight [g]	264
Housing	rectangular
Dimensions [mm]	80 x 28 x 95
Materials	PPO modified
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, yellow

Accessories

Items supplied	Angle bracket: 1, E20210 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable gland: M20 X 1.5
