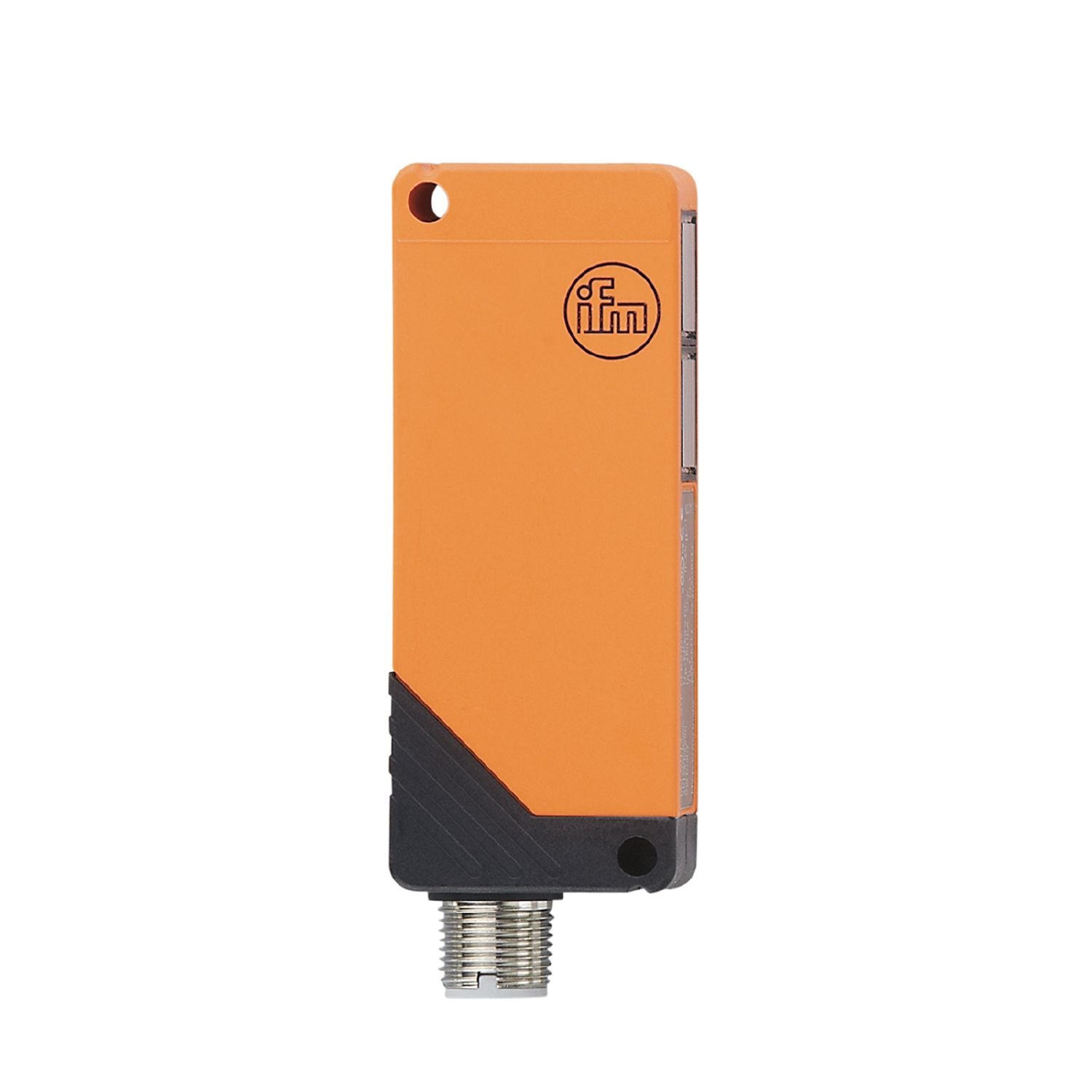

IFM OT5008 - Through-beam sensor transmitter OTS-OOKG/US-100

Compact housing for use where space is restricted.
Programmable light-on/dark-on mode.
Intuitive setting of the sensitivity via potentiometer.
Very long range.
LED display to check switching status and operation

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...50 DC
Current consumption [mA]	20;((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 10
Range adjustable	no
Max. light spot diameter [mm]	524
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1862

Weight [g]	153
Housing	rectangular
Materials	PBT
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	Angle bracket: 1, E20461 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
