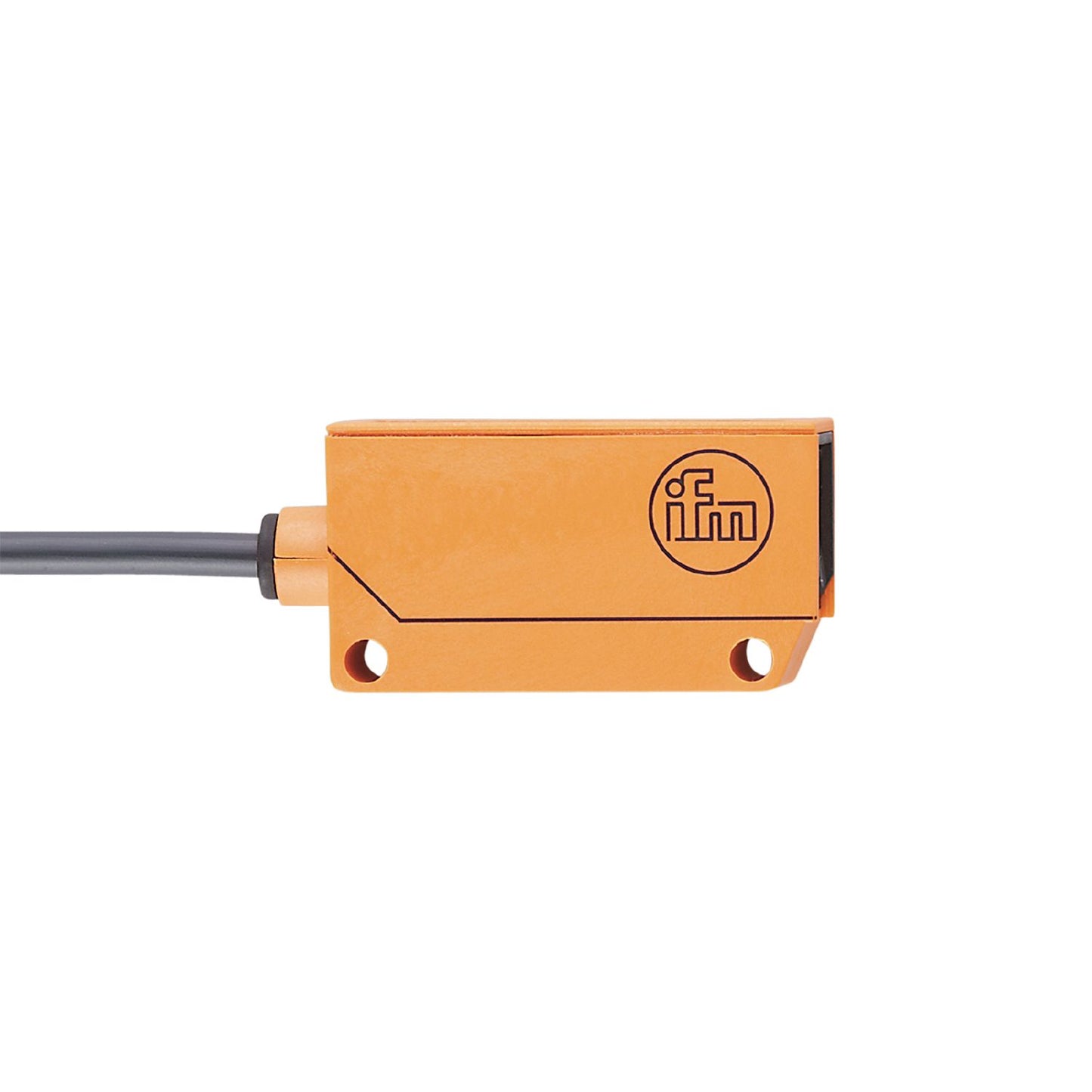

IFM OU5005 - Through-beam sensor transmitter OUS-OOKG

Very long range.
Compact housing for use where space is restricted.
High protection rating for the requirements of harsh industrial environments.
Large operating voltage range

Type of light	infrared light
Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...55 DC
Current consumption [mA]	20;((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 6
Range adjustable	no
Max. light spot diameter [mm]	734
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	1801

Weight [g]	138
Housing	rectangular
Dimensions [mm]	28 x 16 x 51
Materials	PPO modified
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	operation 1 x LED, yellow

Accessories

Items supplied	Angle bracket: 1, E20211

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.34 mm²
