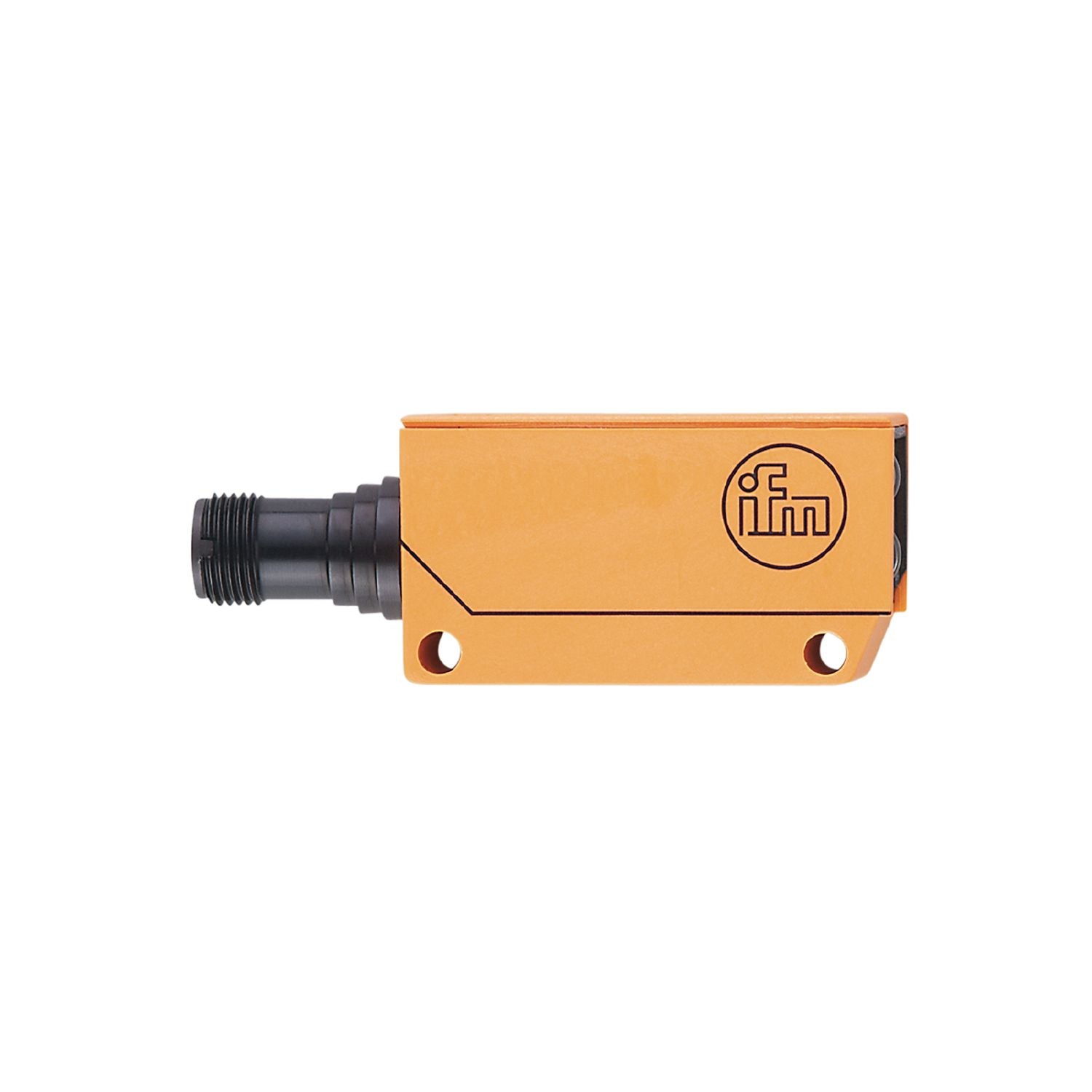

IFM OU5070 - Retro-reflective sensor OUR-HPKG/US-100-DPO

Compact housing for use where space is restricted.
Intuitive setting of the sensitivity via potentiometer.
Clearly visible indication of the switching status.
Large operating voltage range.
With polarisation filter

Type of light	infrared light
Housing	rectangular

Function principle	Retro-reflective sensor

Operating voltage [V]	10...55 DC
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	160
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range referred to prismatic reflector [m]	0.15...3;(Prismatic reflector Ø 80 E20005)
Range adjustable	yes
Max. light spot diameter [mm]	262
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	685

Weight [g]	74.5
Housing	rectangular
Dimensions [mm]	28 x 16 x 51
Materials	PPO modified
Lens material	glass
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow

Accessories

Items supplied	Angle bracket: 1, E20211

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph
