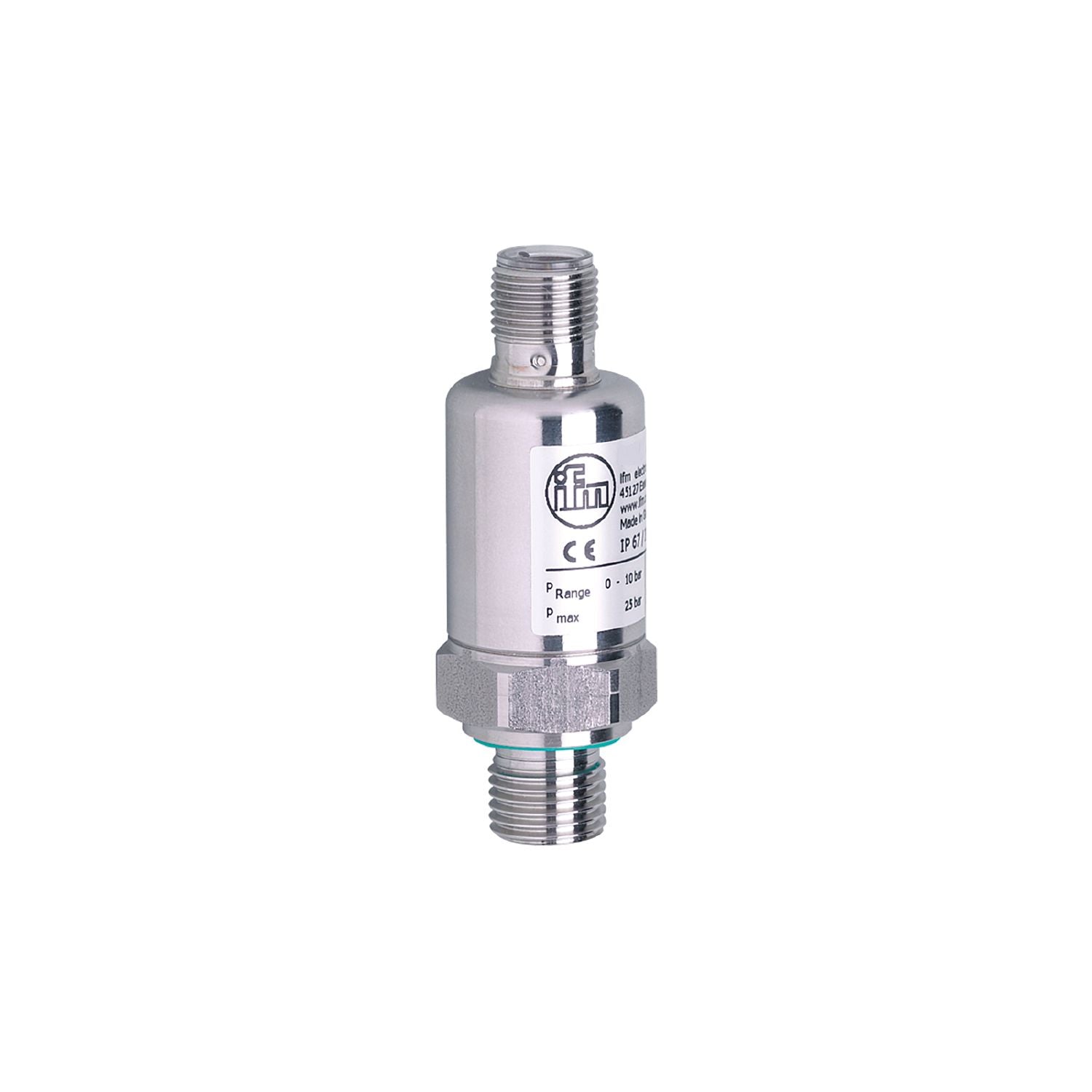

Precise linear 0.5...4.5 V output signal for mobile applications. High repeatability and low linearity error. With long-term stability thanks to high overload protection. Robust stainless steel housing for use in mobile machines. Large operating temperature range and high protection rating
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range [bar]
0...400
Process connection
threaded connection G 1/4 external thread
Application
for mobile applications
Media
liquids and gases
Medium temperature [°C]
-25...90;(on request: -40...100 °C)
Min. bursting pressure [bar]
1600
Pressure rating [bar]
600
Type of pressure
relative pressure
Operating voltage [V]
5 DC;(ratiometric)
Current consumption [mA]
< 6
Min. insulation resistance [MΩ]
100;(80 V DC)
Protection class
III
Reverse polarity protection
yes
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue voltage output [V]
0.5...4.5
Min. load resistance [Ω]
5000
Measuring/setting range
Measuring range [bar]
0...400
Accuracy / deviations
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 1,0;(incl. drift when overtightened, zero point and span error)
Linearity deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS)
Hysteresis deviation [% of the span]
< ± 0,2
Long-term stability [% of the span]
< ± 0,1;(per 6 months)
Temperature drift per 10 K
< ± 0.5
Response times
Step response time analogue output [ms]
8
Operating conditions
Ambient temperature [°C]
-25...90
Storage temperature [°C]
-40...100
Protection
IP 67; IP 69K
Tests / approvals
EMC
immunity
according to the automotive directive 1995/54/EC
ISO 11452-2
100 V/m
ISO 11452-4
100 mA / severity level 4
DIN EN 61000-4-2 ESD
4 kV CD / 8 kV AD
DIN EN 61000-6-2
radiation of interference
CISPR 25
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
3896
UL approval
UL Approval no.
J04X
Weight [g]
80.5
Materials
stainless steel (1.4404 / 316L); PA
Materials (wetted parts)
stainless steel (1.4404 / 316L); FKM
Min. pressure cycles
50 million
Process connection
threaded connection G 1/4 external thread
Restrictor element integrated
yes
Remarks
BFSL = Best Fit Straight Line
LS = limit value setting
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PC9050-00 — 13.04.2023 —
