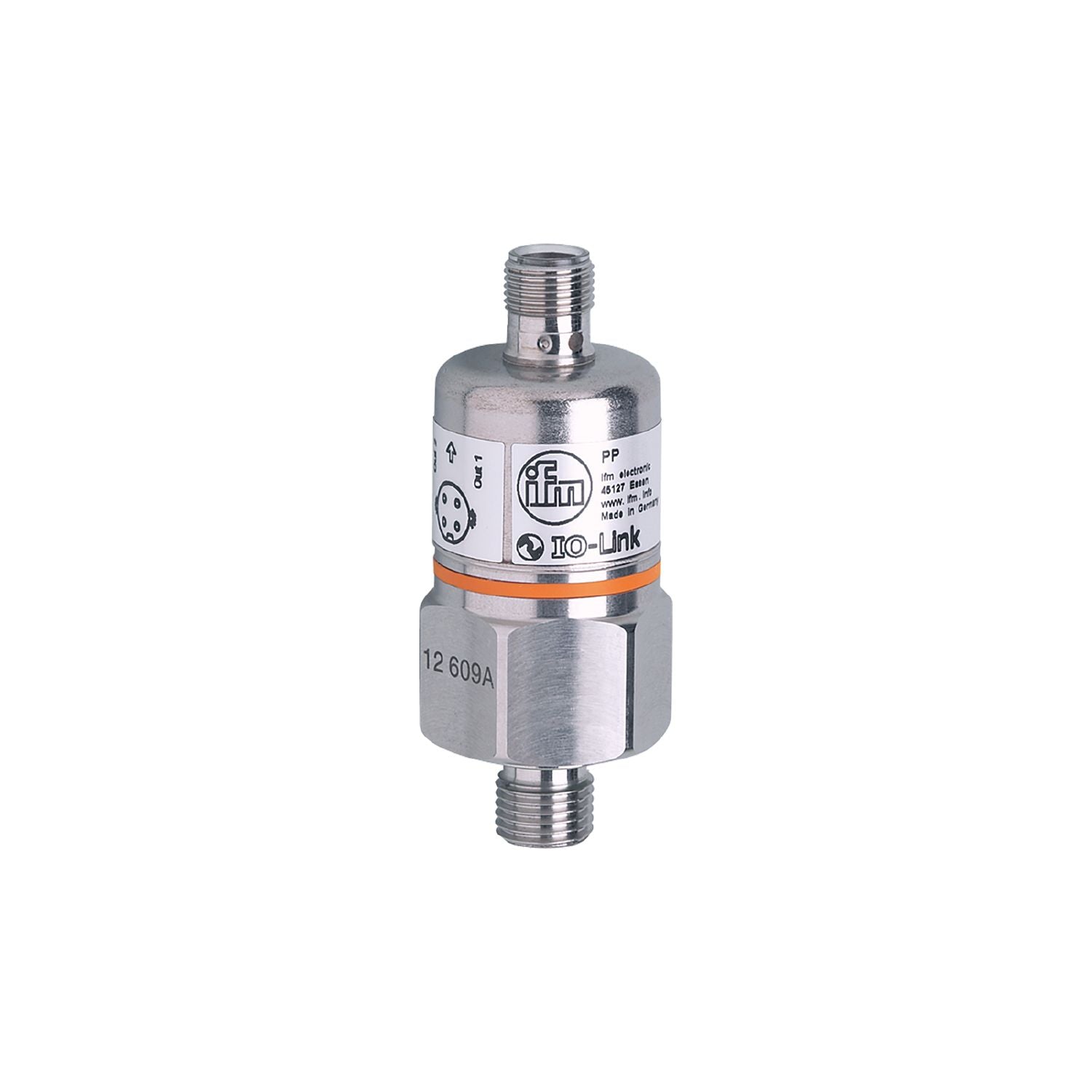

Robust design for use in harsh industrial environments. Two switching outputs, one of which can be configured as diagnostic output. High shock and vibration resistance. Lifespan of more than 100 million pressure cycles
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
0...2.5 bar
0...2500 mbar
0...36.3 psi
0...250 kPa
Process connection
threaded connection G 1/4 external thread internal thread:M5
Application
for industrial applications
Media
liquids and gases
Medium temperature [°C]
-25...90
Min. bursting pressure
50 bar
725 psi
5000 kPa
Pressure rating
20 bar
290 psi
2000 kPa
Type of pressure
relative pressure
Operating voltage [V]
9.6...36 DC;(communication mode: 18...32)
Current consumption [mA]
< 45
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
0.3
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal; IO-Link;(configurable)
Electrical design
PNP
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
170
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Measuring/setting range
Measuring range
0...2.5 bar
0...2500 mbar
0...36.3 psi
0...250 kPa
Set point SP
0.02...2.5 bar
0.4...36.2 psi
2...250 kPa
Reset point rP
0.01...2.49 bar
0.2...36 psi
1...249 kPa
In steps of
0.01 bar
0.2 psi
1 kPa
Factory setting
SP1 = 0.63 bar
rP1 = 0.58 bar
SP2 = 1.88 bar
rP2 = 1.83 bar
OUT1 = Hno
OUT2 = Hno
Accuracy / deviations
Switch point accuracy [% of the span]
< ± 0,5
Repeatability [% of the span]
< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,25 (BFSL) / < ± 0,5 (LS);(BFSL = Best Fit Straight Line; LS = limit value setting)
Hysteresis deviation [% of the span]
< ± 0,1
Long-term stability [% of the span]
< ± 0,1;(per year)
Temperature coefficient zero point [% of the span / 10 K]
< ± 0,2;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]
according to the automotive directive 1995/54/EC / 04/104EG / 05/83/EG
absorber chamber test to ISO 11452-2:
80 V/m
EN 50155
Klasse T3, C1, S1
Shock resistance
DIN IEC 60068-2-27 / DIN IEC 60068-2-29
1000 g
DIN EN 61373
category 3
Vibration resistance
DIN IEC 68-2-6
20 g (10...2000 Hz)
DIN EN 60068-2-64
14 g
DIN EN 61373
category 2
MTTF [years]
310
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Weight [g]
227
Materials
stainless steel (1.4301 / 304); FKM; EPDM/X; PA
Materials (wetted parts)
stainless steel (1.4305 / 303); ceramics; FKM
Min. pressure cycles
100 million
Process connection
threaded connection G 1/4 external thread internal thread:M5
Restrictor element integrated
no (can be retrofitted)
Displays / operating elements
Display
operation
2 x LED, green
switching status
2 x LED, yellow
Teach function
yes
Remarks
with reference to UL: "limited voltage" with overcurrent protection in accordance with UL508
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PP7556-00 — 13.04.2023 —
