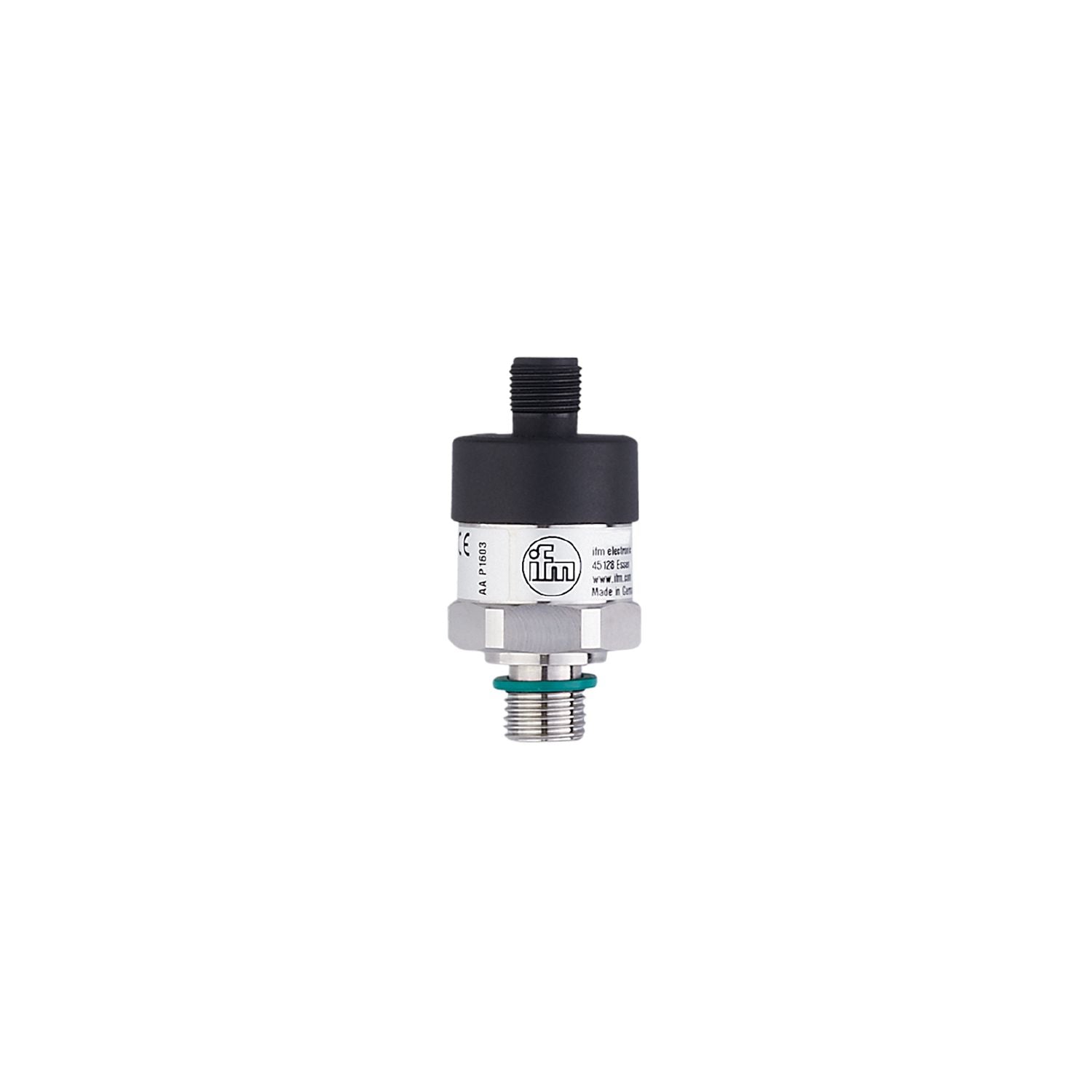

IFM PT0517 - Pressure transmitter PT-1,6-AFG14-A-ZVG/US

Precise measurement of absolute pressure independent of the surrounding air pressure.
For use in applications requiring very precise pressure control.
Robust stainless steel housing with high shock and vibration resistance.
Compact housing for use where space is restricted.
With long-term stability thanks to high repeatability and low linearity error

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	0...1.6 bar 0...1600 mbar 0...23.2 psi 0...160 kPa
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	0...80
Min. bursting pressure	10 bar 145 psi 1000 kPa
Pressure rating	3.2 bar 46 psi 320 kPa
Type of pressure	absolute pressure

Operating voltage [V]	8...30 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	800;(Ub = 24 V; (Ub - 8 V) / 20 mA)
Short-circuit proof	yes

Measuring/setting range

Measuring range	0...1.6 bar 0...1600 mbar 0...23.2 psi 0...160 kPa

Accuracy / deviations

Repeatability [% of the span]	< ± 0,1;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 1,0;(incl. zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]	< ± 0,5 (BFSL) / < ± 1,0 (LS)
Long-term stability [% of the span]	< ± 0,1;(per year)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,2;(0...80 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,2;(0...80 °C)

Response times

Step response time analogue output [ms]	4

Operating conditions

Ambient temperature [°C]	0...80
Storage temperature [°C]	-20...80
Protection	IP 67

Tests / approvals

EMC	DIN EN 61326-1
Shock resistance	DIN EN 60068-2-27 500 g (1 ms)
Vibration resistance	DIN EN 60068-2-6 10 g (10...2000 Hz)
MTTF [years]	815
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	118
Materials	stainless steel (1.4404 / 316L); HNBR; PA
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Min. pressure cycles	10 million
Tightening torque [Nm]	25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Process connection sealing	NBR (DIN EN ISO 1179-2)
Fill fluid for pressure transmission	synthetic oil
Restrictor element integrated	no

Remarks	BFSL = Best Fit Straight Line LS = limit value setting
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
