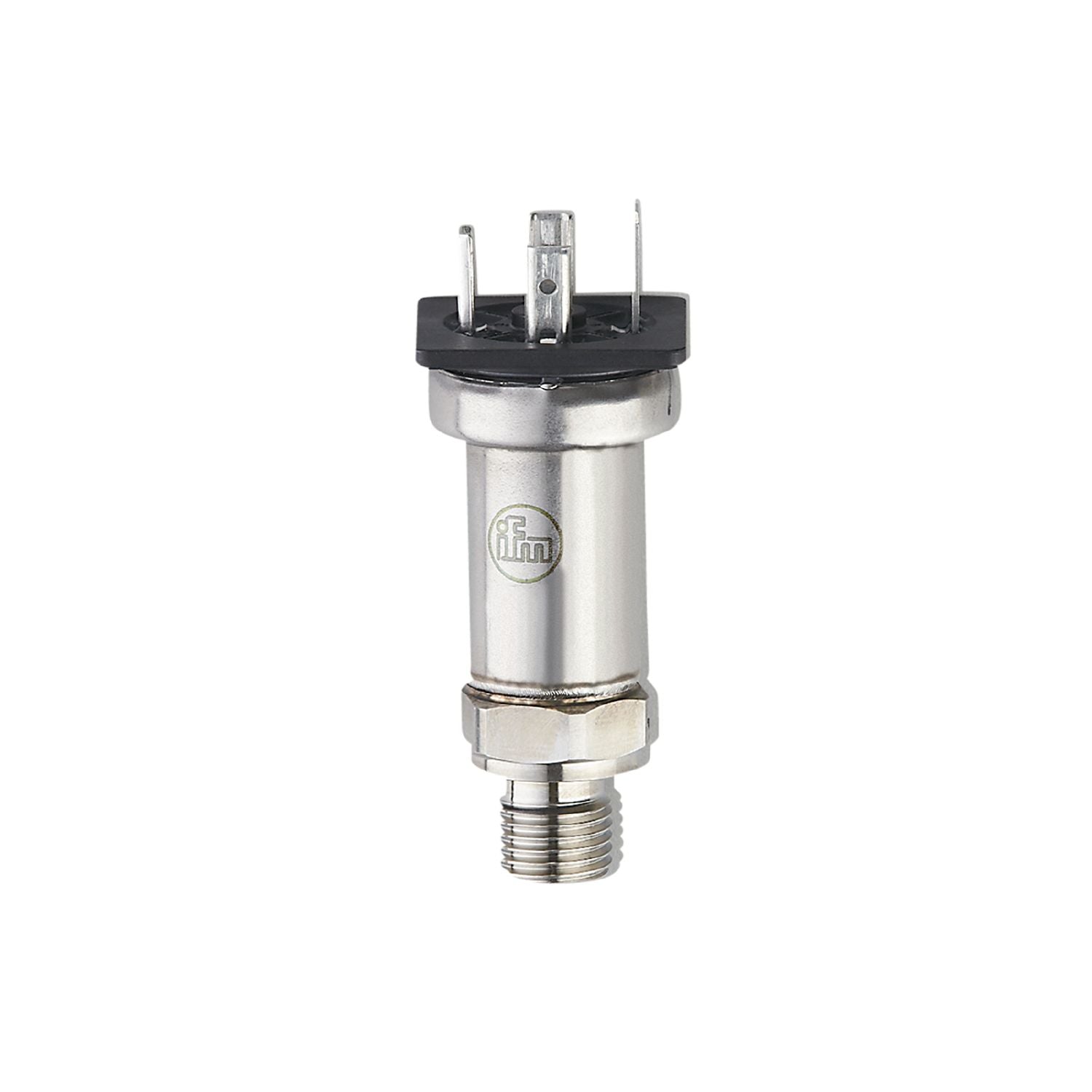

IFM PT5023 - Pressure transmitter PT-060-SEG14-A-ZVG/VE

Reliable detection of system pressure in industrial and mobile applications.
High shock and vibration resistance.
Excellent repeatability and low linearity error.
Lifespan of more than 60 million pressure cycles.
Compact and robust stainless steel housing for use where space is restricted

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	0...60 bar 0...870 psi 0...6 MPa
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Measuring element	metallic thin film cell
Application	for mobile applications; for industrial applications
Media	liquids and gases
Medium temperature [°C]	-40...125
Min. bursting pressure	900 bar 13050 psi 90 MPa
Pressure rating	150 bar 2175 psi 15 Mpa
Note on pressure rating	static
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure

Operating voltage [V]	8...36 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.1

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	(Ub - 8 V) / 21,5 mA ; @8V= 0 Ω ; @12V max. 200 Ω: @24V max. 750 Ω
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range	0...60 bar 0...870 psi 0...6 MPa

Accuracy / deviations

Repeatability [% of the span]	< ± 0,05;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5;(incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]	< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]	< ± 0,2
Long-term stability [% of the span]	< ± 0,1;(per 6 months)
Temperature coefficient zero point [% of the span / 10 K]	< ± 0,1 (0...80 °C); < ± 0,2 (-40...0 °C / 80...125 °C)
Temperature coefficient span [% of the span / 10 K]	< ± 0,1 (0...80 °C); < ± 0,2 (-40...0 °C / 80...125 °C)

Response times

Step response time analogue output [ms]	2

Operating conditions

Ambient temperature [°C]	-40...100
Storage temperature [°C]	-40...100
Protection	IP 67

Tests / approvals

EMC	Compliant with ECE R 10, rev. 5 (E1 compliant) DIN EN ISO 13766-1 : 2018 earthworks and construction machines DIN EN ISO 14982 : 2009 agricultural and forestry machines ISO 11452-2 100 V/m ISO 7637-2 : 2011 pulse 1 Test severity III. function state C ISO 7637-2 : 2011 pulse 2b test severity IV. function state C DIN EN 61326-1
Shock resistance	DIN EN 60068-2-27 500 g (1 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	715
UL approval	UL Approval no. J032 File number UL E174189
Pressure Equipment Directive	Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	67
Materials	1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PPS
Materials (wetted parts)	1.4542 (17-4 PH / 630); stainless steel (1.4305 / 303)
Min. pressure cycles	60 million;(at 1.2 times nominal pressure)
Tightening torque [Nm]	25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Process connection sealing	FKM (DIN EN ISO 1179-2)
Restrictor element integrated	yes

Remarks	BFSL = Best Fit Straight Line LS = limit value setting
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x valve plug type A DIN (EN175301-803-A)

Diagrams and graphs

characteristic load curve of current output	1: Max. load 2: min. load

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PT5023-00 — 13.04.2023 —
