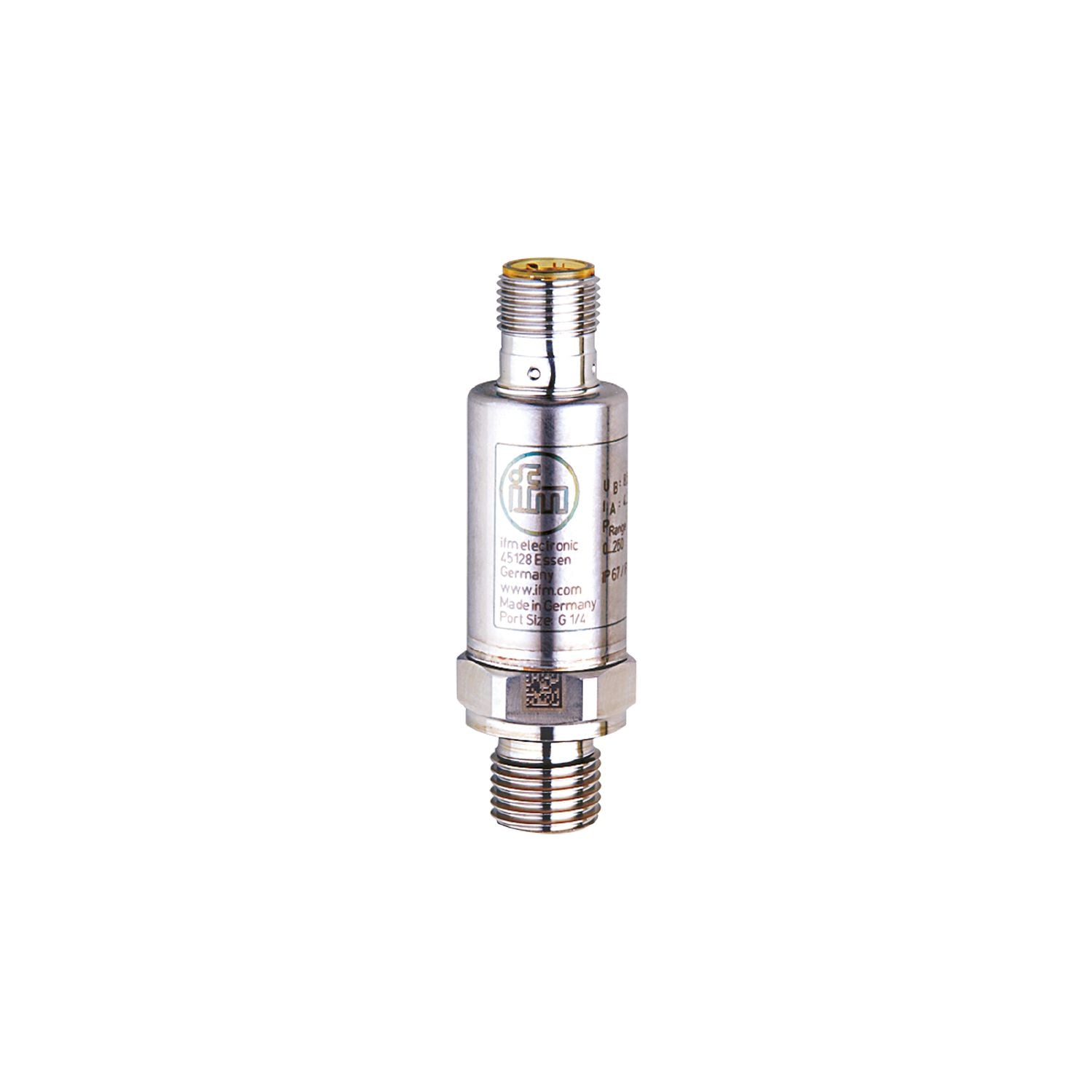

IFM PT5460 - Pressure transmitter PT-600-SEG14-A-ZVG/US/ /W

Reliable detection of system pressure in industrial applications.
High shock and vibration resistance.
Excellent repeatability and low linearity error.
Lifespan of more than 60 million pressure cycles.
Compact and robust stainless steel housing for use where space is restricted

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	0...600 bar 0...8700 psi 0...60 MPa
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2)

Application	for industrial applications
Media	liquids and gases
Medium temperature [°C]	-40...90
Min. bursting pressure	2500 bar 36255 psi 250 MPa
Pressure rating	1500 bar 21755 psi 150 Mpa
Note on pressure rating	static
Vacuum resistance [mbar]	-1000
Type of pressure	relative pressure

Operating voltage [V]	8.5...36 DC
Min. insulation resistance [MΩ]	100;(500 V DC)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	< 0.1

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	(Ub – 8,5 V) / 21,5 mA; @8,5V= 0 Ω; @12V max. 160 Ω; @24V max. 720 Ω
Short-circuit proof	yes
Overload protection	yes

Measuring/setting range

Measuring range	0...600 bar 0...8700 psi 0...60 MPa

Accuracy / deviations

Repeatability [% of the span]	< ± 0,05;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]	< ± 0,5;(incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]	< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]	< ± 0,2
Long-term stability [% of the span]	< ± 0,1;(per 6 months)
Temperature coefficient zero point and span [% of the span / 10 K]	< 0,1 (-25...90 °C) / < 0,2 (-40...-25 °C)

Response times

Step response time analogue output [ms]	1

Operating conditions

Ambient temperature [°C]	-40...90
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	784
UL approval	UL Approval no. J026 File number UL E174189
Pressure Equipment Directive	Modul A; can be used for group 2 fluids; group 1 fluids on request

Weight [g]	59.5
Materials	1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PEI
Materials (wetted parts)	1.4542 (17-4 PH / 630)
Min. pressure cycles	60 million;(at 1.2 times nominal pressure)
Tightening torque [Nm]	30...50;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection	threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Process connection sealing	FKM (DIN EN ISO 1179-2)
Restrictor element integrated	no (can be retrofitted)

Remarks	BFSL = Best Fit Straight Line LS = limit value setting
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
