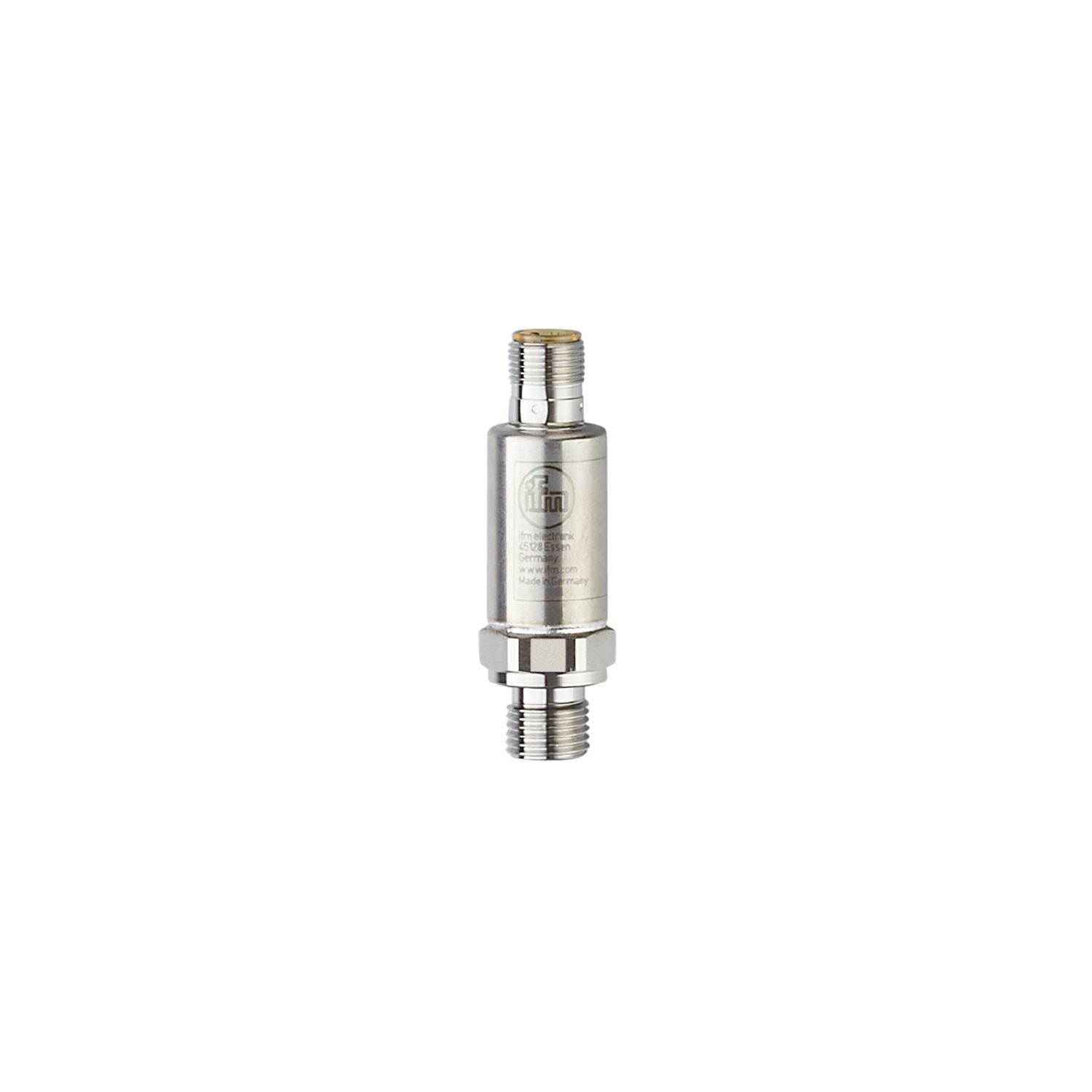

Reliable detection of system pressure in industrial applications. High shock and vibration resistance. Excellent repeatability and low linearity error. Lifespan of more than 60 million pressure cycles. Compact and robust stainless steel housing for use where space is restricted
Number of inputs and outputs
Number of analogue outputs: 1
Measuring range
0...400 bar
0...5800 psi
0...40 MPa
Process connection
threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Application
for industrial applications
Media
liquids and gases
Medium temperature [°C]
-40...90
Min. bursting pressure
1700 bar
24655 psi
170 MPa
Pressure rating
1000 bar
14500 psi
100 Mpa
Note on pressure rating
static
Vacuum resistance [mbar]
-1000
Type of pressure
relative pressure
Operating voltage [V]
16...36 DC
Current consumption [mA]
< 12
Min. insulation resistance [MΩ]
100;(500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 0.1
Inputs / outputs
Number of inputs and outputs
Number of analogue outputs: 1
Outputs
Total number of outputs
1
Output signal
analogue signal
Number of analogue outputs
1
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
2000
Short-circuit proof
yes
Overload protection
yes
Measuring/setting range
Measuring range
0...400 bar
0...5800 psi
0...40 MPa
Accuracy / deviations
Repeatability [% of the span]
< ± 0,05;(with temperature fluctuations < 10 K)
Characteristics deviation [% of the span]
< ± 0,5;(incl. drift when overtightened, zero point and span error, non-linearity, hysteresis)
Linearity deviation [% of the span]
< ± 0,1 (BFSL) / < ± 0,2 (LS)
Hysteresis deviation [% of the span]
< ± 0,2
Long-term stability [% of the span]
< ± 0,1;(per 6 months)
Temperature coefficient zero point and span [% of the span / 10 K]
< ± 0,1 (-25...90 °C) / < ± 0,2 (-40...-25 °C)
Response times
Step response time analogue output [ms]
1
Operating conditions
Ambient temperature [°C]
-40...90
Storage temperature [°C]
-40...100
Protection
IP 67; IP 69K
Tests / approvals
EMC
DIN EN 61000-6-2
DIN EN 61000-6-3
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
762
UL approval
UL Approval no.
J030
Pressure Equipment Directive
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
25...35;(recommended tightening torque; depends on lubrication, seal and pressure rating)
Process connection
threaded connection G 1/4 external thread (DIN EN ISO 1179-2)
Process connection sealing
FKM (DIN EN ISO 1179-2)
Restrictor element integrated
no (can be retrofitted)
Remarks
BFSL = Best Fit Straight Line
LS = limit value setting
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — PU5400-01 — 13.04.2023 —
