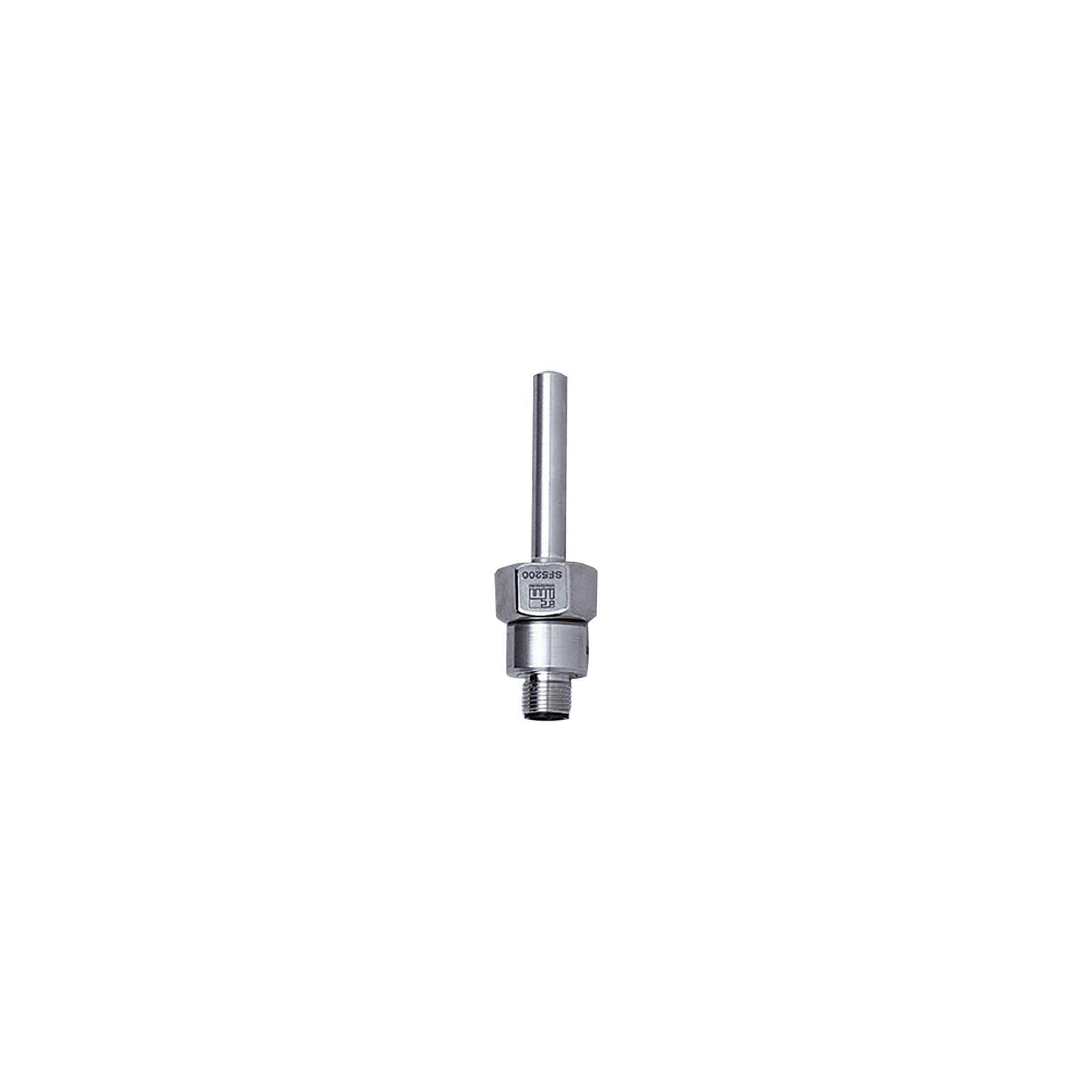

IFM SF5200 - Flow sensor for connection to an evaluation unit SFD10ADB /US-100

Reliable monitoring of liquids and gases in pipes.
For connection to an evaluation unit.
Simple process connection via adapter.
Very high pressure rating.
M12 connector for fast and easy connection

Probe length L [mm]	45
Process connection	M18 x 1,5 internal thread

Application	high-temperature range
Media	Liquids; Gases
Medium temperature [°C]	-25...80
Pressure rating [bar]	300

Connection to control monitor	VS3000

Measuring/setting range

Probe length L [mm]	45

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...60

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Temperature gradient [K/min]	300

Response times

Response time [s]	1...10

Operating conditions

Protection	IP 67

Tests / approvals

Shock resistance	DIN IEC 68-2-27 40 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 10 g (55...2000 Hz)
MTTF [years]	8213

Weight [g]	88.5
Housing	for adapter
Dimensions [mm]	M18 x 1.5
Thread designation	M18 x 1.5
Materials	stainless steel (1.4404 / 316L)
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A
Process connection	M18 x 1,5 internal thread

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Maximum cable length: 100 m
