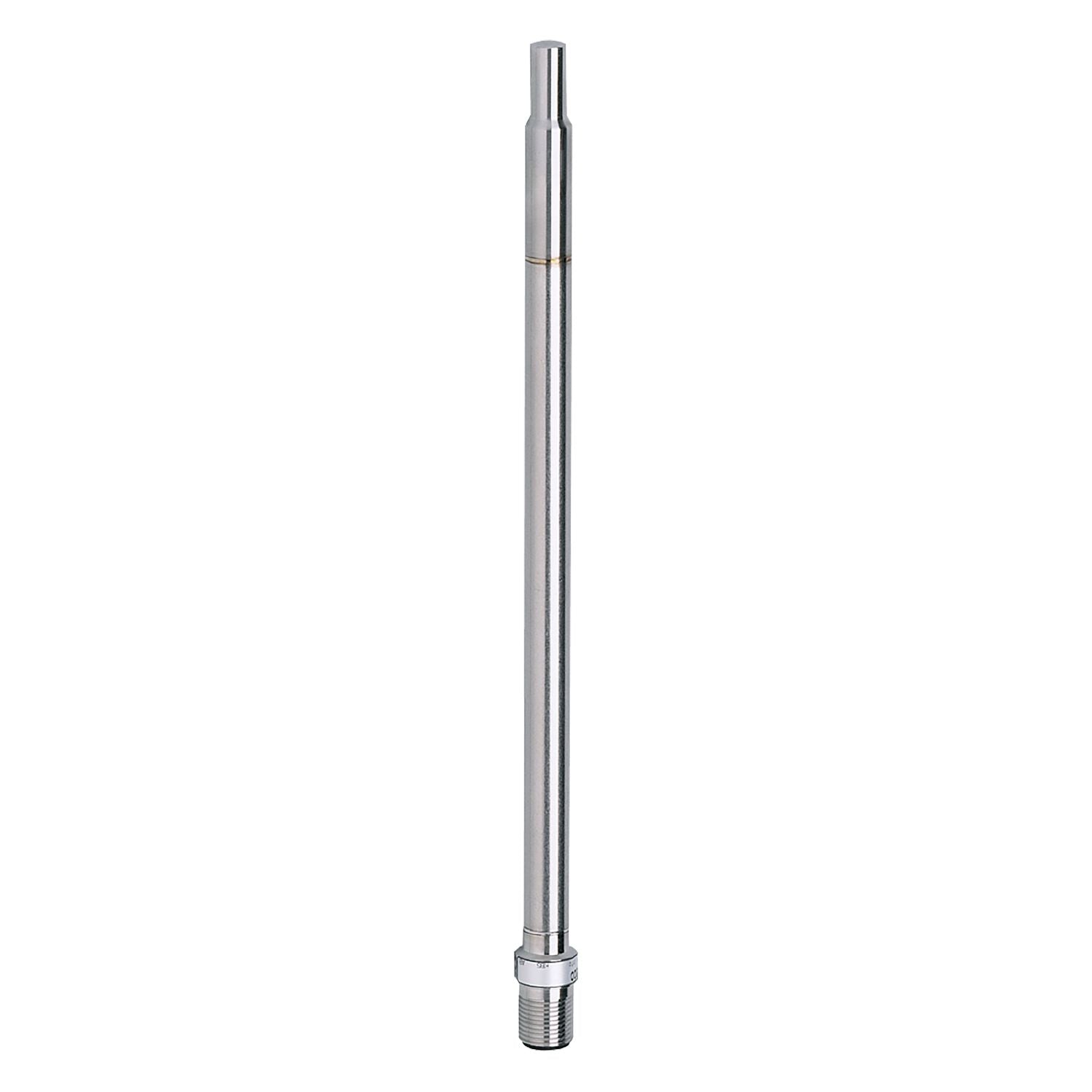

IFM SF6200 - Flow sensor for connection to an evaluation unit SFG10ABB /US-100

Reliable monitoring of liquids and gases in pipes.
For connection to an evaluation unit.
Easy adjustment of the immersion depth via clamp adapter.
Robust design for use in harsh industrial environments.
M12 connector for fast and easy connection

Probe length L [mm]	15...156
Process connection	Ø 10 mm

Special feature	Gold-plated contacts
Application	high-temperature range
Installation	sensor suitable for clamp fitting
Media	Liquids; Gases
Medium temperature [°C]	-25...80
Pressure rating [bar]	30

Application	high-temperature range
Installation	sensor suitable for clamp fitting
Medium temperature [°C]	-25...80

Medium temperature [°C]	-25...80

Connection to control monitor	VS3000

Measuring/setting range

Probe length L [mm]	15...156

Setting range [cm/s]	3...300
Greatest sensitivity [cm/s]	3...60

Setting range [cm/s]	200...3000
Greatest sensitivity [cm/s]	200...800

Accuracy / deviations

Temperature gradient [K/min]	30

Response times

Response time [s]	1...10

Response time [s]	1...10

Response time [s]	1...10

Operating conditions

Protection	IP 67

Tests / approvals

Shock resistance	DIN IEC 68-2-27 40 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 10 g (55...2000 Hz)
MTTF [years]	8583

Weight [g]	89
Dimensions [mm]	Ø 10
Materials	stainless steel (1.4404 / 316L) several parts, welded
Materials (wetted parts)	stainless steel (1.4404 / 316L) several parts, welded
Process connection	Ø 10 mm

Accessories

Accessories (optional)	Clamp adapter: R 1/2, E40160 Clamp adapter: 1/2" NPT, E40174

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated; Maximum cable length: 100 m

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — SF6200-00 — 05.11.2020 —
