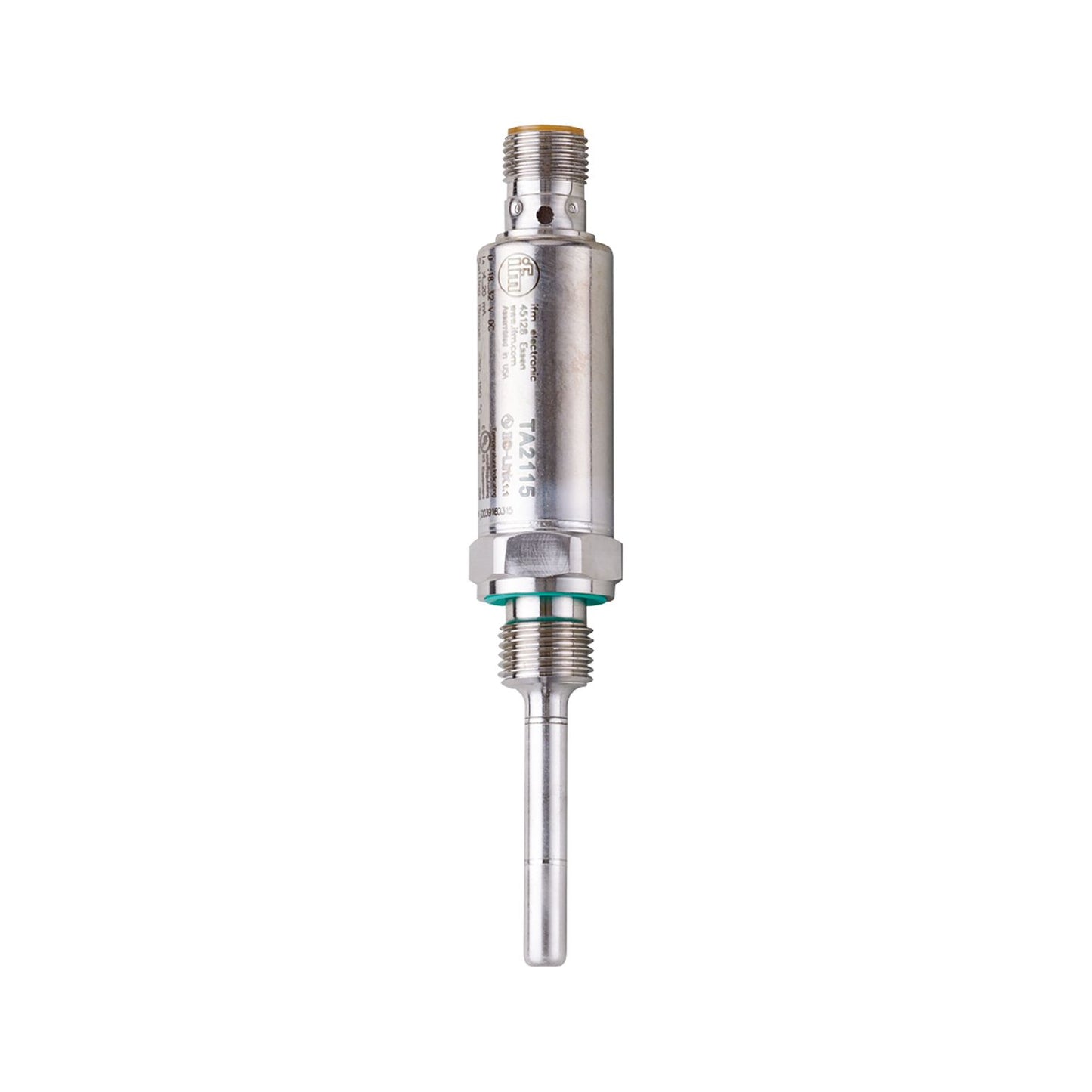

IFM TA2115 - Temperature transmitter TA-050CLER14-A-ZVG/US

High precision across the entire temperature measurement range.
Particularly good response dynamics and very short power-on delay time.
Robust stainless steel housing with very high pressure rating.
High protection rating for the requirements of harsh industrial environments

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range [°C]	-50...150
Communication interface	IO-Link
Process connection	threaded connection G 1/4
Installation length EL [mm]	50

Special feature	Gold-plated contacts
Measuring element	1 x Pt 1000;(to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	400
Note on pressure rating	sensor When mounted in adapters the specifications of the adapter data sheet apply.

Operating voltage [V]	18...32 DC;("supply class 2" to cULus)
Current consumption [mA]	< 50
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	1

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal; IO-Link;(configurable)
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	250;((18...19 V); 19...32 V: 300 Ω)
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring range [°C]	-50...150
Factory setting	-50...150 °C

Resolution of analogue output [K]	0.04

Accuracy / deviations

Precision analogue output [K]	± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]	0,1;(in case of deviation from the reference condition 25 ± 5 °C)

Response times

Dynamic response T05 / T09 [s]	1 / 3

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 67; IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2
Shock resistance	DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance	DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years]	572
UL approval	UL Approval no. K002

Weight [g]	94
Dimensions [mm]	Ø 18.7
Materials	stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); O-ring: FKM
Tightening torque [Nm]	35
Process connection	threaded connection G 1/4
Probe diameter [mm]	6
Installation length EL [mm]	50

Displays / operating elements

Display	operating status 1 x LED, green

Remarks	MS = set measuring span
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
