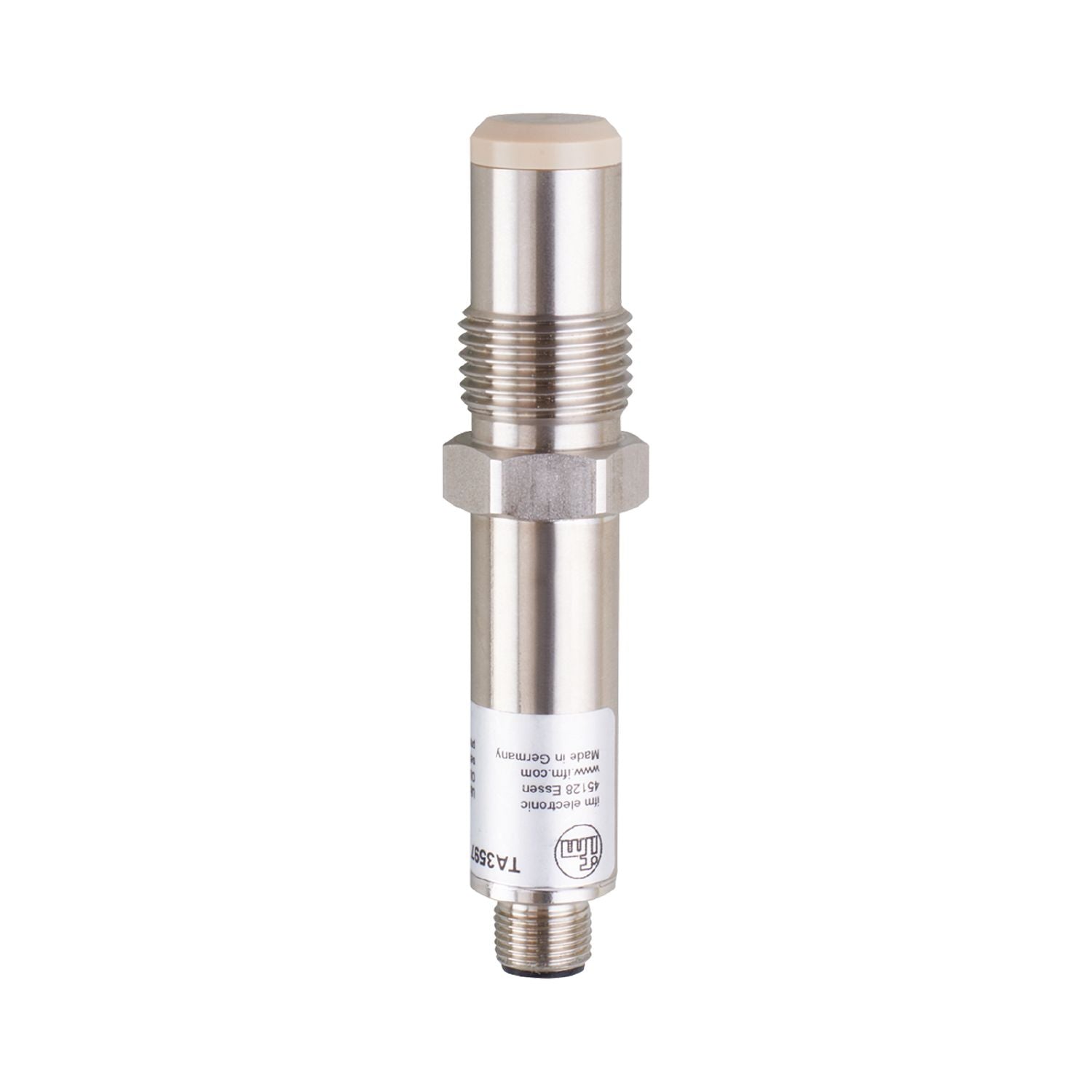

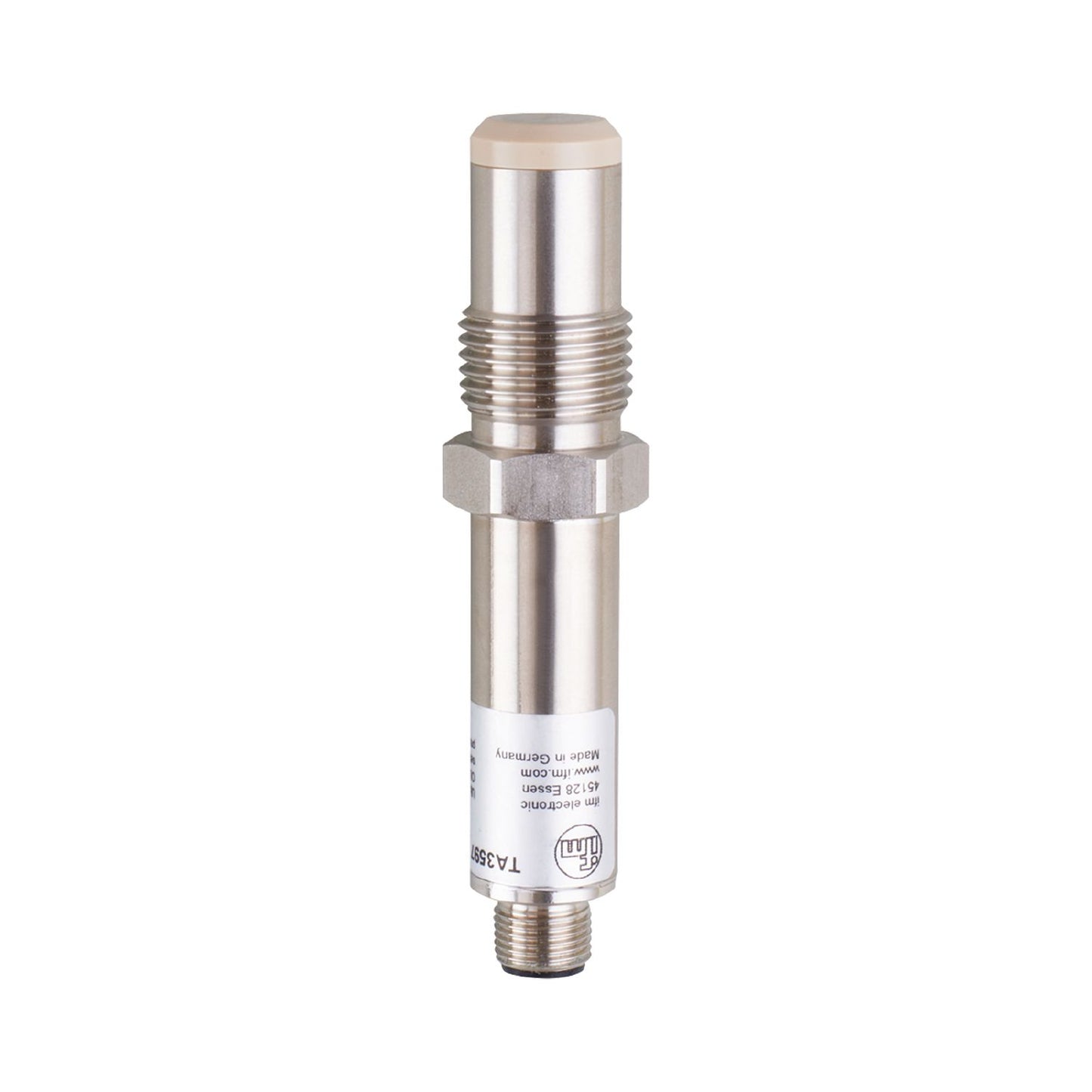

IFM TA3597 - Temperature transmitter TA-000KLER12- /US

Hygienic and robust design.
Particularly space-saving design.
Safe sealing in the process.
Adapters for all standard process connections

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range [°C]	0...100
Process connection	threaded connection G 1/2 sealing cone flush mountable

Special feature	Gold-plated contacts
Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Media	liquids and gases
Medium temperature [°C]	< 100;(< 5 min: 150)
Pressure rating [bar]	16

Operating voltage [V]	18...32 DC
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20

Measuring/setting range

Measuring range [°C]	0...100

Accuracy / deviations

Precision analogue output [K]	± (0,25 K + 0,002 x|t|)
Temperature coefficient [% of the span / 10 K]	0,1

Response times

Dynamic response T05 / T09 [s]	10 / 40;(for water (70 °C; 0,04 m/s))

Operating conditions

Ambient temperature [°C]	-20...70
Storage temperature [°C]	-40...85
Protection	IP 69K;(in conjunction with a corresponding connector)

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3

Weight [g]	146.5
Dimensions [mm]	Ø 18
Materials	stainless steel (1.4404 / 316L); PEEK
Materials (wetted parts)	stainless steel (1.4404 / 316L); PEEK
Tightening torque [Nm]	10
Process connection	threaded connection G 1/2 sealing cone flush mountable
Surface characteristics Ra/Rz of the wetted parts	Ra: < 0.8

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
