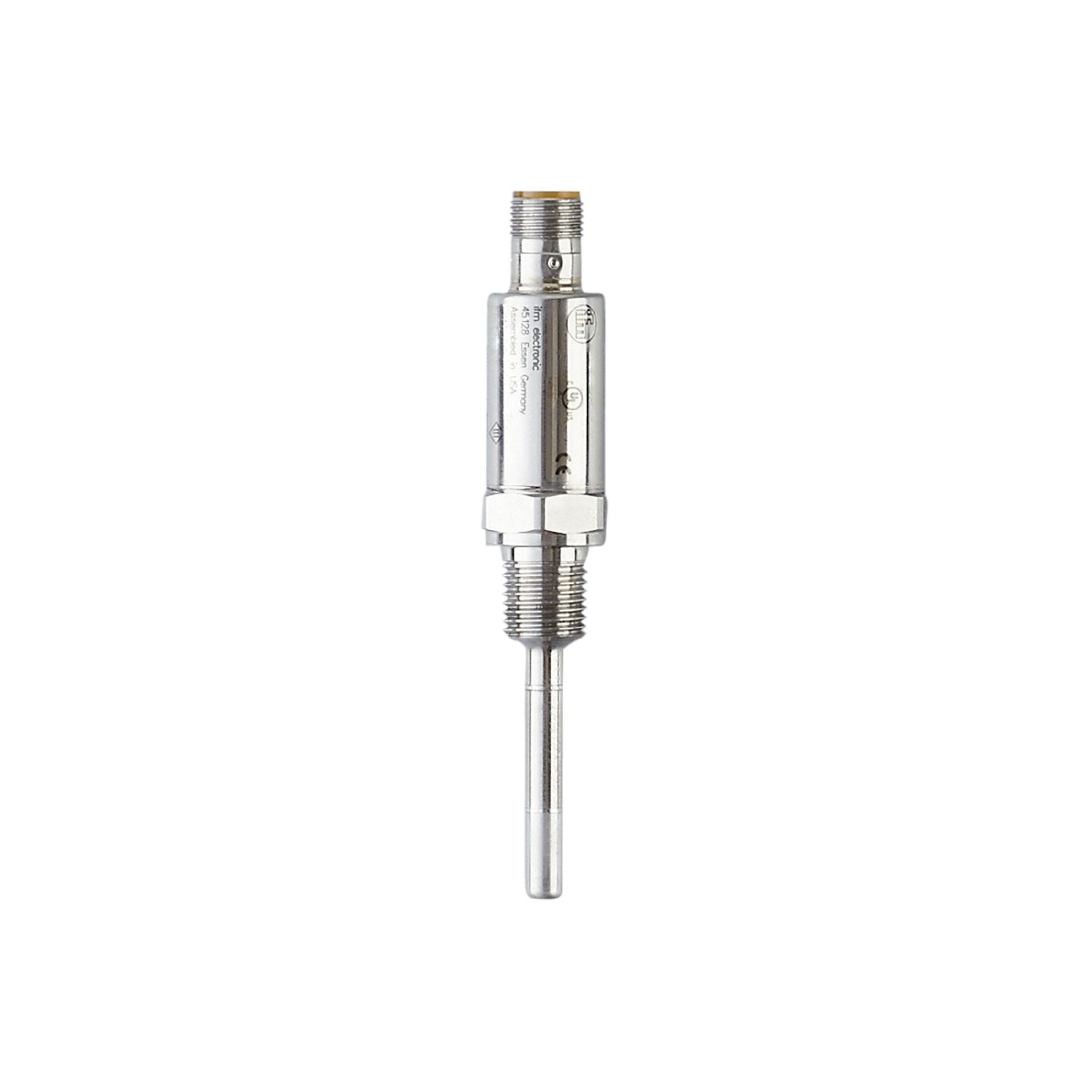

IFM TA3603 - Temperature transmitter TA-025F3EN14-A-ZVG/US

High precision across the entire temperature measurement range.
Wide operating temperature range.
Particularly good response dynamics and very short power-on delay time.
Robust stainless steel housing with very high pressure rating.
High protection rating for the requirements of mobile machines

Number of inputs and outputs	Number of analogue outputs: 1
Measuring range	-18...149 °C 0...300 °F
Process connection	threaded connection 1/4" NPT
Installation length EL [mm]	25

Special feature	Gold-plated contacts
Measuring element	1 x Pt 1000;(to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	400

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analogue outputs: 1

Outputs

Total number of outputs	1
Output signal	analogue signal
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	(Ub - 8,5 V) / 21,5 mA; 24 V: 720 Ω
Short-circuit protection	yes
Overload protection	yes

Measuring/setting range

Measuring range	-18...149 °C 0...300 °F

Resolution of analogue output [K]	0.04

Accuracy / deviations

Precision analogue output [K]	± 0,3 + (± 0,1 % MS)
Temperature coefficient [% of the span / 10 K]	0,1;(in case of deviation from the reference condition 25 ± 5 °C)

Response times

Dynamic response T05 / T09 [s]	1 / 3;(to DIN EN 60751)

Operating conditions

Ambient temperature [°C]	-40...100
Storage temperature [°C]	-40...100
Protection	IP 68; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-2 DIN EN 61000-6-3
Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	1092
UL approval	power supply Class 2 UL Approval no. K005 File number UL E217884

Weight [g]	89.2
Dimensions [mm]	Ø 18.8
Materials	stainless steel (1.4404 / 316L); PEI; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Process connection	threaded connection 1/4" NPT
Probe diameter [mm]	6
Installation length EL [mm]	25

Remarks	The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
