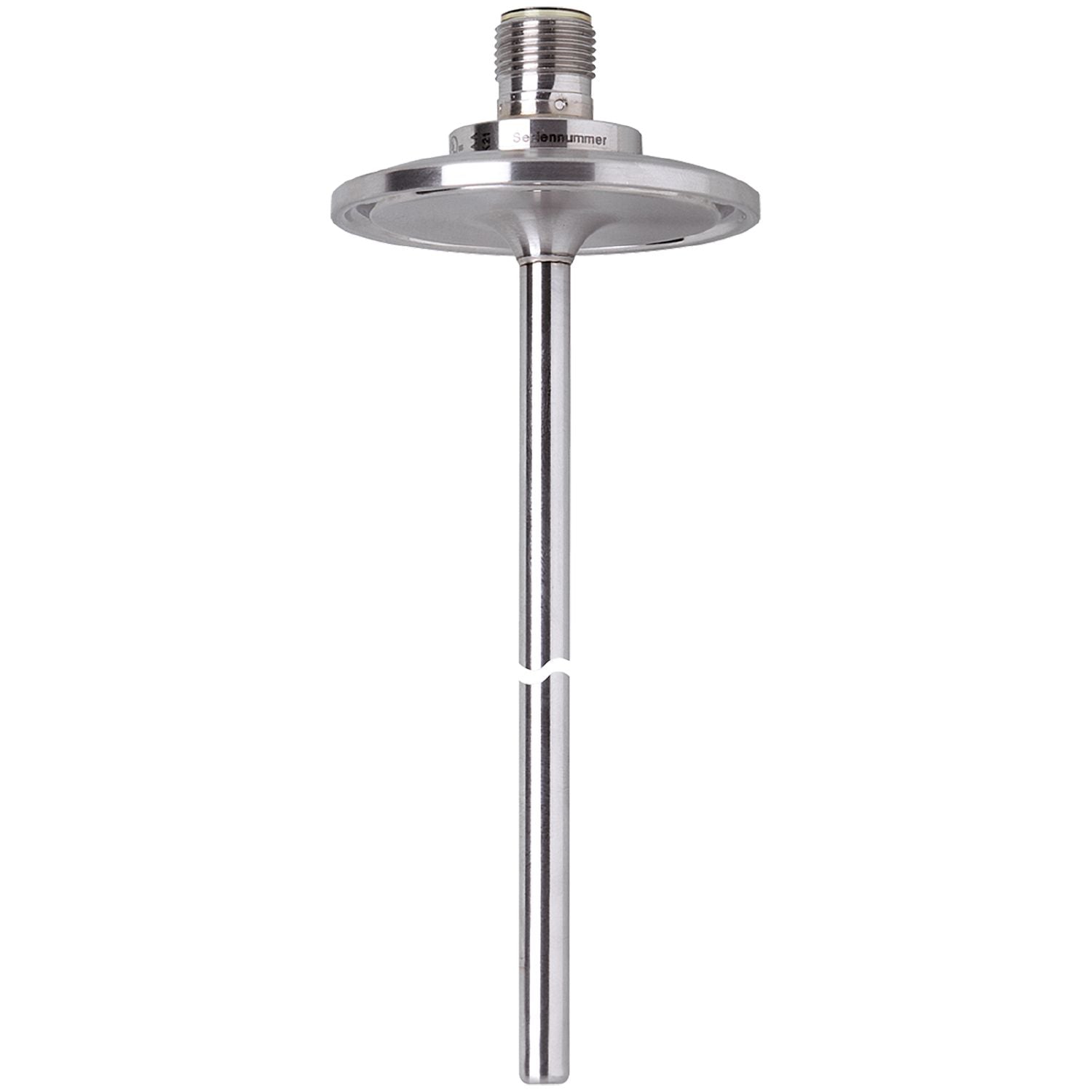

Precise temperature measurement in containers, tanks and pipes. For the connection to an evaluation unit. Very short response time for use in processes with fast temperature fluctuations. Hygienic design for the requirements of the food and beverage industry. Variable process connection using adapters
Measuring range
-40...150 °C
-40...302 °F
Process connection
Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Installation length EL [mm]
50
Special feature
Gold-plated contacts
Measuring element
1 x Pt 100;(to DIN EN 60751, class A)
Application
hygienic systems
Media
liquids and gases
Pressure rating [bar]
25
Minimum installation depth [mm]
15
MAWP (for applications according to CRN) [bar]
50
Protection class
III
Measuring/setting range
Probe length L [mm]
50
Measuring range
-40...150 °C
-40...302 °F
Accuracy / deviations
Accuracy [K]
± (0,15 K + 0,002 x|t|)
Response times
Dynamic response T05 / T09 [s]
1 / 3;(to DIN EN 60751)
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
Shock resistance
DIN EN 60068-2-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
10 g (10...2000 Hz)
MTTF [years]
22831
Weight [g]
184
Materials
stainless steel (1.4404 / 316L)
Materials (wetted parts)
stainless steel (1.4404 / 316L) electropolished
Process connection
Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)
Surface characteristics Ra/Rz of the wetted parts
Ra: < 0.8
Probe diameter [mm]
6
Installation length EL [mm]
50
Remarks
operating voltage "supply class 2" according to cULus
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TM4811-00 — 13.04.2023 —
