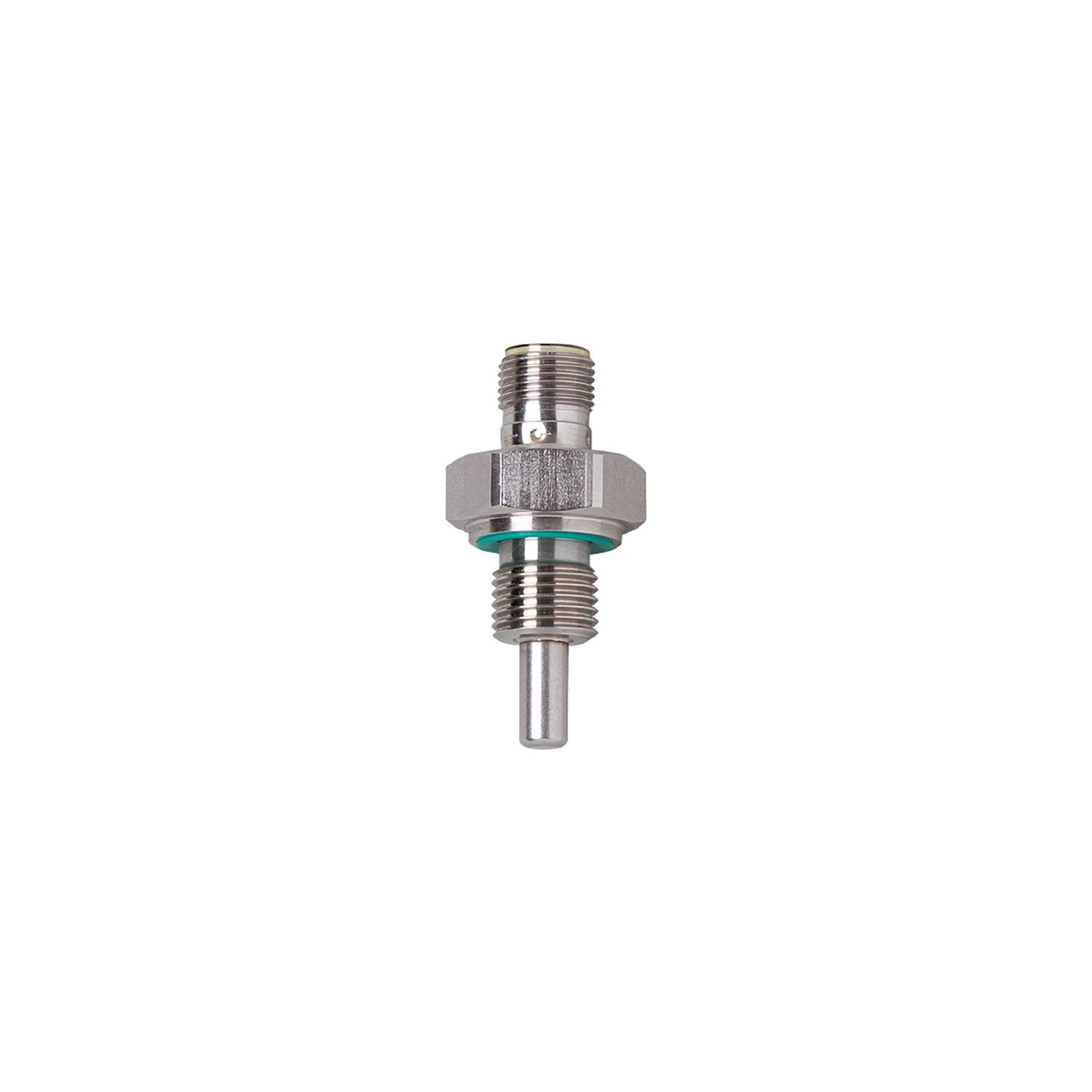

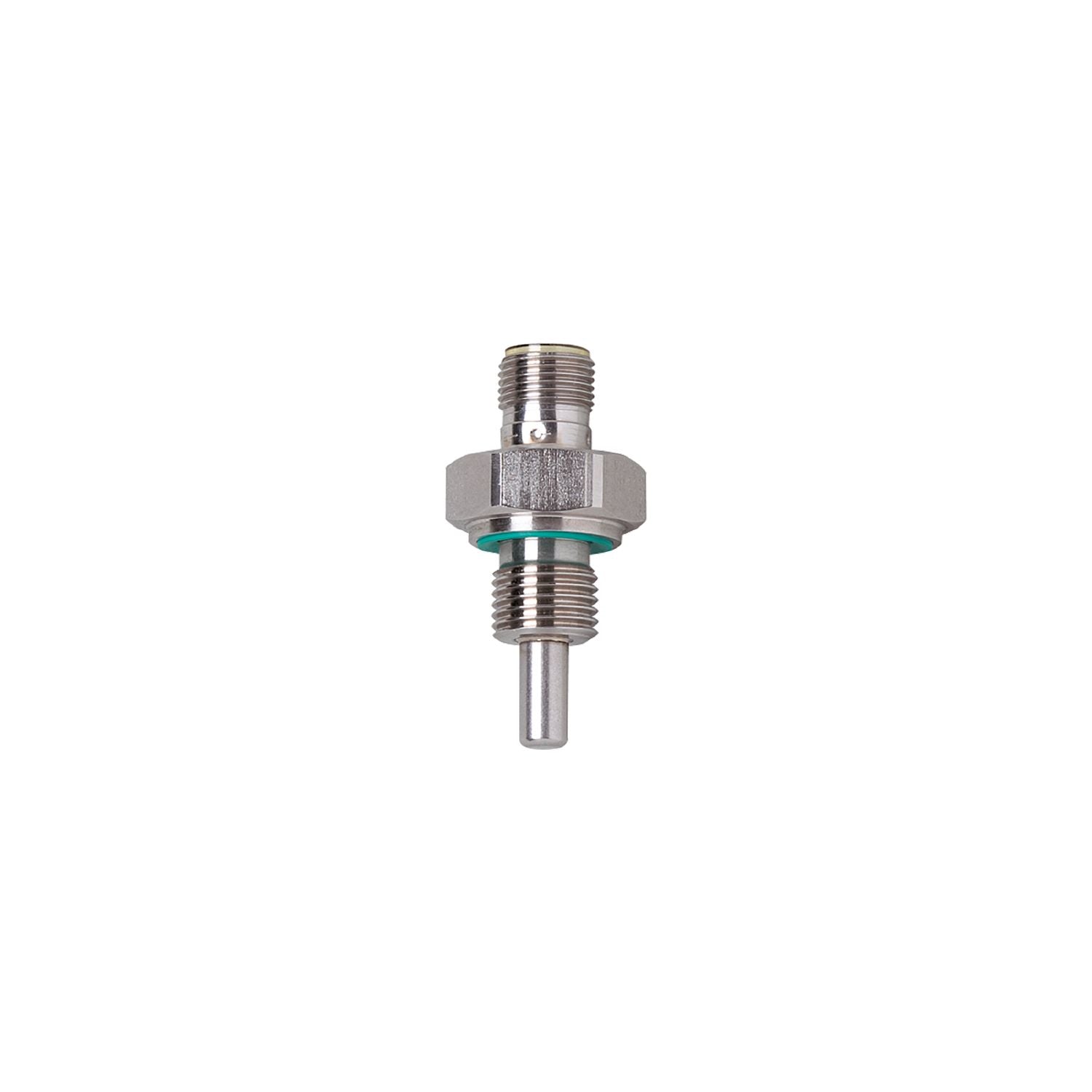

High precision across the entire temperature measurement range. Wide operating temperature range. Particularly good response dynamics and very short power-on delay time. Robust stainless steel housing with very high pressure rating. High protection rating for the requirements of mobile machines
Measuring range
-40...150 °C
-40...302 °F
Process connection
threaded connection G 1/4
Installation length EL [mm]
25
Special feature
Gold-plated contacts
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
400
Protection class
III
Measuring/setting range
Probe length L [mm]
12
Measuring range
-40...150 °C
-40...302 °F
Accuracy / deviations
Accuracy [K]
± (0,15 K + 0,002 x|t|)
Response times
Dynamic response T05 / T09 [s]
1 / 3;(to DIN EN 60751)
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
Shock resistance
DIN EN 60068-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
20 g (10...2000 Hz)
MTTF [years]
22831
UL approval
UL Approval no.
K004
Weight [g]
45.7
Materials
stainless steel (1.4404 / 316L)
Materials (wetted parts)
stainless steel (1.4404 / 316L); FKM
Tightening torque [Nm]
35
Process connection
threaded connection G 1/4
Probe diameter [mm]
6
Installation length EL [mm]
25
Remarks
operating voltage "supply class 2" according to cULus
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — TM5101-00 — 13.04.2023 —
