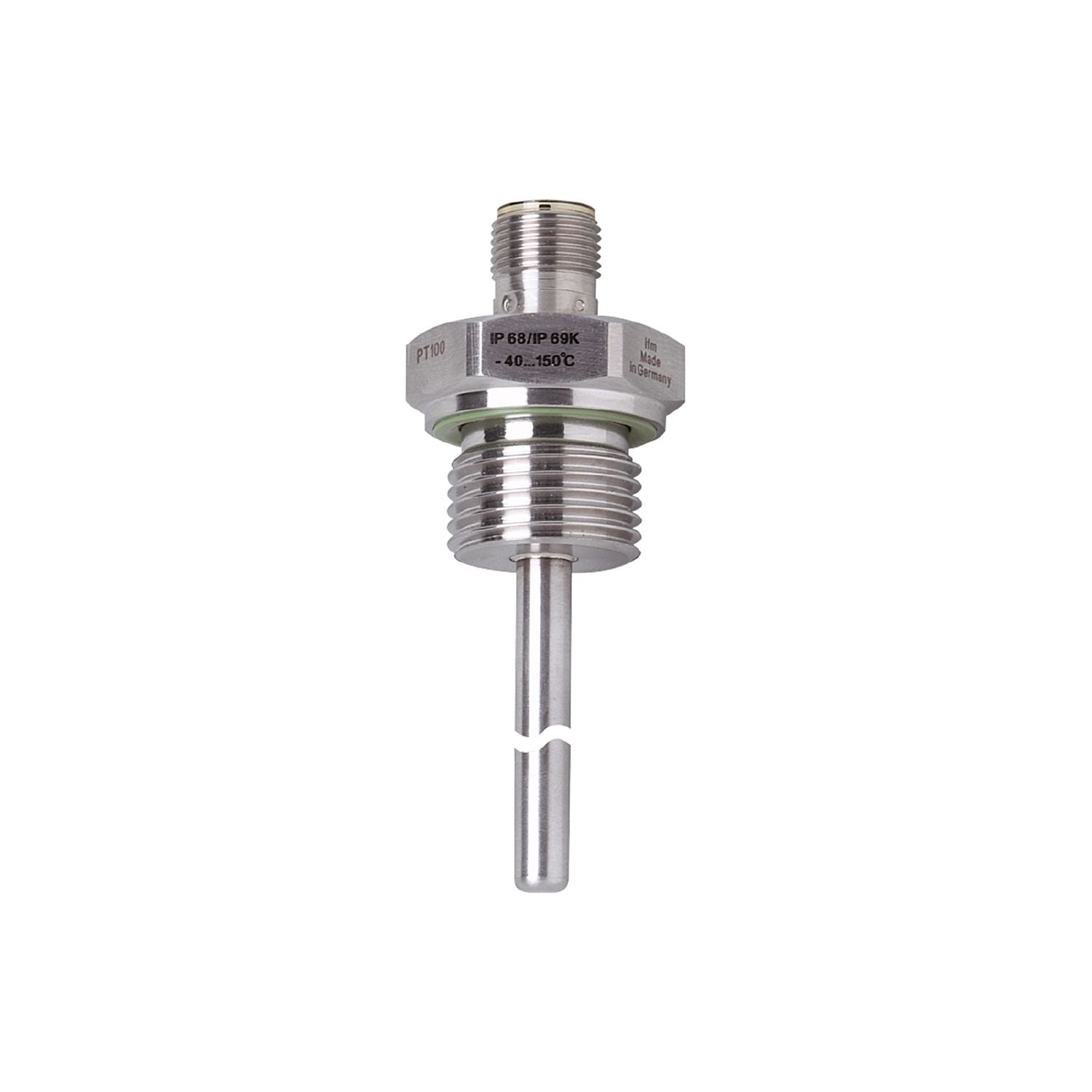

Precise temperature measurement in containers, tanks and pipes. For the connection to an evaluation unit. Very short response time for use in processes with fast temperature fluctuations. Robust stainless steel housing with high protection rating and high pressure rating. Variable process connection using adapters
Measuring range
-40...150 °C
-40...302 °F
Process connection
threaded connection G 1/2
Installation length EL [mm]
50
Special feature
Gold-plated contacts
Measuring element
1 x Pt 1000;(to DIN EN 60751, class A)
Media
liquids and gases
Pressure rating [bar]
160
Minimum installation depth [mm]
15
Protection class
III
Measuring/setting range
Probe length L [mm]
36
Measuring range
-40...150 °C
-40...302 °F
Accuracy / deviations
Accuracy [K]
± (0,15 K + 0,002 x|t|)
Response times
Dynamic response T05 / T09 [s]
1 / 3;(to DIN EN 60751)
Operating conditions
Ambient temperature [°C]
-25...80
Storage temperature [°C]
-40...100
Protection
IP 68; IP 69K
Tests / approvals
Shock resistance
DIN EN 60068-2-2-27
50 g (11 ms)
Vibration resistance
DIN EN 60068-2-6
10 g (10...2000 Hz)
MTTF [years]
22831
UL approval
UL Approval no.
K004
Weight [g]
127.5
Materials
stainless steel (1.4404 / 316L)
Materials (wetted parts)
stainless steel (1.4404 / 316L); FKM
Tightening torque [Nm]
45
Process connection
threaded connection G 1/2
Probe diameter [mm]
6
Installation length EL [mm]
50
Remarks
operating voltage "supply class 2" according to cULus
The values for accuracy apply to flowing water.
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A; Contacts: gold-plated
