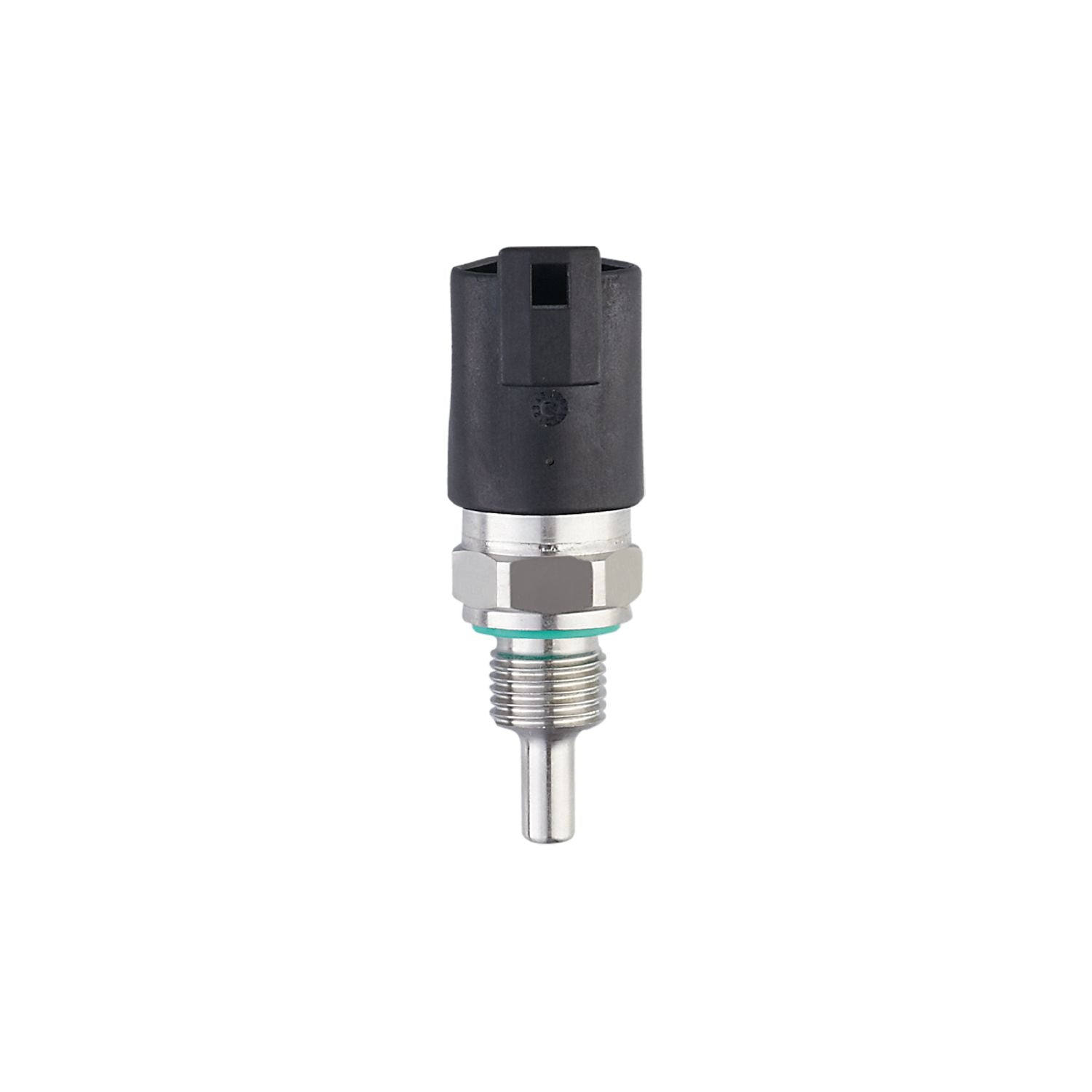

IFM TM6101 - Temperature sensor with process connection TM-025KCBR14- /DE/

High precision across the entire temperature measurement range.
DEUTSCH connector for the fast and easy connection to the on-board system.
Particularly good response dynamics and very short power-on delay time.
Robust stainless steel housing with very high pressure rating.
High protection rating for the requirements of mobile machines

Measuring range	-40...150 °C -40...302 °F
Process connection	threaded connection G 1/4
Installation length EL [mm]	25

Measuring element	1 x Pt 1000;(to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	400

Protection class	III

Measuring/setting range

Probe length L [mm]	12
Measuring range	-40...150 °C -40...302 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	1 / 3;(to DIN EN 60751)

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 68; IP 69K

Tests / approvals

Shock resistance	DIN EN 60068-2-27 50 g (11 ms)
Vibration resistance	DIN EN 60068-2-6 20 g (10...2000 Hz)
MTTF [years]	22831
UL approval	UL Approval no. K017

Weight [g]	82
Materials	stainless steel (1.4404 / 316L); PPS; FKM
Materials (wetted parts)	stainless steel (1.4404 / 316L); Gasket: FKM
Process connection	threaded connection G 1/4
Probe diameter [mm]	6
Installation length EL [mm]	25

Accessories

Items supplied	Gasket

Remarks	operating voltage "supply class 2" according to cULus The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x DEUTSCH connector (DT04-3P)
