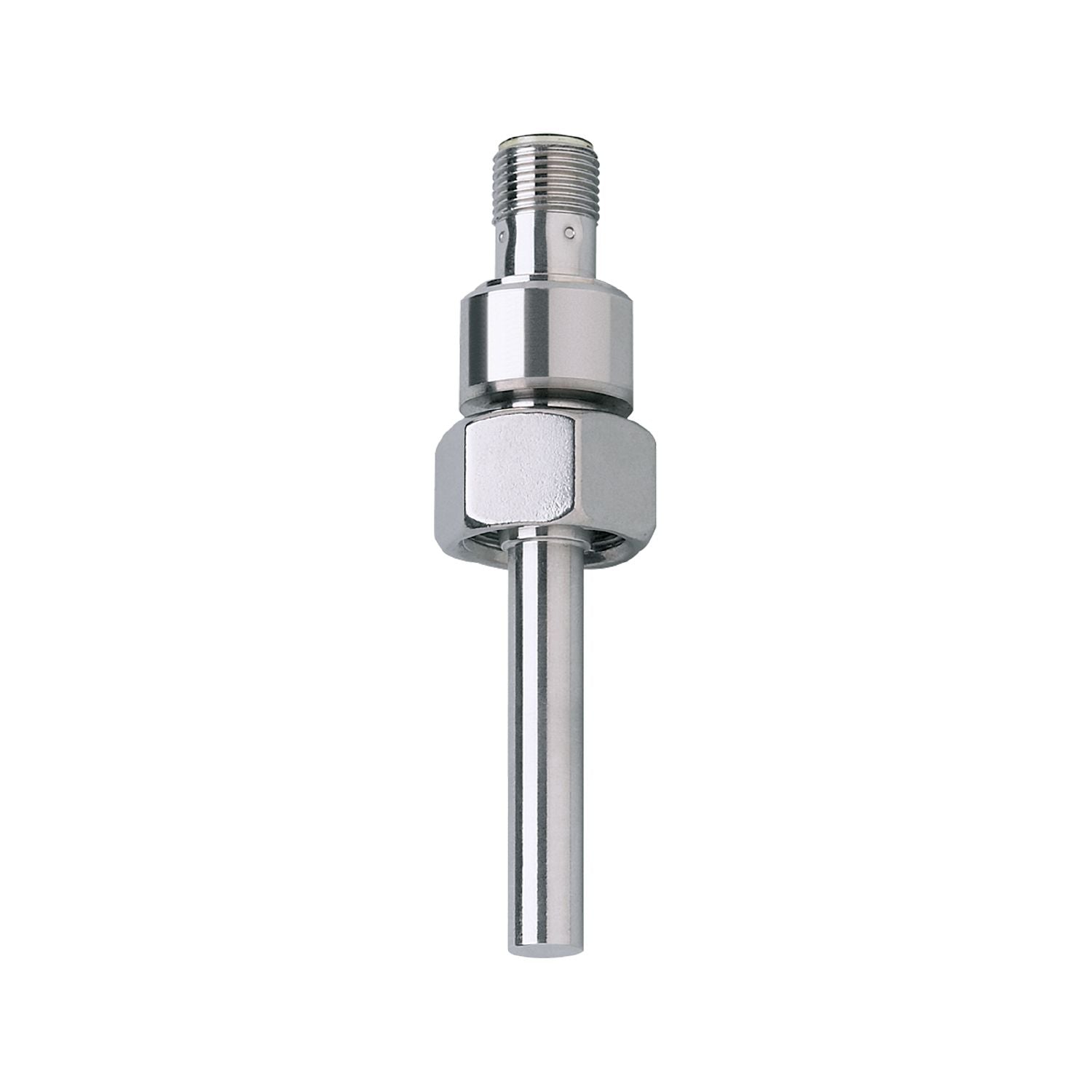

IFM TM9950 - Temperature sensor with process connection TM-045-BEM18 /US

Precise temperature measurement in containers, tanks and pipes.
For the connection to an evaluation unit.
Very short response time for use in processes with fast temperature fluctuations.
Robust stainless steel housing with high protection rating and high pressure rating.
Variable process connection using adapters

Measuring range	-40...125 °C -40...257 °F
Process connection	threaded connection M18 x 1,5 internal thread
Installation length EL [mm]	60

Special feature	Gold-plated contacts
Measuring element	1 x Pt 100;(to DIN EN 60751, class B)
Media	liquids and gases
Pressure rating [bar]	300
Minimum installation depth [mm]	15

Protection class	III

Measuring/setting range

Probe length L [mm]	44
Measuring range	-40...125 °C -40...257 °F

Accuracy / deviations

Accuracy [K]	± (0,30 K + 0,005 x|t|)

Response times

Dynamic response T05 / T09 [s]	1 / 3;(to DIN EN 60751)

Operating conditions

Ambient temperature [°C]	-25...80
Storage temperature [°C]	-40...100
Protection	IP 68; IP 69K

Tests / approvals

MTTF [years]	22831

Weight [g]	81.5
Materials	stainless steel (1.4404 / 316L)
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Process connection	threaded connection M18 x 1,5 internal thread
Probe diameter [mm]	8.2
Installation length EL [mm]	60

Remarks	operating voltage "supply class 2" according to cULus The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
