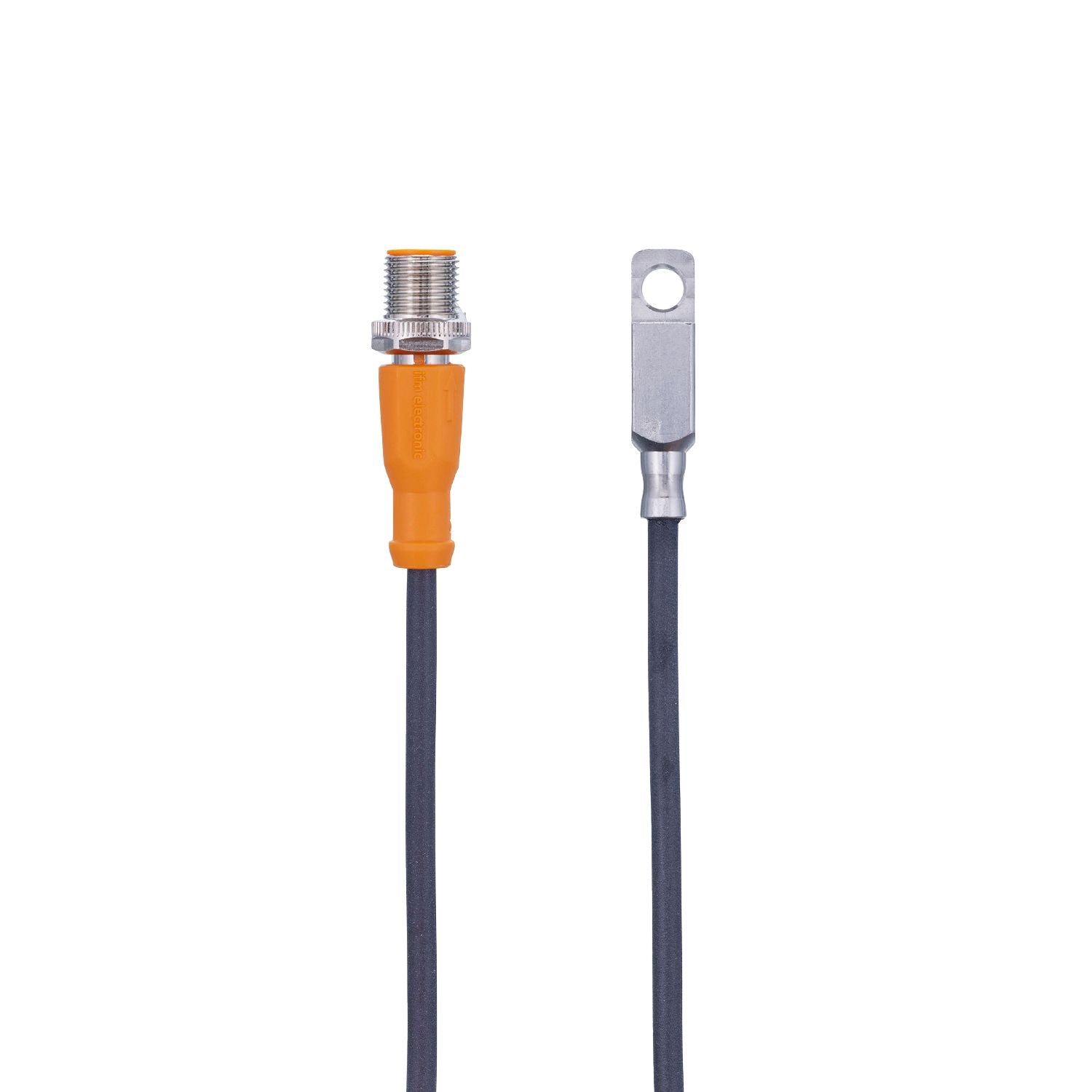

IFM TS1989 - Temperature cable sensor with bolt-on sensor TS-100KLK.../US

Precise temperature measurement on machine surfaces.
For the connection to an evaluation unit.
Compact housing for installation where space is restricted.
High precision across the entire temperature measurement range.
Gold-plated contacts for reliable electrical connections

Measuring range	-40...90 °C -40...194 °F
Process connection	bolt-on sensor 10 x 10 x 42 mm

Special feature	Gold-plated contacts
Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Installation	surface mount RTD for solid bodies

Protection class	III

Measuring/setting range

Measuring range	-40...90 °C -40...194 °F

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	18 / 44

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Weight [g]	67.8
Housing	bolt-on sensor
Dimensions [mm]	10 x 10 x 42
Materials	stainless steel (1.4404 / 316L)
Process connection	bolt-on sensor 10 x 10 x 42 mm

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 1 m, PUR, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
