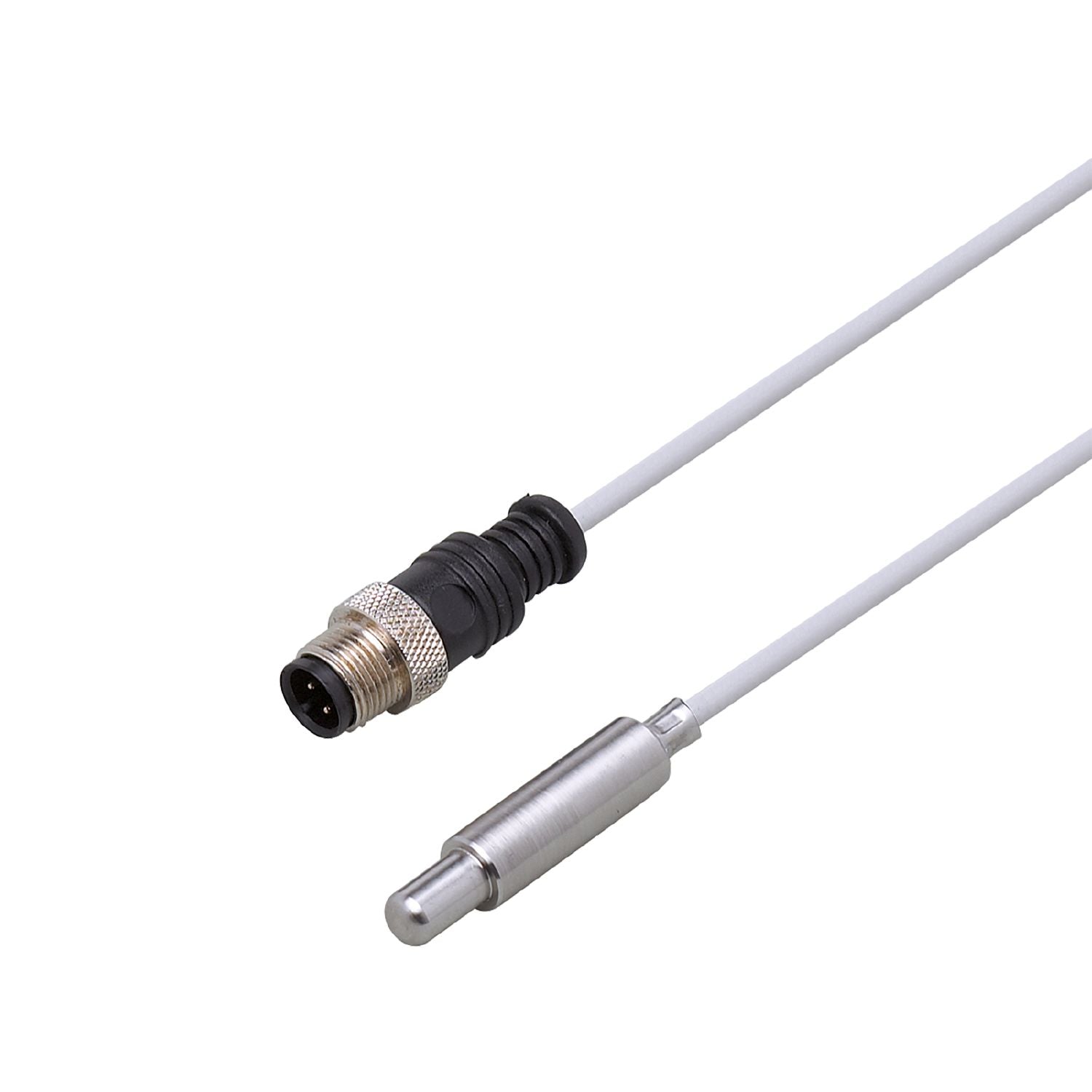

IFM TS2056 - Temperature cable sensor with process connection TS-200KCID10-...../US/

Precise temperature measurement in containers, tanks and pipes.
For the connection to an evaluation unit.
Easy process adaptation via clamp fitting or protective tube.
High precision across the entire temperature measurement range.
Simple and 100% sealed connection via M12 connector

Measuring range	-50...250 °C -58...482 °F
Process connection	Ø 10 mm
Installation length EL [mm]	42

Measuring element	1 x Pt 100;(to DIN EN 60751, class A)
Media	liquids and gases
Pressure rating [bar]	160
Note on pressure rating	for mounting in progressive ring fitting
Minimum installation depth [mm]	15

Protection class	III

Measuring/setting range

Probe length L [mm]	42
Measuring range	-50...250 °C -58...482 °F
Note on measuring range	stationary: 280 °C / 536 °F (10000 h)

Accuracy / deviations

Accuracy [K]	± (0,15 K + 0,002 x|t|)

Response times

Dynamic response T05 / T09 [s]	12 / 39;(to DIN EN 60751)

Operating conditions

Protection	IP 67

Tests / approvals

MTTF [years]	11415.5

Weight [g]	86.6
Dimensions [mm]	Ø 10
Materials	stainless steel (1.4404 / 316L); PFA/PTFE
Materials (wetted parts)	stainless steel (1.4404 / 316L)
Process connection	Ø 10 mm
Probe diameter [mm]	10
Installation length EL [mm]	42

Remarks	The values for accuracy apply to flowing water.
Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PTFE
Connection	Connector: 1 x M12; coding: A
